Ứng dụng rộng rãi cho BGA, CSP, Chip lật, LED, Cầu chì, Diode, PCB, Chất bán dẫn, Ngành pin, Đúc kim loại nhỏ, Mô-đun kết nối điện tử, Cáp, Ngành quang điện, v.v.
Widely applied for BGA , CSP , Flip Chip, LED , Fuse,Diode, PCB, Semiconductor, Battery Industry, Small Metal Casting, Electronic Connector Module, Cables, Photovoltaic Industry, etc.

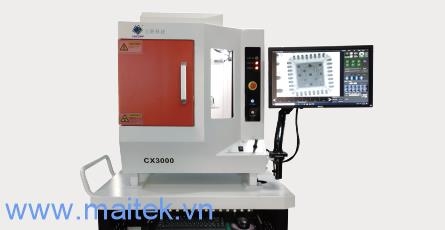

System Summary |
|
Footprint |
1480(W)×750(D)×1680(H)mm |
Machine Weight |
360 kg (excl. desk) |
Power Supply |
AC 110/220V, 50/60Hz |
Plywood Packing Size |
1500(W)×1150(D)×1150(H)mm |
Packing Weight |
560kg (include desk) |
Power Consumption |
0.5 kW |
X-Ray Tube |
|
Tube Type |
Sealed |
Max. Power |
8W |
Voltage |
0~90kV (Adjustable) |
Focus Spot Size |
5μm |
Imaging System |
|
Detector |
Flat Panel Detector (FPD) |
Pixel Size |
49.5μm |
Effective Detection Area |
50*50mm |
Frame Rates |
30fps |
Pixel Matrix |
1176*1104 |
System Magnification |
200X |

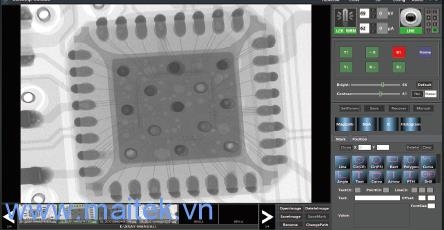

Software |
|
Auto-measuring |
BGA Soldering Voids Auto-measuring and Support Data/Graphic Output |
Multiple Measuring Tools |
Support Measuring Distance, Angle, Diameter, Polygon, PTH filling rate, etc. |
Real-time Display |
Real-time Displaying the Working Data of Voltage, Current, Angle, Date, etc |
Navigation |
Navigation in Visual Windows |
User Friendly |
Easy Operation and User Friendly |
Motion Control System |
|
Movement Control |
Joystick, Keypad & Mouse |
Max. Loading Area/Weight |
235*220mm / 5kg |
Max. Inspection Area |
190*165mm |

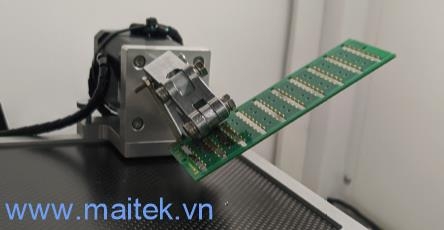

Tilting Angle |
±360° |
Manipulator |
3-axis with X / Y / Z |
Industrial PC |
|
Monitor |
21.5'' FHD LCD Display |
System OS |
Windows 10 64bit |
Hard disk |
1TB |
RAM |
4GB |
CPU model |
Intel i7 Processor |
Other Features |
|
Energy Saving |
X-Ray Auto-off when it's out of work over than 5 minutes |

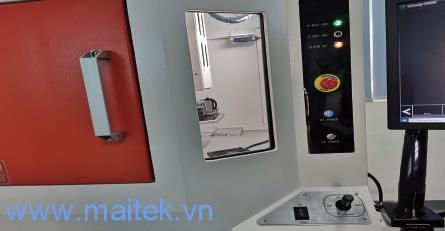

Safety Operation |

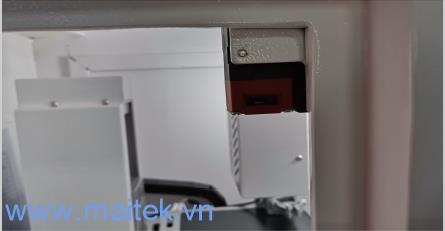

Electromagnetic Interlock and warning Light |
Authority Management |
Password Magnagement |
X-Ray Safety |
<1μSv/h (Meets All International Standards) |
* Specifications are subject to change without notice, All trademarks are the property of the system maker.
