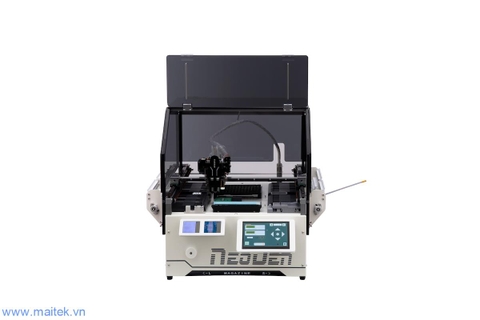

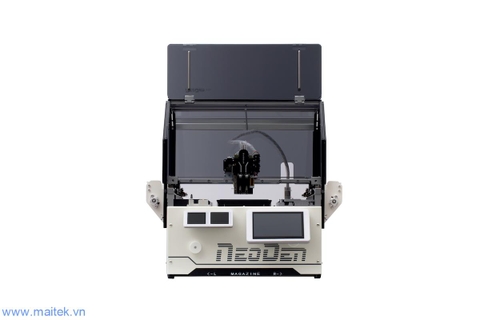

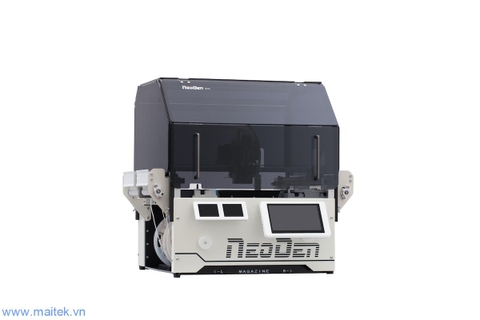

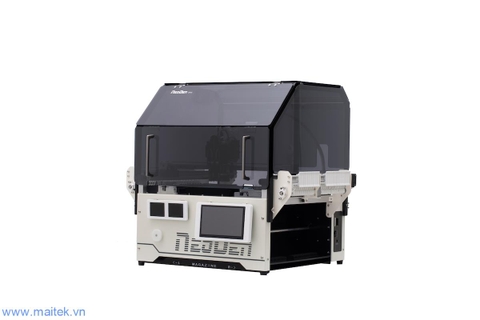

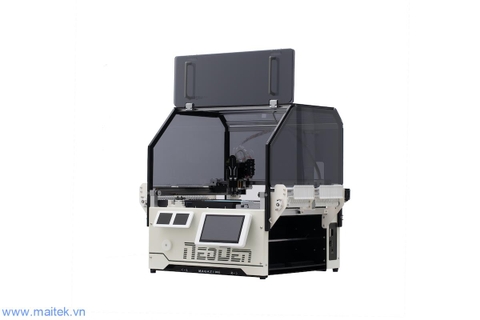

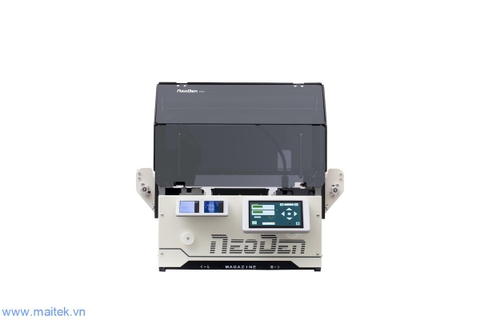

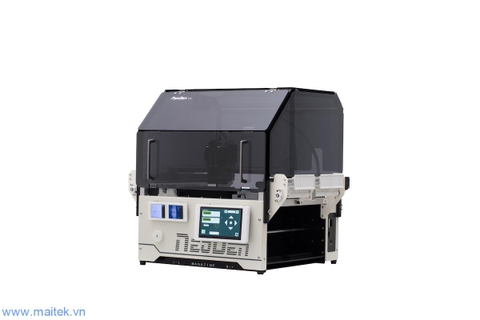

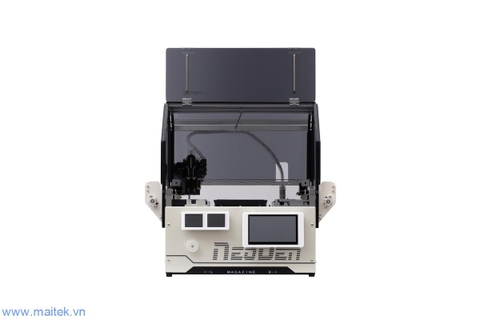

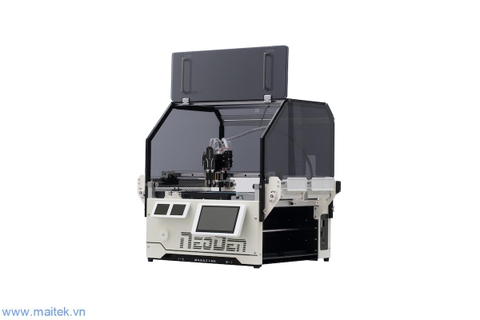

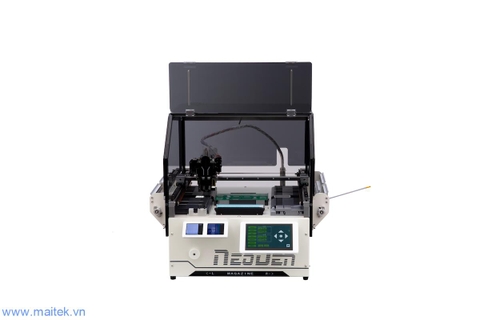

1. NeoDen YY1 pick and place machine automatic nozzle changer help realizing nozzles changed flexibly.
2. Independent high-definition & high-speed dual vision recognition systems, as well as dual cameras for real-time display the working status.
3. NeoDne YY1 supports bulk component feeder, strip feeder and IC tray feeder.
4. Newly designed software system & UI for visual programming and placement, which allows fast programming on the machine, friendly interface & easy operation.
5. Works in a near-perfect silent mode, making it a green and pollution-free pick and place machine.
Small size with powerful magazines and newly designed tape feeders to support large tape reels configur ation flexibly,
easy to install and replace tape reels conveniently.
Brand new patented peeling gadget
It's simple but functional, it’s easy to install and flexible to remove.
Compared with the peelers of TM240A, it doesn't need to collect wasted film.
Compared with the peelers of 3V, it solve the issue of unstability and offset issue.
User friendly touch screen
It comes with a high-definition capacitive touch screen,
which can be adjusted up and down to meet the needs of different viewing angles and enhance the user experiences.
Vacuum detection and real-time display
Equipped with a vacuum detection function, can set standard vacuum detection values on placement head flexibly, all information can be displayed visually on the placement head.
Dual vision system with built-in IC
Independent high-definition & high-speed dual vision recognition systems, as well as two cameras for real-time display the working status, the speed of processing components' photos becomes more efficient and accurate.
Auto nozzle changer
It has 3 slots for nozzles replacement, which realizes maximum optimum of nozzles and achieve higher continuity of production.
|Số đầu hút||02|
|Tốc độ||Bật hệ Vision: 3000 cph / Tắt hệ Vision: 4000 cph|
|Hỗ trợ feeder||52 (8mm) tape feeder, 04 stick feeder, 28 flex feeder, 19 bulk feeder|
|Thay nozzle||Tự động 03 vị trí|
|Hỗ trợ linh kiện||Nhỏ nhất : 0201, Lớn nhất: 18*18mm, Cao nhất: 12mm|
|Xoay||+/- 180 độ|
|Kích thước máy||643x554x601 mm|
