Mô tả ngắn:
NeoDen4--- Máy gắp đặt với hệ thống camera (không điều chỉnh tự động)
Sản phẩm
NeoDen4 là dòng máy mới rất được mong chờ của Neoden, đây là hệ thống máy gắp đặt tự động cùng hệ thống quét ảnh tự động.
Là một nhà thiết kế và phát triển máy PnP chuyên nghiệp, Neoden them gia ngành công nghiệp SMT từ năm 2010. Neoden 4 bao gồm hệ thống camera kép, rails tự động, feeders điện tự động và 4 đầu hút, hỗ trợ tới linh kiện 0201, BGA, QFN, và có khả năng đáp ứng cho LED 0.8m/1.2m/1.5m LED. NeoDen4 là sư lựa chọn hàng đầu bởi độ chính xác cao, tốc độ, sự ổn...
Mô tả ngắn:
Hệ thống X-quang TruView ™ Prime
Hệ thống Xray để bàn mạnh mẽ.
TruView ™ Prime là bằng chứng cho thấy sức mạnh có nhiều kích cỡ. Cho đến nay là thiết bị X-quang để bàn mạnh mẽ và linh hoạt nhất trên thị trường hiện nay, TruView ™ Prime được thiết kế để dễ sử dụng.
Có sẵn trong 3 cấu hình tiêu chuẩn, TruView ™ Prime A là nền tảng cơ bản của chúng tôi có khả năng cho chất lượng hình ảnh đáng kinh ngạc với các yêu cầu đào tạo tối thiểu. TruView ™ Prime A cũng giống như "plug-and-play". TruView ™ Prime R2R là cấu hình reel-to-reel của chúng tôi được thiết kế để tìm kiếm các thành phần giả mạo. Nó nhanh chóng và chính xác. TruView ™ Prime S cung cấp cho bạn một trường nhìn rộng lớn trong...
Mô tả ngắn:
Kích thước nhỏ. Sức mạnh to lớn.
Hệ thống kiểm tra tia X TruView ™ Cube - có kích thước 16 ″ x16 ″ x30 ″ - lý tưởng cho các ứng dụng có không gian làm việc bị hạn chế. Dễ dàng sử dụng và cài đặt, đây là hệ thống linh hoạt và di động nhất trên thị trường hiện nay.
Vì chúng tôi tự phát triển tất cả phần cứng và phần mềm của mình, nên TruView ™ Cube đã được tùy chỉnh cho nhiều ứng dụng. Ví dụ: chúng tôi đã cài đặt một băng chuyền trên đó để chạy mẫu qua máy, chúng tôi đã thêm một robot để di chuyển mẫu vào và ra khỏi máy và chúng tôi đã thêm trí tuệ nhân tạo để tự động xác định xem mẫu có tốt không hoặc tệ. Chúng...
Mô tả ngắn:
Thông số kỹ thuật máy gắp đặt linh kiện NeoDen 3V
Thông tin chung
NeoDen3V là phiên bản nâng cấp của dòng máy TM245P series.
Máy có 2 đầu hút, 46 khe feeder, hệ thống vision, hệ thống đặt PCB linh hoạt, là dòng máy phù hợp cho chế thử, sản xuất vừa và nhỏ với chi phí đầu tư và sản xuất rất hợp lý.
Đặc điểm
2 đầu hút, hệ thống vision
2 đầu hút linh kiện chính xác,...
Mô tả ngắn:
NeoDen4--- Máy gắp đặt với hệ thống camera (rail điều chỉnh tự động)
Sản phẩm
NeoDen4 là dòng máy mới rất được mong chờ của Neoden, đây là hệ thống máy gắp đặt tự động cùng hệ thống quét ảnh tự động.
Là một nhà thiết kế và phát triển máy PnP chuyên nghiệp, Neoden them gia ngành công nghiệp SMT từ năm 2010. Neoden 4 bao gồm hệ thống camera kép, rails tự động, feeders điện tự động và 4 đầu hút, hỗ trợ tới linh kiện 0201, BGA, QFN, và có khả năng đáp ứng cho LED 0.8m/1.2m/1.5m LED. NeoDen4 là sư lựa chọn hàng đầu bởi độ chính xác cao, tốc độ, sự ổn...
Mô tả ngắn:
CLEVER DISPENSE 06 HC DK
The CLEVER DISPENSE 06 HC embodies a professional dispenser for applications that require highest accuracy and a maximum control of material temperature and viscosity. This dispenser allows heating and cooling (temperature control) of the dispensing nozzle and cartridge. The all-electronic dispensers whose dispensing pressure, temperature and retract vacuum are program-controlled rely on time-pressure-technology. This allows reliable dispensing of very small dots and lines of liquid to pasty material either as 1K-type or 2K-type. You can add your own material to the already existing material library to define essential material parameter and limit values. To ensure a stable process, this device set includes a tempering module for the nozzle — an integrated feature of the dispensing head. Optionally, a cartridge tempering module can be attached to the CLEVER DISPENSE 06 HC which allows the material temperature to be adjusted and controlled. Furthermore, a USB...
Mô tả ngắn:
CLEVER DISPENSE 06 H DK
The CLEVER DISPENSE 06 H is a professional dispenser for applications that require highest accuracy and a maximum control of material viscosity. These dispensers allow heating of the dispensing nozzle and cartridge. The fully electronic dispensers whose dispensing pressure, temperature and retract vacuum, are program-controlled, use the volumetric time-pressure-technology. This allows reliable dispensing of very small dots and lines of liquid to pasty material either as 1K-type or 2K-type. You can add your own material to the already existing material library to define essential material parameter and limit values. Nozzle heaters are already integrated in the dispensing heads. Furthermore, the cartridge heater can be attached to the CLEVER DISPENSE 06 H which allows the material temperature to be adjusted and controlled. A USB or a TCP/IP interface is provided for communication between dispenser and process computer.
Product variants in the shop
...
Mô tả ngắn:
CLEVER DISPENSE 06 H DPH
The CLEVER DISPENSE 06 H is a professional dispenser for applications that require highest accuracy and a maximum control of material viscosity. These dispensers allow heating of the dispensing nozzle and cartridge. The CLEVER DISPENSE 06 H DP Sets are designed for manual dispensing operations. The all-electronic dispensers whose dispensing pressure, temperature and retract vacuum are program-controlled use the time-pressure-technology. This allows reliable dispensing of very small dots and lines of liquid to pasty material either as 1K-type or 2K-type. In addition, a sensor measures the material temperature inside the dispensing pen and the control unit compensates the material-specific change in viscosity. You can add your own material to the already existing material library to define essential material parameter and limit values.
Content
Control unit CLEVER DISPENSE 06
Dispensing pen (size of choice) with integrated nozzle heater and connecting...
Mô tả ngắn:
CLEVER DISPENSE 06 H DP
The CLEVER DISPENSE 06 H is a professional dispenser for applications that require highest accuracy and a maximum control of material viscosity. The CLEVER DISPENSE 06 H DP Sets are designed for manual dispensing operations.
The all-electronic dispensers whose dispensing pressure, temperature and retract vacuum are program-controlled rely on time-pressure-technology. This allows reliable dispensing of very small dots and lines of liquid to pasty material either as 1K-type or 2K-type. In addition, a sensor measures the material temperature inside the dispensing pen and the control unit compensates the material-specific change in viscosity. You can add your own material to the already existing material library to define essential material parameter and limit values.
Product variants in the shop
CD06.0101
CLEVER DISPENSE 06 H DP 3...
Mô tả ngắn:
PROFI DISPENSE 06 H
PROFI DISPENSE 06 H are professional dispensing devices equipped with the same technology as the CLEVER DISPENSE 06 H. With their extremely flat housing format and the remote dispensing head these devices are the professional solution to be integrated in automation technology. In application of dispensing technology in mechanical engineering long hoses may occur between dispensing control and dispensing head. To avoid associated disadvantages, the control electronics and dispensing pneumatic (PM 06) of the PROFI DISPENSE 06 are divided into two individual modules. The main benefits include the small dimensions of the control unit and pneumatic module as well as its ability to dispense with accuracy. All application parameter like dispensing pressure, retract vacuum or nozzle- and cartridge temperature are parameterized by the PC or the system control. This provides complete control of the dispensing process. The devices are designed for dispensing small dots...
Mô tả ngắn:
SMART DISPENSE 06 DP
The SMART DISPENSE 06 is a professional dispensing device for manual tasks where high precision and repeat accuracy are essential. It’s easy to switch between and set up the various base parameters. Temperature insulated dispensing pens are available for common cartridge sizes in order to prevent the material from heating up during the dispensing application. Furthermore, 1K material can be processed reliably, whether in liquid or paste form. For materials with a low viscosity, the formation of drops at the dispensing needle is prevented through a retract vacuum.
Product variants in the shop
SD06.0101
SMART DISPENSE 06 DP 3
1 2 3 4 5 6 7 8 9 10 ...
Mô tả ngắn:
EXPERT 10.6 HXV
Rework Station with 5,300 W hybrid under-heating system. The heating area of 450 x 420 mm 2 is adjustable to PCB size. Automated SMD placement process by Auto Vision Placer (AVP) incl. EASYSOLDER 07 software package and DBL 06 control unit with six high resolution sensors inputs for thermocouples (Type K).
This system is particularly suitable for large size PCBs like PCs, Laptops and Server Boards with small up to very big components.
Product variants in the shop
DB00.1066
EXPERT 10.6 HXV
1 2 3 4 5 6 7 8 9 10
x 1
auf Anfrage
...
Mô tả ngắn:
EXPERT 10.6 HV
Rework Station with 3,300W hybrid under heater. The heating area of 275 x 245 mm² is adjustable to PCB size. Automated SMD placement process by Auto Vision Placer (AVP) incl. EASYSOLDER software package and DBL 06 control unit with six high resolution sensors inputs for thermocouples (Type K). This system is particularly suitable for mid-size and large PCBs with fine-pitch components of varying package dimensions.
Product variants in the shop
DB00.1065
EXPERT 10.6 HV
1 2 3 4 5 6 7 8 9 10
x 1
auf Anfrage
Content
Tool set for dispensing, placing,...
Mô tả ngắn:
HOTBEAM 05
The high performing under heater in IR technology. This device is perfectly suitable for hand soldering tasks on mid-size and heavy PCB. The under-heating system can be usedsimply and comfortably in the various operating modes (consistent power, consistent temperature and profile) via the intuitive menu navigation. The innovative heating-management system ensures a reproducible circuit board temperature without overshooting at the highest long-term stability.
The Auto-Profiler feature determines required device settings (profile) automatically for the user. The exact desired circuit board temperature is attained by executing the profile learned automatically by the device. Working processes become safer and more efficient. The IR lamps, which are protected by a glass plate, are independently switchable. This makes cleaning of the hot area easy and simple.Furthermore, the under-heating system can control devices (e.g. for removal by suction) or configure them in such a way that they become activated by...
Mô tả ngắn:
HOTBEAM 04
The HOTBEAM 04 is an extremely compact and efficient under heater. Powered by infrared technology, a 105 x 130 mm² heating area is provided. The under-heating system, which has been tried and tested for many years, was developed for stable, reliable and precise preheating tasks. All operations can be carried out with this device safely and with precision.
Various operating modes, e.g. for consistent power, consistent temperature and profiles, can be operated easily.The Auto-Profiler feature determines required device settings (profile) automatically for the user. The innovative heating-management system guarantees the highest degree of reliability. Furthermore, the under-heating system cancontrol devices (e.g. for removal by suction) or configure them in such a way that they become activated by external devices (SPS or foot switches). The EASYBEAM software allows for the sorting, editing and writing of profiles via a USB connection.
Product variants in the shop...
Mô tả ngắn:
EXPERT 05.6 IXH
The Rework station with 2,000 W heating power in IR technology allows uniform heating over an area of 185 x 245 mm² and prevents mechanical stress due to temperature differences during the process. The high-resolution camera delivers fast, accurate and reproducible placement results. Even the smallest components from a size of 1x1 mm 2 can be repaired and placed. User-friendly handling is provided by the touch-enabled EASYSOLDER 07 software. Reflow profiles with individual temperature parameters can be created, edited and saved and enable high process reliability and repeatable soldering. The Expert 05.6 IXH is a precise, cost-effective solution for the complete rework process on one unit.
Content
Two pens with magazine for soldering, residual solder removal and placing
Solder nozzle 7 mm, BGA soldering tool 27 x 27 mm²
Thermocouple sensor (Type K)
Two PCB magnet holder 40.5mm (standard)...
Mô tả ngắn:

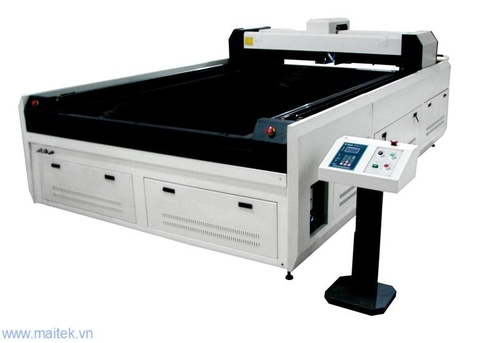

Large CO 2 laser cutting M/C
CO2 laser cutter is suitable for cutting non-metal materials.
It is useful in advertising industry for cutting acrylic, wood, paper, fabric and cotton materials.
Features
• Firm composition guarantees great stability in overall process
• Simple and user-friendly design, easy operation, fast cutting speed, open structure that views working status.
• Available work area 1300mm×2500mm (OR1350mm×2000mm)
• Suitable for wide range of precision cutting of non-metal sheet metal
• Auto focus alignment available. It guarantees the most suitable focus and cutting effect for materials of different thickness
• Fast ventilation with top/bottom multi-ventilators
Technical Data
Laser type
Glass tube CO2 laser
Laser output power
...
Mô tả ngắn:
Non-metal/metal CO 2 laser Cutting M/C
CO2 laser cutting machine is suitable for cutting non-metal materials.
It is useful for cutting acryl, wood, paper, fabric and cotton materials.
Features
Precision cutting for thin metal plate as well as high speed cutting for non-metal solid materials including wood, acryl, 2-color plate, plate cake, etc. It can be used for various purposes. Especially it is suitable for advertising which requires even processing for metal materials. 150W/180W CO2 glass tube is installed for high output, light speed and mass. Also it guarantees well-focused cutting. Stable output, long lifespan and less maintenance cost. Depending on the cutting system type, it selects the best cutting distance which can prevent uneven cutting of different thicknesses. 6.3-inch display measurement control...
Mô tả ngắn:

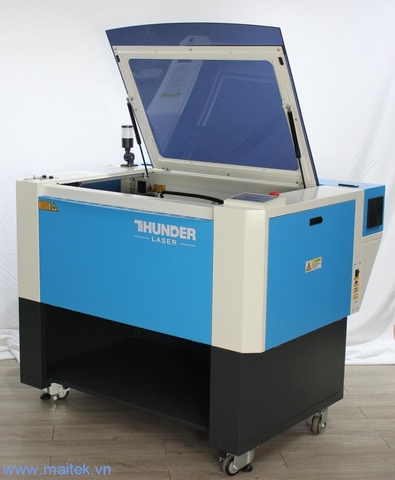

Non-metal CO 2 laser cutting M/C
CO2 laser cutting machine is suitable for cutting non-metal materials.
It is useful for cutting acryl, wood, paper, fabric and cotton materials.
SKL-CUCO2_160100II
• Double head system of double work efficiency
• Online/offline operation mode
• Compatible with various image formats
• Suitable for cutting large area
• Convenient panel control mode
Technical Data
Item
Measurement
Laser type
...
Mô tả ngắn:
Scan head laser welding M/C
It applies high speed digital scan head for fast and precision welding.
Using the exclusive program, it is powerful and easy to use. It is suitable for precision welding of small electronic devices such as mobile phone case and compact motor.
SKL-SW220/SW400/SW600
• High speed scan head applied, great precision
• High speed of 7000mm/sec and high production efficiency
• Great stability
• Easy-to-use and powerful performance
• Compatible with various image formats
...
Mô tả ngắn:
Adv.laser welding M/C
It is suitable for welding advertising billboards.
All-in-one design makes the laser head move freely by controlling the optical path through 2D work station. It is easy and convenient to convert and adjust during welding, its ergonomic design is easy to use and user fatigue is less. This product targets advertising industry for which the optical path is designed with more depth, more elasticity and wider welding range.
SKL-W220/W400
• Ergonomic design, easy operation, less fatigue
• Easy-to-use program, powerful functions
• Smooth welding surface
• Great elasticity of wider welding range
• Suitable for welding various irregular letter designs
• F=200 focus lens, wider welding range available
• Easy to install and operate
...
Mô tả ngắn:
Jewelry laser welding M/C
Jewelry welding machine is suitable mainly for electronics and jewelry business.
It is used for gold/silver jewelry, electronic part repair and bubble spot welding. Its ergonomic design applies the world class parts to increase the product stability and durability. The device is compact and small, easy to move and install. It is easy to use and performs excellent welding. It is safe and stable and does not easily break
SKL-JW220W
• Simple and easy operation
• Stable performance for 24-hour operation
• Less alteration after welding
• Low maintenance cost
• 8-million hitting lamp used
...
Mô tả ngắn:
Mould welding M/C
Laser mould welding machine welds a damaged part of a mold with the welding rod and hyperthermal energy generated in a short time using laser.
It makes a surface smooth through spark and grinding after welding. It generates less bubble, crack, damage and wear and precise welding is possible. Area affected by heat is small therefore precision mold is not altered. Welding depth is deep and the exterior is firm and smooth. Great dissolution doesn’t leave welding mark. The material melts in the welding area which generates no groove on the part where the mold is contacted.
SKL-MW220W/400W
• Simple and easy operation
• Stable performance for 24-hour operation
• Low maintenance cost
• Less alteration after welding
• 8-million hitting lamp used ...
Mô tả ngắn:
CO 2 laser marking machine is a carver for non-metal materials.
It is a laser marking machine suitable for wood, paper and leather.CO 2 radio-frequency laser from US is a type of a gas laser whose laser wavelength is 1060nm of intermediate frequency infrared ray. It is powerful and has great electrooptics conversion efficiency.
SKL-CO 2 30W
• US SYNRAD laser applied
• Long lifespan of 20,,000~30,000 hours
• Crisp marking, high carving and cutting efficiency
• Free A/S for 2 years
• User-friendly design
• Provides tutorial videos, manual and official WIN7.
•Compatible with various formats (AI,PLT,DXF,JPG,etc.)
...
Mô tả ngắn:

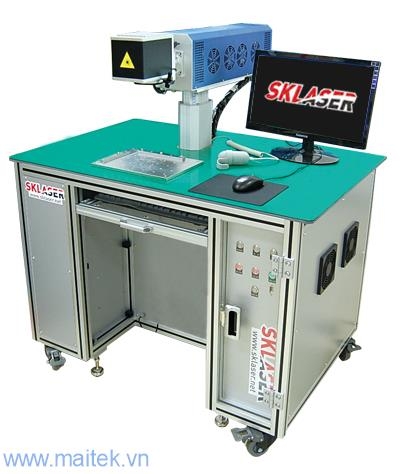

Fiber laser marking M/C2
Fiber laser marking machine is a marker for metals.
It is a carver for marking on metallic and plastic materials using cutting-edge fiber laser device from IPG Germany for easy and fast marking.
SKL-FM20WII
• Semi-permanent lifespan (100,000 hours)
• Uses laser from IPG Germany.
• Various options available
• Free A/S for 2 years
• User-friendly design
• Provides tutorial videos, manual and official WIN7.
• Compatible with various formats (AI,PLT,DXF,JPG,etc.)
...
Mô tả ngắn:
Hệ thống khắc fiber laser trên bề mặt kim loại.
Sử dụng để khắc trên các bề mặt kim loại và vật liệu nhựa, trái tim của hệ thống là bộ nguồn fiber laser từ IPG - Đức.
SKL-FM20W
• Tuổi thọ nguồn laser cao (100,000 hours)
• Nguồn laser từ IPG Germany.
• Khắc tốc độ cao
• Nhiều sự lựa chọn về phụ tùng và chức năng
• Nâng cấp dịch vụ hỗ trợ trong 02 năm
• Thiết kế thân thiện, dễ sử dụng
• Hướng dẫn sử dụng bằng video, tài liệu, và nền Win 7 bản quyền
• Hỗ trợ nhiều định dạng (AI,PLT,DXF,JPG,etc.)
...
Mô tả ngắn:
SMART DISPENSE 06 DPH
The SMART DISPENSE 06 is a professional dispensing device for manual tasks where high precision and repeat accuracy are essential.These dispensers also allow heating the dispensing nozzle. A temperature sensor inside the dispensing pen measures the cartridge temperature. Temperature insulated dispensing pens are available for common cartridge sizes in order to prevent the material from heating up during the dispensing application. When highly viscous materials are used, the viscosity setting can be adjusted in the dispensing pen via an optionally integrated nozzle heater. Furthermore, 1K material can be processed reliably, whether in liquid or paste form. For materials with a low viscosity, the formation of drops on the dispensing needle is prevented through a manual retract vacuum.
Product variants in the shop
SD06.0202
SMART DISPENSE 06...
Mô tả ngắn:
PROFI DISPENSE 06 HC
PROFI DISPENSE 06 H are professional dispensing devices equipped with the same technology as the CLEVER DISPENSE 06 H. With their extremely flat housing format and the remote dispensing head these devices are the professional solution to be integrated in automation technology. In application of dispensing technology in mechanical engineering long hoses may occur between dispensing control and dispensing head. To avoid associated disadvantages, the control electronics and dispensing pneumatic (PM 06) of the PROFI DISPENSE 06 are divided into two individual modules. The main benefits include the small dimensions of the control unit and pneumatic module as well as its ability to dispense with accuracy. All application parameter like dispensing pressure, retract vacuum or nozzle- and cartridge temperature are parameterized by the PC or the system control. This provides complete control of the dispensing process. The devices are designed for dispensing small dots...
Mô tả ngắn:
SMART DESOLDER 01
The SMART DESOLDER combines a manual hot gas source with a vacuum pen for extraction of residual solder. Damage to the pads from overheating or mechanical stress is avoided through targeted heating of the residual solder after lifting the component. The temperature-controlled airflow prevents the neighboring components from warming up. After melting, the residual solder is removed contactless by the vacuum pen. The soft Teflon tip prevents damage to the pads through mechanical demands. As a standalone device, it virtually fits on any work bench and can be operated very flexibly with two handheld pens. The HOTBEAM 04 / 05 under-heating system perfectly completes the SMART DESOLDER 01. Through this combination, the temperature behavior can be optimized by way of a sensor-supported or programmed preheating profile.
Product variants in the shop
DS01.1001
...
Mô tả ngắn:
EXPERT 04.6 IXH
The EXPERT 04.6 IXH Rework station provides the ideal support for manual rework tasks. Its compact design provides all functions necessary for the reworking process, from desoldering, placing and soldering in components as well as removing old solder. Aligning and placing components can be done reliably, and MARTIN’s tried-and-tested heating technology guarantees the optimal soldering results. The Rework stations are controlled by EASYSOLDER 07 software, through which a clear and structured overview is provided of all profiles and configurations within the repair process.An infrared under-heating system is integrated into the workstation to provide the ideal conditions for the respective areas of application. And the precise and efficient hot-air top heater complements the overall heating concept. Furthermore, the Auto-Profiler included within the software automatically aligns the top- and under-heating system to your desired process parameters.
Product variants in the shop
...
Mô tả ngắn:
Expert 10.6 IV
410 W Rework station with IR under-heating system (80 x 60 mm²) and automated SMD placement process by Auto Vision Placer (AVP) incl. software EASYSOLDER 07 and DBL 06 control unit with six high-resolution sensors inputs for thermocouples (Type K). This unit is particularly suitable for small PCBs found in smartphones and PDAs with fine-pitch components in varying package dimensions.
Product variants in the shop
DB00.1068
EXPERT 10.6 IV
1 2 3 4 5 6 7 8 9 10
x 1
auf Anfrage
Content
Tool set for dispensing, placing, residual solder removal and soldering...
Mô tả ngắn:
Main applications:
Optical fiber marking machine ZM-FM 20W is widely used in IT industry, telecommunication industry, the mobile phone stainless steel sequins, mould, IC, keys of mobile phone industry, bitmap marking, machine manufacturing, medical equipment, watches and clocks, glasses, gifts, precious metals jewelry, leather clothing etc.
Laser wave length
1064nm
Power adjustment range
10-100%
Repetition frequency
20-100KHz
Output beam quality ...
Mô tả ngắn:
Features:
1、Operation with handheld LCD panel teach box, which is easy to program and learn.
2、Functions of drawing points, lines, surfaces, arc, circle and consecutive interpolation of irregular curves, is to realize any 3D non planar trajectory path.
3、Excellent teaching function, Supporting: array, graphical browsing three dimensional elliptic, common graphical library inserting, group editing and so on..
4、 MINISD file storage with high speed and2Gcapacity can store 999 dispensing process documents.
5、The size of glue, speed of glue spread, dispensing time, and time of halting dispensing can be set by parameters.
6、 With special dispensing controller, glue outflow is quite stable without leaking...
Mô tả ngắn:
1.Point,line (length 50um),block (50um*50um)To repair the mist of polarizing film containing the LCD panel
2.Image photographed, archive and upload
3.Dual display electronic brake light red and red box
4.Light gate size and the parameters of the lens ratio and laser power storage and use
5.No fuse protection circuit breaker protection
1
Working environment temperature
20℃~30℃±5℃
2
Work environment relative humidity
65 + / - 5%...
Mô tả ngắn:
Main Features:
1.The bottom is IR heater; The top is hot-air heater.
2.Choose imported high-precision materials to control the BGA desoldering & soldering procedures precisely.
3.Has a computer communications function, built-in PC serial port, external temperature interface with software
to achieve computer control.
4.High-precision thermocouple to achieve the precise temperature detection.
5.The top and bottom heater work independently. A cross-flow fan cools rapidly to protect the PCB from deformation
when welding.
6.Use a V-groove support equipped with a flexible fixture for PCB positioning to protect the PCB....
Mô tả ngắn:
Main Features:
1. Adopt linear slide which makes X, Y, Z axis all can do micro adjust or rapid positioning, with high precision, within ±0.01MM, easy operation.
2. 3 independent heaters area. The 1st and 2nd hot-air heaters can set multiple groups and segments temperature parameters. The 2nd heater can move up and down. The 3rd large area IR heater can preheat the PCB board fully to ensure no deformation to the board.
3. High-precision K-type thermocouple with closed loop control, PID auto-tuning temperature system, combined with highly sensitive temperature module for the precise temperature control, the temperature error controlled within ± 2 degree
4. The external sensor can detect temperature precisely, analyze and calibrate the real temperature curve accurately. ...
Mô tả ngắn:
Main Features:
1.Adopt liner slide which makes X、Y、Z axis all can do high positioning accuracy and fast maneuverability.
2. PLC control, can save 50 groups profile and analyze instant temperatures curves, equipped with password protection and modify function. The temperature curves can be show on the touch screen. Instantly set and analyze temperature parameter according with repairment need.
3. There are 3 independent heating areas, the 1st and 2nd hot-air heaters, can be set many temperatures parameters and sections at the same time. The 3rd IR preheating, prevent the PCB motherboard cracking, and can be adjusted the power comsumption. Top heater can be adjusted freely; second heater can be adjusted up and down.
The machine operations be runned by...
Mô tả ngắn:
1.Adopt liner slide which makes X, Y, Z axis all can do high positioning accuracy and fast maneuverability.
2. High definition touch screen made fromTaiwan, PLC control, can save 50 groups profile and analyze instant temperatures curves, equipped with password protection and modify function. The temperature curves can be show on the touch screen. Instantly set and analyze temperature parameter according with repair need.
3. There are 3 independent heating areas from top to bottom, the 1st and 2nd hot-air heaters, can be set many temperatures parameters and sections at the same time. The 3rd IR preheating, prevent the PCB motherboard cracking, and can be adjusted the power consumption. Bottom IR heater ensure an even heater for PCB board. Top heater can be adjusted freely; second hot air heater can be adjusted...
Mô tả ngắn:
1,Adopt liner slide which makes X,Y,Z axis all can do precision adjustment or fast positioning, with high positioning accuracy and fast maneuverability,
2,high definition touch screen , PLC control, can save multiple groups profile, password protection and modify function, and can save multiple groups profile, equipped with instant temperature curve analysis function,
3, There are 3 independent heating areas from top to bottom. The 1st and 2nd are hot-air heaters, the 3rd is IR preheating, temperature controlled within±3 °, Top heater can be adjusted freely, second heater can be adjusted up and down, top and bottom temperature can control many groups and sections of temperature parameters at the same time; the third IR heater can be adjusted the power consumption.
4,Offer all kinds of hot-air...
Mô tả ngắn:
Main Features:
1. Embedded industrial control computer windows system. Adopt high definition human-machine interface,PLC control, there is
password protection and modify function, can show 4 -6 temperature curves and store multiple sets of data, with instant curves analysis
function,and analyzing and correct BGA temperature at any time .
2. F or guarantee the heating effect and mounting precision, control independent the top heater and mounting heater,adopted linear slide make X,Y,Z axis can do micro adjustment and rapid positioning;After mounted, no need to move the PCB board in the bottom area, it can heat directly when move the top heater, avoid the moving of...
Mô tả ngắn:
1, This machine adopts industrial computer control, full automatic vision alignment system can acquire BGA and the PCB image through the CCD camera and collect them on the image positioning processing system, calculate the offset position and angle through image processing software, then re-transmission to motor drive of servo controller to correct the position, thus completing the BGA placement. Fast response, positioning accuracy is up to ±0.005 MM,with keyboard, mouse and 15 inch HD LCD monitor.
2, During mounting, the machine can automatically analyze, search, modify the location of BGA or PCB, and through the nozzle to automatically pick up BGA and mount it to the specified pad, When desoldering, it can automatically remove the BGA on PCB and place it to the specified location.
3, The upper heater can be moved freely, the system X, Y-axis and R angle...
