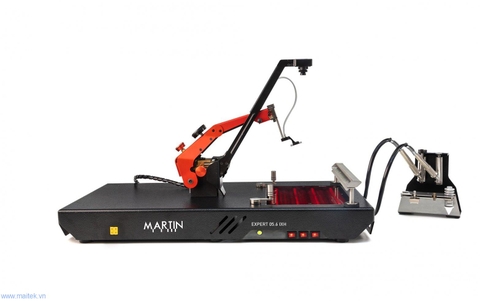

Hệ thống sửa chữa bo mạch MARTIN EXPERT 05.6 IXH

EXPERT 05.6 IXH

The Rework station with 2,000 W heating power in IR technology allows uniform heating over an area of 185 x 245 mm² and prevents mechanical stress due to temperature differences during the process. The high-resolution camera delivers fast, accurate and reproducible placement results. Even the smallest components from a size of 1x1 mm²can be repaired and placed. User-friendly handling is provided by the touch-enabled EASYSOLDER 07 software. Reflow profiles with individual temperature parameters can be created, edited and saved and enable high process reliability and repeatable soldering. The Expert 05.6 IXH is a precise, cost-effective solution for the complete rework process on one unit.

Content

• Two pens with magazine for soldering, residual solder removal and placing
• Solder nozzle 7 mm, BGA soldering tool 27 x 27 mm²
• Thermocouple sensor (Type K)
• Two PCB magnet holder 40.5mm (standard)
• PCB magnet holder rail 40.5mm
• Manual
• Intuitive software EASYSOLDER 07 with touch integration
