Máy gắp đặt linh kiện SM481 Plus

Tình trạng: Còn hàng |Thương hiệu: HANWHA

Loại: Hệ thống SMT

SM series models are the best selling products and have been proven by many customers worldwide.

· Production speed and component coverage suitable for general-purpose high-speed placement
· Adopts high speed piano head with one gantry and ten nozzles

70.000

Ưu đãi

Với các khách hàng đã từng mua hàng tại MAITEK CO.,

Với các khách hàng lần đầu mua hàng tại MAITEK CO.,

Chính sách bán hàng

Hàng chính hãng, bảo hành toàn quốc

Cung cấp đầy đủ chứng nhận CO, CQ

Gọi lại trong 10 phút từ khi nhận liên hệ

Giao hàng toàn quốc nhanh chóng

Hỗ trợ dịch vụ 24/7

Hỗ trợ mua hàng 0906182358

Thông tin chi tiết

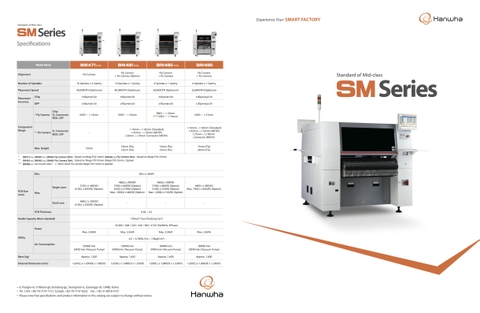

1. Cấu hình tiêu chuẩn SM481PLUS

[Standard machine configuration]	Specification(Select)
SM481 PLUS Machine	-
1. Conveyor Size	1. L460 * W400_1650
2. Board Flow	1. Left → Right
3. Feeder Base	1. Fixed Base(Front & Rear)
4. Flying Vision : FOV 24mm (1Set)	-
5. Stage Vision	2. FOV 45mm 1EA
6. Vaccum : Vaccum Pump	-
7. Height : 900mm	-
8. Single Lane (1-1-1)	-
9. OS : Windows 7	-
10. Safety : Area Sensor	-
11. CE certificate : ROHS	-
12. IT System
- Lot Tracking System(In case of Full IT, Select)
13. Standard Nozzles are not inluded	-
- CN040 10EA	Not Included
- CN065 2EA	Not Included
- CN140 2EA	Not Included
- CN220 2EA	Not Included
- CN400S 1EA	Not Included
14. Options	-
- Edge Fixer
- Light Mapping Tool
- Air Shower

Tape Feeder

1. Machanical Feeder

[SMN Non-IT Feeder]

No.	Code	Detail
1	SBFB32100K	SMN NON IT 8mm_2P_7 TAPE FEEDER
2	SBFB32110K	SMN NON IT 8mm_4P_7 TAPE FEEDER
3	SBFB33100K	SMN NON IT 12mm TAPE FEEDER
4	SBFB33110K	SMN NON IT 16mm TAPE FEEDER
5	SBFB34100K	SMN NON IT 24mm TAPE FEEDER
6	SBFB34110K	SMN NON IT 32mm TAPE FEEDER
7	SBFB34120K	SMN NON IT 44mm TAPE FEEDER
8	SBFB34130K	SMN NON IT 56mm TAPE FEEDER
9	SBFB34140K	SMN NON IT 72mm TAPE FEEDER
10	SBFB34150K	SMN NON IT 88mm TAPE FEEDER

[SMN IT Feeder]

No.	Code	Detail
1	SBFB32000K	SMN IT 8mm_2P_7 TAPE FEEDER
2	SBFB32010K	SMN IT 8mm_4P_7 TAPE FEEDER
3	SBFB33000K	SMN IT 12mm TAPE FEEDER
4	SBFB33010K	SMN IT 16mm TAPE FEEDER
5	SBFB34000K	SMN IT 24mm TAPE FEEDER
6	SBFB34010K	SMN IT 32mm TAPE FEEDER
7	SBFB34020K	SMN IT 44mm TAPE FEEDER
8	SBFB34030K	SMN IT 56mm TAPE FEEDER
9	SBFB34040K	SMN IT 72mm TAPE FEEDER
10	SBFB34050K	SMN IT 88mm TAPE FEEDER


2.Electronic Feeder

[SME IT Feeder]

No.	Code	Detail
1	MF2-1202/CO	SME 0402_7 SP Tape Feeder
2	MF2-1107/CO	SME 8mm_13 SP Tape Feeder
3	MF2-1105/CO	SME 8mm_7 SP Tape Feeder
4	SBFB51103K	SME 12mm IT SP Tape Feeder
5	SBFB51104K	SME 16mm IT SP Tape Feeder
6	SBFB51105K	SME 24mm IT SP Tape Feeder
7	SBFB51106K	SME 32mm IT SP Tape Feeder
8	SBFB51107K	SME 44mm IT SP Tape Feeder
9	SBFB51108K	SME 56mm IT SP Tape Feeder

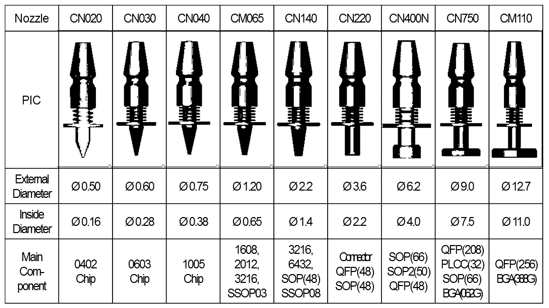

Nozzle

Item	Code	Detail	Applicable	Inner Dia.	Outer Dia.	Component
Small Type	J90551006A	□ CN020	ANC 35/29/37	Φ0.5	Φ0.16	0402
	J90550133D	□ CN030	ANC 35/29/37	Φ0.6	Φ0.28	0603
	J9055134C	□ CN040	ANC 35/29/37	Φ0.75	Φ0.38	1005
	J9055136C	□ CN065	ANC 35/29/37	Φ1.2	Φ0.65	1608
	J90551430A	□ CN080	ANC 35/29/37	Φ1.2	Φ0.65	2012
	J9055256A	□ CN140	ANC 35/29/37	Φ2.2	Φ1.4	3216
	J9055351A	□ CN220	ANC 35/29/37	Φ3.6	Φ2.2	SOP
	J90551072A	□ CN400	ANC 35/29/37	Φ6.2	Φ4.0	SOP, TSOP
Medium Type	AM03-031406A	□ CN400N	ANC 29/37	Φ6.2	Φ4.0	SOP, TSOP
	J9055259B	□ CN750	ANC 29/37	Φ9.0	Φ7.5	QFP, BGA
	AM03-014513A	□ CN750-P	ANC 29/37	Φ9.5	Φ7.5	QFP, BGA
Large Type	J9055260B	□ CN110	ANC 29/37	Φ12.7	Φ11.0	QFP, BGA
Large Type	J90551417A	□ RN12	ANC 29/37	Φ11.6	Φ3.8	QFP, BGA

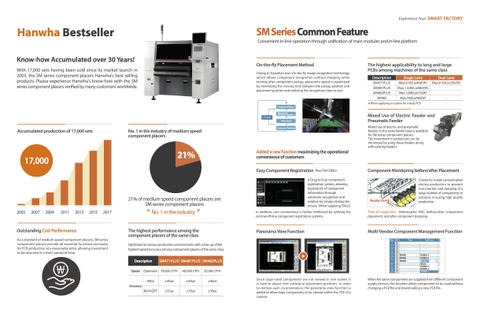

SM series models are the best selling products and have been proven by many customers worldwide.

· Production speed and component coverage suitable for general-purpose high-speed placement
· Adopts high speed piano head with one gantry and ten nozzles

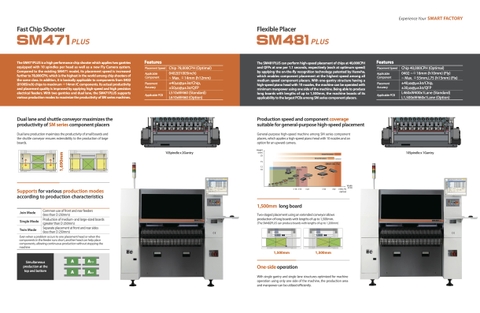

Features

Performance

One-Side Operation

With single gantry and single lane structures optimized for machine operation using only one side of the machine, the production area and manpower can be utilized efficiently.
Flexible Production

Applicable to 1,500mm Long Board

Applicable up to 1,500mm long-board mounting through two stepped placement using an extension conveyor
Reliability

Mixed Use of Electric Feeder and Pneumatic Feeder

Allows mixed use of electric and pneumatic feeders in the same feeder base, minimizing production investment costs by using existing feeders together
Easy Operation

Panorama View Function

Merges the split component images to display them into one, allowing easy pickup and placement position adjustment of large components and irregular shaped SMD components.
