Hệ thống bơm keo Martin CLEVER DISPENSE 06 HC DK

Mã sản phẩm: Chưa rõ
Liên hệ

Chính sách

Giao hàng toàn quốc

Bảo hành 12 tháng theo tiêu chuẩn nhà sản xuất

Cam kết

Hàng mới 100%, chính hãng sản xuất.

Cung cấp đầy đủ chứng từ, hóa đơn, CO, CQ theo yêu cầu

Giao hàng miễn phí toàn quốc với đơn hàng >10 triệu

Hỗ trợ tư vấn, kỹ thuật 24/7

Chi tiết sản phẩm

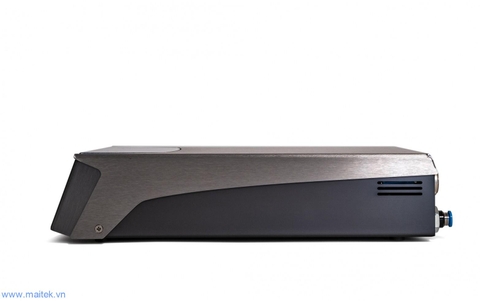

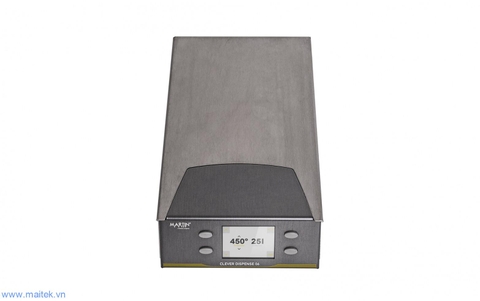

CLEVER DISPENSE 06 HC DK

The CLEVER DISPENSE 06 HC embodies a professional dispenser for applications that require highest accuracy and a maximum control of material temperature and viscosity. This dispenser allows heating and cooling (temperature control) of the dispensing nozzle and cartridge. The all-electronic dispensers whose dispensing pressure, temperature and retract vacuum are program-controlled rely on time-pressure-technology. This allows reliable dispensing of very small dots and lines of liquid to pasty material either as 1K-type or 2K-type. You can add your own material to the already existing material library to define essential material parameter and limit values. To ensure a stable process, this device set includes a tempering module for the nozzle — an integrated feature of the dispensing head. Optionally, a cartridge tempering module can be attached to the CLEVER DISPENSE 06 HC which allows the material temperature to be adjusted and controlled. Furthermore, a USB or TCP/ IP interface is available for communication between the dispensing device and the process control computer.

Product variants in the shop

Martin-CleverDispense06 HC-DK

CD06.2301 CLEVER DISPENSE 06 HC DK 3

x 1 auf Anfrage

Martin-CleverDispense06 HC-DK

CD06.2302 CLEVER DISPENSE 06 HC DK 5

x 1 auf Anfrage

Martin-CleverDispense06 HC-DK

CD06.2303 CLEVER DISPENSE 06 HC DK 10

x 1 auf Anfrage

Martin-CleverDispense06 HC-DK

CD06.2304 CLEVER DISPENSE 06 HC DK 30

x 1 auf Anfrage

Martin-CleverDispense06 HC-DK

CD06.2305 CLEVER DISPENSE 06 HC DK 55

x 1 auf Anfrage

Content

  • Control unit CLEVER DISPENSE 06 HC
  • Dispensing head (size of choice) with integrated nozzle tempering and connecting cable (l=2.6m)
  • Pneumatic hose (d=6mm, l=5m)
  • Power supply 90-230V AC -> 24V DC
  • PC-Software CLEVER DISPENSE Pro
  • USB cable
  • Short instruction

Technical details

Dispensing head: 3, 5, 10, 30, 55ccm
Viscosity range: 0.1-105 mPas
Nozzle tempering: -15K -> Raumtemperatur -> 50°C

Dot dispense settings: Time range: 0,001 s -2 s (±0,0005s)
  Pressure range: 0,1 bar – 6 bar
  Repeatability: 1 % (Pressure pulse)
  Smallest dispensing volume: 1,0 nl

Line dispense settings: Time range: 0,1 s - 30 s
  Continuous pressure control
  Repeatability: 2% (Pressure level)

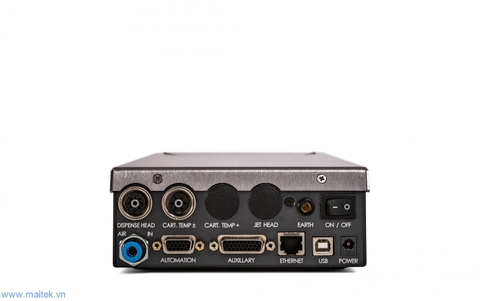

Communication: USB 2 (Type B) / SPS / PLC / Network
Weight: 2,5 kg max
Size: 272 x 152 x 60 mm3

Options

Retract vacuum: -20 mbar – 0 mbar
Height sensor: For dispensing head
Cartridge tempering: -10K -> Ambient -> 50°C

Downloads

Device flyer 0.8 MB  Download

modules & attachments

martin-image-placeholder

CD06.0051 Vacuum module CD06 HC

x 1 auf Anfrage

Martin-2711-Dispensing head with nozzle heating

DK06.0501 Dispensing head 3ccm for CD06 HC

x 1 auf Anfrage

Martin-2711-Dispensing head with nozzle heating

DK06.0502 Dispensing head 5ccm for CD06 HC

x 1 auf Anfrage

Martin-2711-Dispensing head with nozzle heating

DK06.0503 Dispensing head 10ccm for CD06 HC

x 1 auf Anfrage

Martin-2711-Dispensing head with nozzle heating

DK06.0504 Dispensing head 30ccm for CD06 HC

x 1 auf Anfrage
