Đế gia nhiệt hồng ngoại HOTBEAM 05

Mã sản phẩm: Chưa rõ
Liên hệ

Chính sách

Giao hàng toàn quốc

Bảo hành 12 tháng theo tiêu chuẩn nhà sản xuất

Cam kết

Hàng mới 100%, chính hãng sản xuất.

Cung cấp đầy đủ chứng từ, hóa đơn, CO, CQ theo yêu cầu

Giao hàng miễn phí toàn quốc với đơn hàng >10 triệu

Hỗ trợ tư vấn, kỹ thuật 24/7

Chi tiết sản phẩm

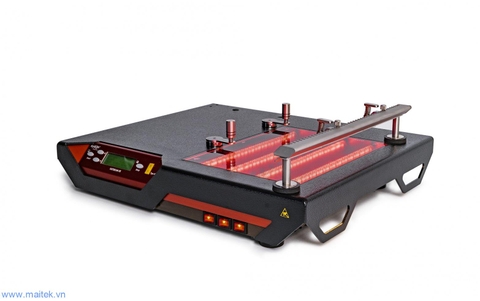

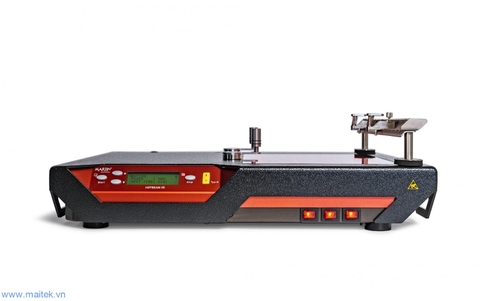

HOTBEAM 05

The high performing under heater in IR technology. This device is perfectly suitable for hand soldering tasks on mid-size and heavy PCB. The under-heating system can be usedsimply and comfortably in the various operating modes (consistent power, consistent temperature and profile) via the intuitive menu navigation. The innovative heating-management system ensures a reproducible circuit board temperature without overshooting at the highest long-term stability.

The Auto-Profiler feature determines required device settings (profile) automatically for the user. The exact desired circuit board temperature is attained by executing the profile learned automatically by the device. Working processes become safer and more efficient. The IR lamps, which are protected by a glass plate, are independently switchable. This makes cleaning of the hot area easy and simple.Furthermore, the under-heating system can control devices (e.g. for removal by suction) or configure them in such a way that they become activated by external devices (SPS or foot switches). The EASYBEAM software allows for the sorting, editing and writing of profiles via a USB connection.

Product variants in the shop

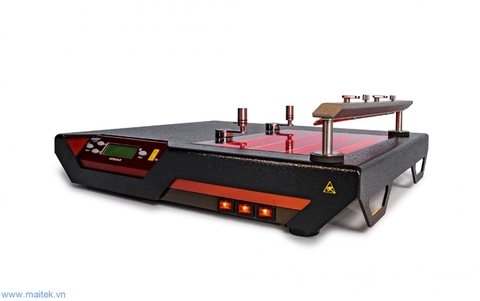

Hotbeam-05-perspective02

HB00.0053 HOTBEAM 05 - 2000 W, 230 V

x 1 auf Anfrage

Hotbeam-05-perspective02

HB00.0054 HOTBEAM 05 - 2000 W, 115 V

x 1 auf Anfrage

martin-image-placeholder

DS01.4003 SMART DESOLDER 01 with HOTBEAM 05- 230 V

x 1 auf Anfrage

martin-image-placeholder

DS01.4004 SMART DESOLDER 01 with HOTBEAM 05- 115 V

x 1 auf Anfrage

Content

  • Under heater HOTBEAM 05.1
  • Four magnet holder 40.5mm
  • PCB magnet holder rail 40.5mm
  • Thermocouple sensor (Type K)
  • Manual

Technical details

Power consumption:

2,100 VA



Power underheating system:

2,000 W

4 x IR-lamps

Size underheating system:

185 x 245 mm2



Max. PCB size:

200 x 260 mm2



Temperature range:

50 °C – 250 °C

1°C steps


Mains:

1 Phase, 85 – 250 VAC, 50 - 60 Hz



Cooling:

Electrically, 4 x fans



Dimensions:

450 x 370 x 70 mm3



Weight:

4500 g



Downloads

Device flyer 1 MB  Download

modules & attachments

martin-image-placeholder

SF03.0009 PCB clamping holder

x 1 auf Anfrage

martin-image-placeholder

SF03.0018 PCB clamping holder with 3 fingers

x 1 auf Anfrage

Martin-1230-PCB clamping holder

SF03.0019 PCB clamping holder with 3 fingers

x 1 auf Anfrage

Martin-1230-PCB clamping holder

SF04.0020 PCB clamping holder with 3 fingers adjustable

x 1 auf Anfrage

martin-image-placeholder

SF03.0001 PCB magnet holder h=20mm

x 1 auf Anfrage
