Đế gia nhiệt hồng ngoại HOTBEAM 04
Chính sách bán hàng
Thông tin chi tiết

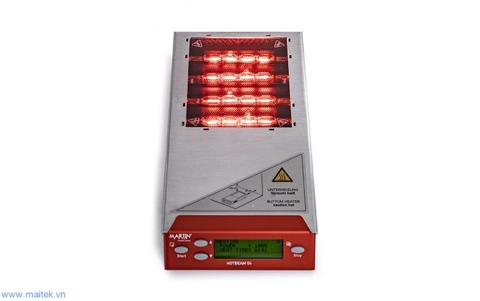

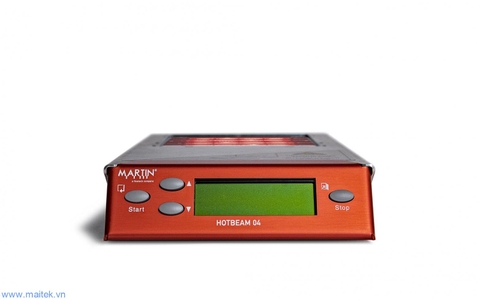

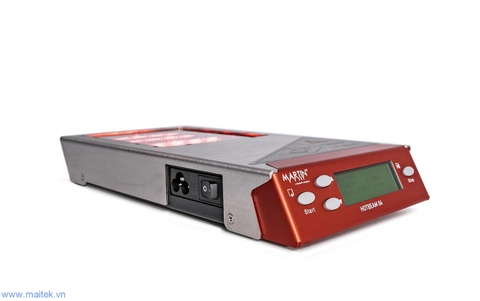

HOTBEAM 04
The HOTBEAM 04 is an extremely compact and efficient under heater. Powered by infrared technology, a 105 x 130 mm² heating area is provided. The under-heating system, which has been tried and tested for many years, was developed for stable, reliable and precise preheating tasks. All operations can be carried out with this device safely and with precision.
Various operating modes, e.g. for consistent power, consistent temperature and profiles, can be operated easily.The Auto-Profiler feature determines required device settings (profile) automatically for the user. The innovative heating-management system guarantees the highest degree of reliability. Furthermore, the under-heating system cancontrol devices (e.g. for removal by suction) or configure them in such a way that they become activated by external devices (SPS or foot switches). The EASYBEAM software allows for the sorting, editing and writing of profiles via a USB connection.
Product variants in the shop
|
|
HB00.0050 | HOTBEAM 04 - 500 W, 230 V | x 1 | auf Anfrage |
|
||
|
|
HB00.0051 | HOTBEAM 04 - 500 W, 115 V | x 1 | auf Anfrage |
|
||
|
|
DS01.4001 | SMART DESOLDER 01 with HOTBEAM 04 - 230 V | x 1 | auf Anfrage |
|
||
|
|
DS01.4002 | SMART DESOLDER 01 with HOTBEAM 04 - 115 V | x 1 | auf Anfrage |
|
Content
- Under heater HOTBEAM 04.1
- Four PCB support brackets
- Thermocouple sensor (Type K)
- Manual
Technical details
|
Power consumption: |
600 VA |
|
|
Power underheating system: |
500 W |
4 x IR-lamps |
|
Size underheating system: |
105 x 130 mm2 |
|
|
Max. PCB size: |
130 x 150 mm2 |
|
|
Temperature range: |
50°C-250°C |
1°C stepse |
|
Mains: |
1 Phase, 85 – 250 VAC, 50 - 60 Hz |
|
|
Cooling: |
Electrically, 2 x fans |
|
|
Dimensions: |
150 x 300 x40 mm3 |
|
|
Weight: |
800 g |
|
Downloads
| Device flyer | 0.8 MB | Download |
modules & attachments
|
|
SF03.0018 | PCB clamping holder with 3 fingers | x 1 | auf Anfrage |
|
||
|
|
SF04.0020 | PCB clamping holder with 3 fingers adjustable | x 1 | auf Anfrage |
|
||
|
|
SF03.0001 | PCB magnet holder h=20mm | x 1 | auf Anfrage |
|
||
|
|
SF33.0015 | PCB magnet holder rail, h=20mm, l=300mm | x 1 | auf Anfrage |
|
||
|
|
SF03.0013 | PCB support rail, h=20mm, l=223mm | x 1 | auf Anfrage |
