CLEVER DISPENSE 06 H DPH

The CLEVER DISPENSE 06 H is a professional dispenser for applications that require highest accuracy and a maximum control of material viscosity. These dispensers allow heating of the dispensing nozzle and cartridge. The CLEVER DISPENSE 06 H DP Sets are designed for manual dispensing operations. The all-electronic dispensers whose dispensing pressure, temperature and retract vacuum are program-controlled use the time-pressure-technology. This allows reliable dispensing of very small dots and lines of liquid to pasty material either as 1K-type or 2K-type. In addition, a sensor measures the material temperature inside the dispensing pen and the control unit compensates the material-specific change in viscosity. You can add your own material to the already existing material library to define essential material parameter and limit values.

Content

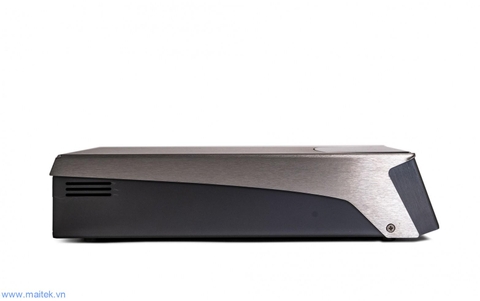

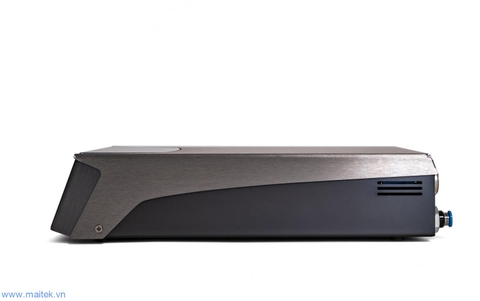

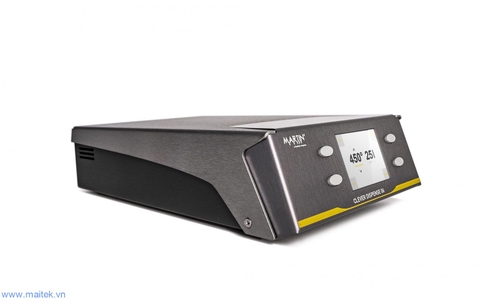

  • Control unit CLEVER DISPENSE 06
  • Dispensing pen (size of choice) with integrated nozzle heater and connecting cable (1,5m)
  • Stand for dispensing pen, foot switch,
    needle set (27pcs), Pneumatic hose (d=6mm; l=5m)
  • Power supply 90–230 V AC -> 24V DC
  • PC-Software CLEVER DISPENSE Pro
  • USB cable
  • Short instruction

Technical details

Cartridges to use: 3, 5, 10, 30, 55 ccm
Viscosity range: 0.1-10⁵ mPas
Nozzle heater: 90°C max.

Dot dispense settings: Time range:

0,001 s -2 s (±0,0005s)



Pressure range:

0,1 bar – 6 bar

  Repeatability: 1 % (Pressure pulse)


Smallest dispensing volume:

1,0 nl

Line dispense settings: Time range: 0,1 s - 30 s
  Continuous pressure control


Repeatability:

2% (Druckniveau)

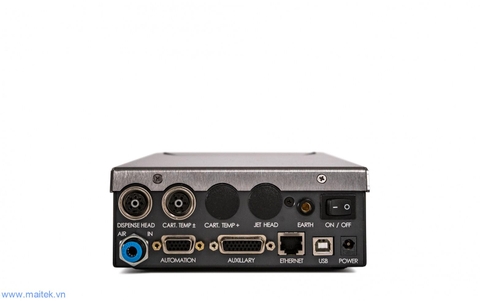

Communication: USB 2 (Type B) / SPS / PLC / Network
Weight: 2,5 kg max.
Size: 272 x 152 x 60 mm³

Options

Retract vacuum:

-20 mbar – 0 mbar

Downloads

Device flyer 0.7 MB  Download

modules & attachments

martin-image-placeholder

CD06.0050 Vacuum module CD06 H

x 1 auf Anfrage

Martin-2200-Dispensing head with heating

DK06.1005 Cartridge Heater 30 and 55ccm

x 1 auf Anfrage

Martin-2801-Dispensing pen

PD80.1011 Dispensing pen 3ccm

x 1 auf Anfrage

Martin-2801-Dispensing pen

PD80.1012 Dispensing pen 5ccm

x 1 auf Anfrage

Martin-2801-Dispensing pen

PD80.1013 Dispensing pen10ccm

x 1 auf Anfrage
