Martin

Hệ thống bơm keo Martin CLEVER DISPENSE 06 H DK

Mã sản phẩm: Chưa rõ
Liên hệ

Chính sách

Giao hàng toàn quốc

Bảo hành 12 tháng theo tiêu chuẩn nhà sản xuất

Cam kết

Hàng mới 100%, chính hãng sản xuất.

Cung cấp đầy đủ chứng từ, hóa đơn, CO, CQ theo yêu cầu

Giao hàng miễn phí toàn quốc với đơn hàng >10 triệu

Hỗ trợ tư vấn, kỹ thuật 24/7

Chính sách bảo hành tiêu chuẩn và gia hạn bảo hành theo yêu cầu.

Chi tiết sản phẩm

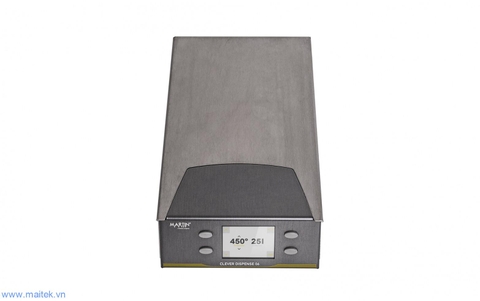

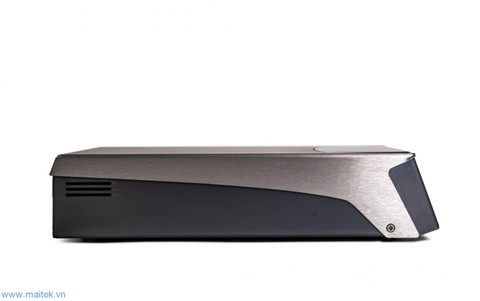

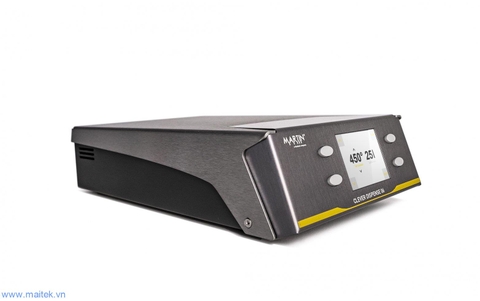

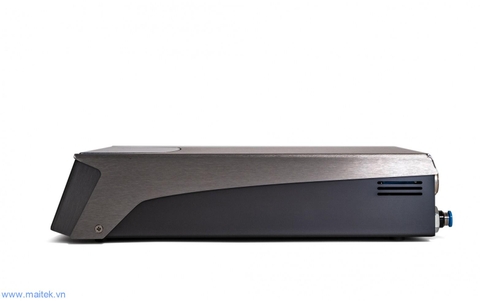

CLEVER DISPENSE 06 H DK

The CLEVER DISPENSE 06 H is a professional dispenser for applications that require highest accuracy and a maximum control of material viscosity. These dispensers allow heating of the dispensing nozzle and cartridge. The fully electronic dispensers whose dispensing pressure, temperature and retract vacuum, are program-controlled, use the volumetric time-pressure-technology. This allows reliable dispensing of very small dots and lines of liquid to pasty material either as 1K-type or 2K-type. You can add your own material to the already existing material library to define essential material parameter and limit values. Nozzle heaters are already integrated in the dispensing heads. Furthermore, the cartridge heater can be attached to the CLEVER DISPENSE 06 H which allows the material temperature to be adjusted and controlled. A USB or a TCP/IP interface is provided for communication between dispenser and process computer.

Product variants in the shop

Martin-CleverDispense06 H-DK

CD06.1301 CLEVER DISPENSE 06 H DK 3

x 1 auf Anfrage

Martin-CleverDispense06 H-DK

CD06.1302 CLEVER DISPENSE 06 H DK 5

x 1 auf Anfrage

Martin-CleverDispense06 H-DK

CD06.1303 CLEVER DISPENSE 06 H DK 10

x 1 auf Anfrage

Martin-CleverDispense06 H-DK

CD06.1304 CLEVER DISPENSE 06 H DK 30

x 1 auf Anfrage

Martin-CleverDispense06 H-DK

CD06.1305 CLEVER DISPENSE 06 H DK 55

x 1 auf Anfrage

Content

  • Control unit CLEVER DISPENSE 06 H
  • Dispensing head (size of choice) with integrated nozzle heater and connecting cable (2,6m)
  • Pneumatic hose (d=6mm, l=5m)
  • Power supply 90–230 V AC -> 24V DC
  • PC-Software CLEVER DISPENSE Pro
  • USB cable
  • Short instruction

Technical details

Cartridges to use:

3, 5, 10, 30, 55ccm



Viscosity range:

0.1-105 mPas



Nozzle heater:

90°C max.




Dot dispense settings:

Time range:

0,001 s -2 s (±0,0005s)



Pressure range:

0,1 bar – 6 bar



Repeatability:

1 % (Pressure pulse)



Smallest dispensing volume:

1,0 nl



Line dispense settings:

Time range:

0,1s-30s


Continuous pressure control




Repeatability:

2% (Pressure level)



Communication:

USB 2 (Typ B)/SPS/PLC/Netzwerk



Size:

272 x 152 x 60 mm3



Weight:

2,5 kg max.



Options

Retract vacuum:

-20 mbar – 0 mbar

Height sensor:

für Dosierkopf

Cartridge heater:

90°C max.

Downloads

Device flyer 0.8 MB  Download

modules & attachments

martin-image-placeholder

CD06.0050 Vacuum module CD06 H

x 1 auf Anfrage

Martin-2711-Dispensing head with nozzle heating

DK06.0001 Dispensing head 3ccm

x 1 auf Anfrage

Martin-2711-Dispensing head with nozzle heating

DK06.0002 Dispensing head 5ccm

x 1 auf Anfrage

Martin-2711-Dispensing head with nozzle heating

DK06.0003 Dispensing head 10ccm

x 1 auf Anfrage

Martin-2711-Dispensing head with nozzle heating

DK06.0004 Dispensing head 30ccm*

x 1 auf Anfrage
