Hệ thống bơm keo Martin PROFI DISPENSE 06 H

Mã sản phẩm: Chưa rõ
Liên hệ

Chính sách

Giao hàng toàn quốc

Bảo hành 12 tháng theo tiêu chuẩn nhà sản xuất

Cam kết

Hàng mới 100%, chính hãng sản xuất.

Cung cấp đầy đủ chứng từ, hóa đơn, CO, CQ theo yêu cầu

Giao hàng miễn phí toàn quốc với đơn hàng >10 triệu

Hỗ trợ tư vấn, kỹ thuật 24/7

Chính sách bảo hành tiêu chuẩn và gia hạn bảo hành theo yêu cầu.

Chi tiết sản phẩm

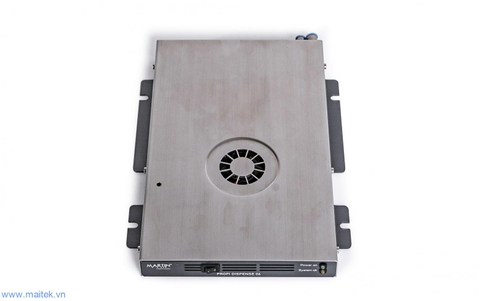

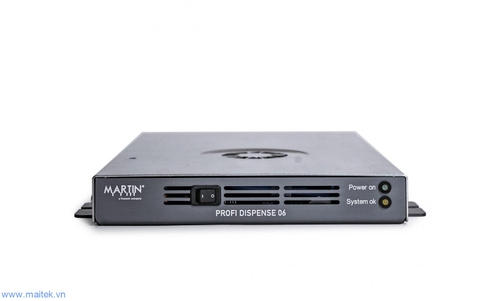

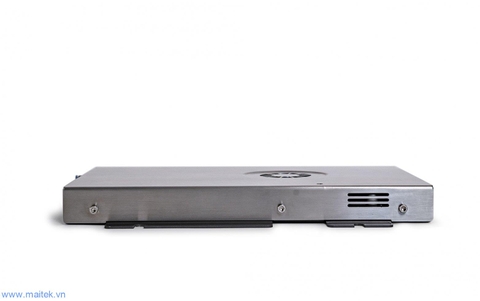

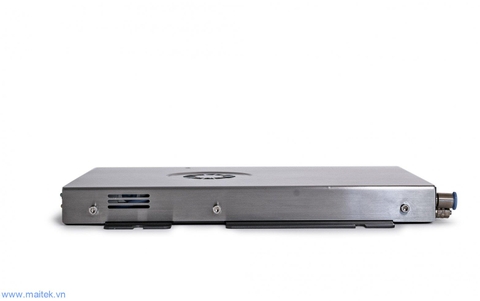

PROFI DISPENSE 06 H

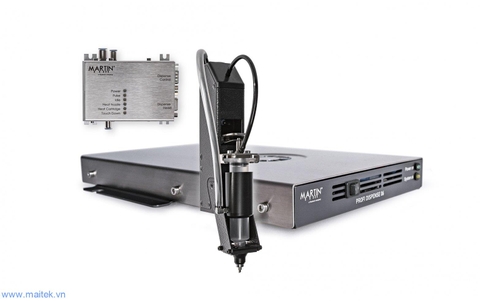

PROFI DISPENSE 06 H are professional dispensing devices equipped with the same technology as the CLEVER DISPENSE 06 H. With their extremely flat housing format and the remote dispensing head these devices are the professional solution to be integrated in automation technology. In application of dispensing technology in mechanical engineering long hoses may occur between dispensing control and dispensing head. To avoid associated disadvantages, the control electronics and dispensing pneumatic (PM 06) of the PROFI DISPENSE 06 are divided into two individual modules. The main benefits include the small dimensions of the control unit and pneumatic module as well as its ability to dispense with accuracy. All application parameter like dispensing pressure, retract vacuum or nozzle- and cartridge temperature are parameterized by the PC or the system control. This provides complete control of the dispensing process. The devices are designed for dispensing small dots and fine lines of liquid to pasty material either as 1K-type or 2K-type. A network interface for integration is standard equipment as well as a USB and the I/O interface for controlling the dispensing pulse by TTL or 24V signals.

Product variants in the shop

Martin-Profidispense06 SetH

PD06.1701 PROFI DISPENSE 06 H

x 1 auf Anfrage

Content

  • Control unit PROFI DISPENSE 06 H
  • Pneumatic module PM 06
  • Connector set, unassembled
  • PC-Software CLEVER DISPENSE Pro
  • USB cable
  • Short instruction

Technical details

Cartridges to use: 3, 5, 10, 30, 55 ccm
Viscosity range: 0,1-105 mPas / heated 205mPas

Dot dispense settings: Time range: 0,005 s-7 s
  Pressure range: 0,2 bar - 6 bar
  Repeatability: 1 %(Pressure pulse)
  Smallest dispensing volume: 1,0 nl

Line dispense settings: Time range: 0,1 s - ∞
  Continuous pressure control


Repeatability:

2% (Pressure level)

Vacuum: Autom. Vacuum, optional

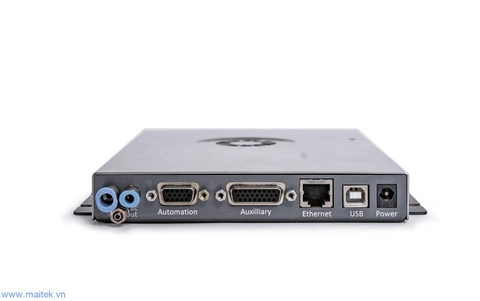

Communication: USB 2 (Type B) / SPS / PLC / Network
Size: 240 x 180 x 25 mm3
Weight: 1,5 kg max

Options

Dispensing head:

3, 5, 10, 30, 55ccm

Retract vacuum:

-20 mbar – 0 mbar  (fill level control)

Height sensor:

For dispensing head

Nozzle heater:

Max. 90°C

Cartidge heater:

Max. 90°C

Power supply:

90-230V AC ->24V DC

Downloads

Device flyer 0.7 MB  Download

modules & attachments

martin-image-placeholder

PD06.0050 Vacuum module PD06

x 1 auf Anfrage

Martin-2711-Dispensing head with nozzle heating

DK06.0001 Dispensing head 3ccm

x 1 auf Anfrage

Martin-2711-Dispensing head with nozzle heating

DK06.0002 Dispensing head 5ccm

x 1 auf Anfrage

Martin-2711-Dispensing head with nozzle heating

DK06.0003 Dispensing head 10ccm

x 1 auf Anfrage

Martin-2711-Dispensing head with nozzle heating

DK06.0004 Dispensing head 30ccm*

x 1 auf Anfrage
