CLEVER DISPENSE 06 H DP

The CLEVER DISPENSE 06 H is a professional dispenser for applications that require highest accuracy and a maximum control of material viscosity. The CLEVER DISPENSE 06 H DP Sets are designed for manual dispensing operations.

The all-electronic dispensers whose dispensing pressure, temperature and retract vacuum are program-controlled rely on time-pressure-technology. This allows reliable dispensing of very small dots and lines of liquid to pasty material either as 1K-type or 2K-type. In addition, a sensor measures the material temperature inside the dispensing pen and the control unit compensates the material-specific change in viscosity. You can add your own material to the already existing material library to define essential material parameter and limit values.

Product variants in the shop

CD06.0101	CLEVER DISPENSE 06 H DP 3	x 1	auf Anfrage
CD06.0102	CLEVER DISPENSE 06 H DP 5	x 1	auf Anfrage
CD06.0103	CLEVER DISPENSE 06 H DP 10	x 1	auf Anfrage
CD06.0104	CLEVER DISPENSE 06 H DP30	x 1	auf Anfrage

Content

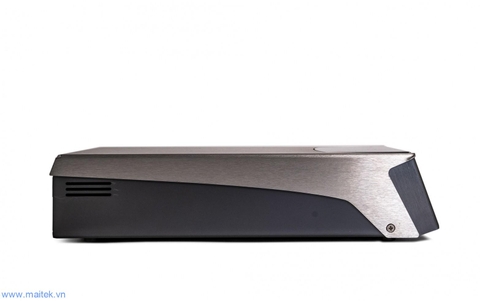

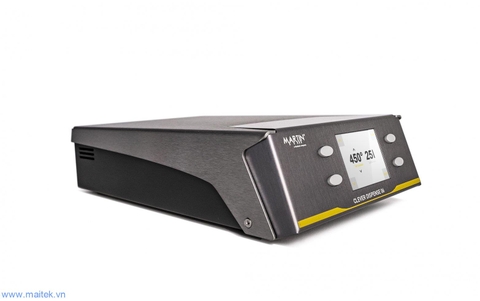

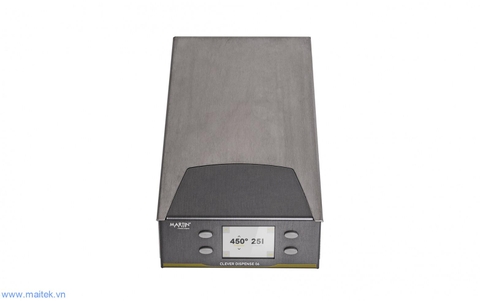

Control unit CLEVER DISPENSE 06 H
Dispensing pen (size of choice) with integrated temperature sensor and connecting cable (1.5m)
Stand for dispensing pen, foot switch,
needle set (27 pcs),
Pneumatic hose (d=6mm; l=5m)
Power supply 90–230 V AC -> 24V DC
PC-Software CLEVER DISPENSE Pro
USB cable
Short instruction

Technical details

Cartridges to use:	3, 5, 10, 30 ccm
Viscosity range:	0,1-10⁵ mPas
Dot dispense settings:	Time range:	0,001 s -2 s (±0,0005s)
	Pressure range:	0,1 bar – 6 bar
	Repeatability:	1 % (Energiepuls)
	Smallest dispensing volume:	1,0 nl

Line dispense settings:	Time range:	0,1 s - 30 s
	Continuous pressure control
	Repeatability:	2% (Pressure level)

Communication:	USB 2 (Type B) / SPS / PLC / Network
Weight:	2,5 kg max
Dimensions:	272 x 152 x 60 mm

Options

Retract vacuum:

-20 mbar – 0 mbar

Downloads

Device flyer

0.8 MB

Download

modules & attachments

CD06.0050	Vacuum module CD06 H	x 1	auf Anfrage
DK06.1005	Cartridge Heater 30 and 55ccm	x 1	auf Anfrage
PD80.1011	Dispensing pen 3ccm	x 1	auf Anfrage
PD80.1012	Dispensing pen 5ccm	x 1	auf Anfrage
PD80.1013	Dispensing pen10ccm	x 1	auf Anfrage
