Lò hàn để bàn Puhui T-962C

Mã sản phẩm: T-962C
16.000.000₫
Số lượng

1


Chính sách

Giao hàng toàn quốc

Bảo hành 12 tháng theo tiêu chuẩn nhà sản xuất

Thêm vào giỏ Mua ngay

Cam kết

Hàng mới 100%, chính hãng sản xuất.

Cung cấp đầy đủ chứng từ, hóa đơn, CO, CQ theo yêu cầu

Giao hàng miễn phí toàn quốc với đơn hàng >10 triệu

Hỗ trợ tư vấn, kỹ thuật 24/7

Chi tiết sản phẩm

T-962C DGC INFRARED IC HEATER



Product Description:

INFRARED IC HEATER T962C works automatically by micro-computer control. Can satisfy a dissimilarity SMD、BAG Soldering a request. Whole soldering process to complete automatically, easy to use, Adoption fast infrared radiation and circulation the wind for heat, so the temperature is very Accurate and even.

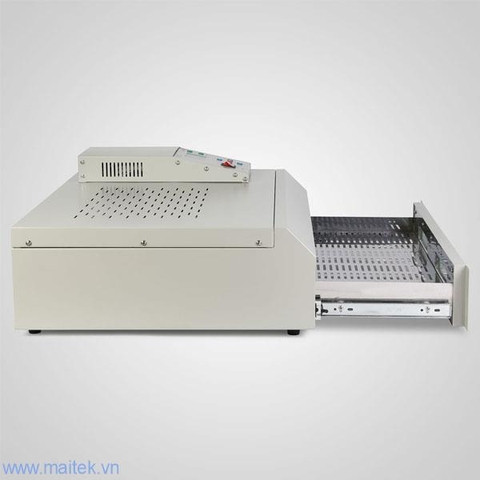

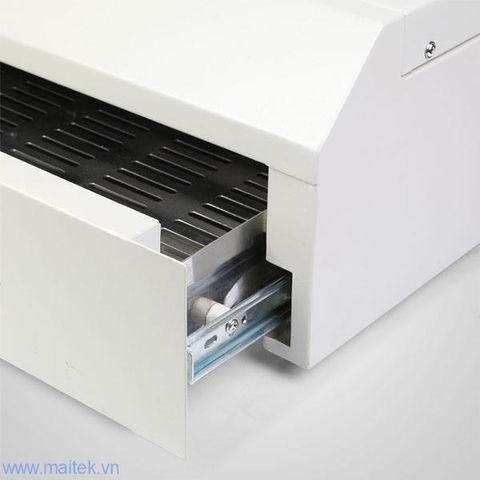

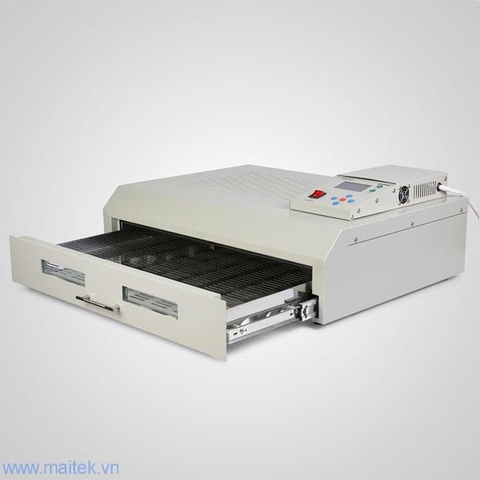

The faintness controls a technique and Can see the drawer type work bench , Make whole soldering process at you of the under surveillance automatic completed; Can soldering the most smart small part.

Adopted a high and dependable design, make what you use gratifying and rest assured.



Products Features:

★. (1) Have big infrared soldering max area:

Soldering area to reach effectively :400x600mm, Increase the usage scope of this machine consumedly, economical investment.

★. (2) Many temperature wave choice for you.

Memory eight kinds of temperature parameter waves can be provided as choice, and establish to move heating and cool off function compulsory;Whole soldering process to complete automatically, easy to use.

★. (3) Special heat up and temperature equalization with all design.

Output the power reaches to a 2500 W, Adoption fast infrared radiation and circulation the wind for heat,so the temperature is very Accurate and even, Whole soldering process to complete automatically for you choice temperature parameter waves.

★. (4). Humanized science and technology exquisite article.

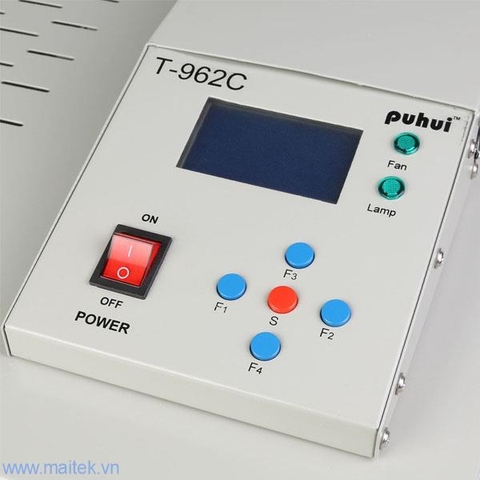

Firm of external appearance, can see of operation, amity of person machine operation interface, the perfect temperature wave project, from start to eventually body science and technology now is originally;

The agile physical volume and weight, let you economize a great deal of money, the set noodles type places mode, can let you own larger space; Simple operating instructions, let you a see can use.

★. (5) Perfect function choice.

Return soldering, drying, heat preservation, finalize the design, fast cool off etc.can use  Can soldering the most smart small part  example CHIP、SOP、PLCC、QFP、BGA etc; Can used to the gum of the product solid turn, the circuit board is hot aging, the PCB plank maintains to wait various works.Be applicable to each kind of business enterprise,company extensively develop and the small batch quantity produce a demand.

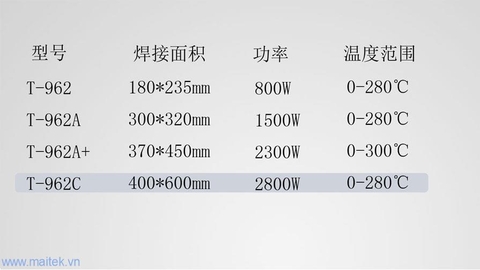

★. (6)Technic Parameter

     ● Soldering max area: 400×600 mm

     ● Size: 68.4X50.4X22.5 cm

     ● Rated Power: 2500W

     ● Process Period: 1~8 min

     ● Supply: AC110V~ AC220V /50~60HZ
