Lò hàn để bàn Puhui T-973

Mã sản phẩm: T-937
20.000.000₫
Số lượng

1


Chính sách

Giao hàng toàn quốc

Bảo hành 12 tháng theo tiêu chuẩn nhà sản xuất

Thêm vào giỏ Mua ngay

Cam kết

Hàng mới 100%, chính hãng sản xuất.

Cung cấp đầy đủ chứng từ, hóa đơn, CO, CQ theo yêu cầu

Giao hàng miễn phí toàn quốc với đơn hàng >10 triệu

Hỗ trợ tư vấn, kỹ thuật 24/7

Chi tiết sản phẩm

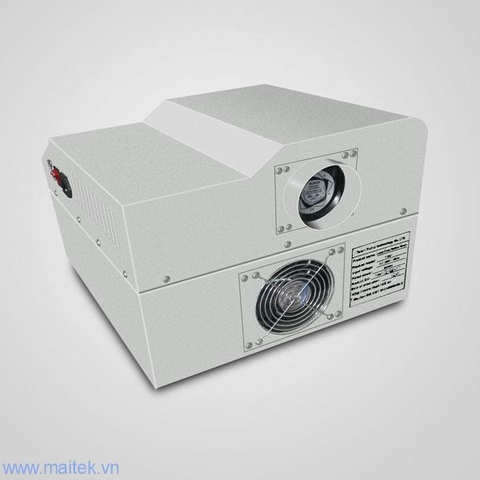

T-937 DGC COMPUTER INTERPHASE LEAD FREE INFRARED IC HEATER

306mmX322mm Area with Digital Control

REFLOW WAVE OVEN







Product Description:

The INFRARED IC HEATER T937 is a micro processor controlled reflow-oven.  It can be used for effectively soldering various SMD and BGA components. It can be used with the Computer Software Interphase or Stand Alone. It can reach Temperatures up to 350 Degrees. The whole soldering process can be completed automatically and it is very easy to use. This machine uses a powerful infrared emission and circulation of the hot air flow, so the temperature is being kept very accurate and evenly distributed.

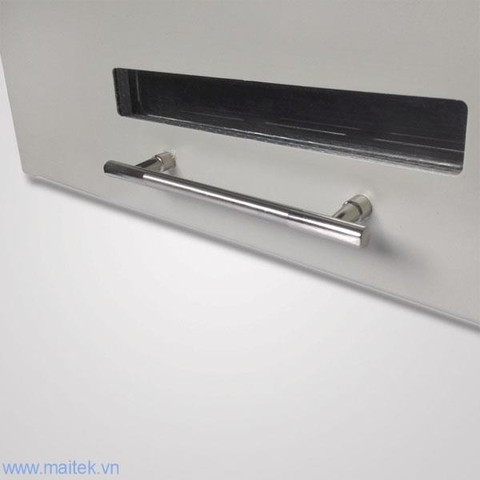

A windowed drawer is designed to hold the work-piece, and allows safe soldering techniques and the manipulation of SMDBGA and other small electronic parts mounted on a PCB assembly. The T937 may be used to automatically rework solder to correct bad solder joints, remove / replace bad components and complete small engineering models or prototypes.

Product Features:

★. (1) A large infrared soldering area

Effetive and bigger soldering area: 306x322mm;this increases the usage range of this machine drastically and makes it an economical investment.

★. (2) Choice of different soldering cycles

Parameters of eight soldering cycles are pre defined and the entire soldering process can completed automatically from Preheat, Soak and Reflow through to cool down.

★. (3) Special heat up and temperature equalization with all designs

Uses up to 2300 Watts of energy efficient Infrared heating and air circulation to re-flow solder.

★. (4) Large number of available funtions

The T937 can solder most boss-eyed or double-face PCB boards small parts, for example CHIP,SOP,PLCC,QFP,BGA etc.It is the ideal rework solution from single runs to on-demand small batch production.

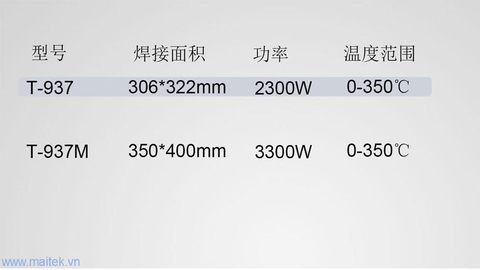

★. (5) Technical Specifications

        ● Maximum soldering area: 306×322mm

        ● Size: 41×37×28cm

        ● Rated Power: 2300W

        ● Processing Time: 1~16min

        ● Power Supply: AC220~230V/50~60Hz

        ● Net Weight: 15.5kg

        ● Tempe Range Ceiling : ~350℃
