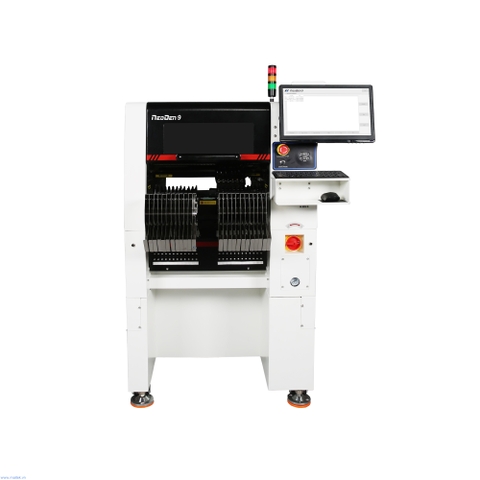

NeoDen9 is a ball screw pick and place machinewith 6 simultaneous pick-up heads, max 53 tape reel feeder capacity, max 14000CPH placement rate,which is suitable forscale pcb assembly production with fast speed and high accuracy.The width of the machine is 80cm, which can enter most doors.
It supports both electric feeder and pneumatic feeder.
The cost of electric feeder is higher, but for 0201 component, you need to select electric feeder.
The cost of pneumatic feeder is lower, you can select it for normal assembly work.
The feeder size: 8mm/ 12mm/ 16mm/ 24mm/ 32mm/ 44mm/ 56mm.
Applicable components: 0201, 0402, 0603, 0805, 1206, 1210, SOP, SSOP, SOC, QFP, QFN, BGA, 3538, 4148 diode, 3535 ball shape LED, 5050 etc
Application industry:household appliances industry, auto electronics industry, power industry, LED industry, security, instruments and meters industry, communication industry, intelligent control industry, internet industry of things and military industry, etc.
Model |
NeoDen9 |
Number of Heads |
6 |
Number of Tape Reel Feeders |
53(Electric/Pneumatic) |
Number of IC Tray |
20 |
Placement Area |
460mm*300mm |
MAX Mounting Height |
16mm |
PCB Fiducial Recognition |
High Precision Mark Camera |
Component Recognition |
High Resolution Flying Vision Camera System |
XY Motion Feedback Control |
Closed loop control system |
XY Drive Motor |
PanasonicA6 400W |
Repeat Position Accuracy |
±0.01mm |
Maximum Mounting Speed |
14000CPH |
Average Mounting Speed |
9000CPH |
X-axis-Drive Type |
WON Linear Guide / TBI Grinding Screw C5 - 1632 |
Y-axis-Drive Type |
WON Linear Guide / TBI Grinding Screw C5 - 1632 |
Compressed Air |
>0.6Mpa |
Input Power |
220V/50HZ(110V/60HZ Alternative) |
Machine Weight |
500KG |
Machine Dimension |
L1220mm*W800mm*H1350mm |
