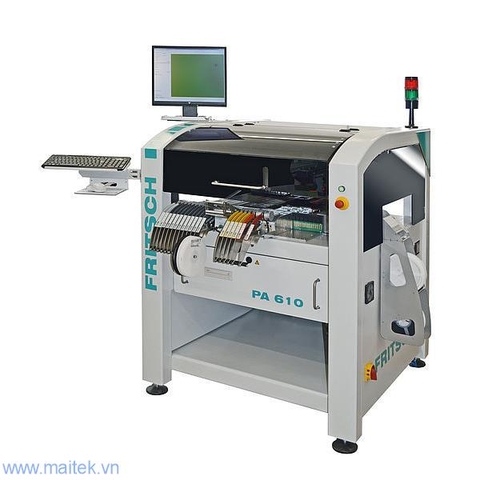

Máy gắp đặt linh kiện placeALL®610
The placeALL®610 has a modular structure and can be used for the assembly of prototypes and small series. With a wide range of handled components, ranging from chips model 01005 up to FP-parts with a
Chính sách bán hàng
Thông tin chi tiết
The placeALL®610 has a modular structure and can be used for the assembly of prototypes and small series. With a wide range of handled components, ranging from chips model 01005 up to FP-parts with a pitch of 0.3 mm and BGAs, even complex tasks can be flexibly assembled.
With a maximum of 208 possible feeder positions and a intelligent software, changeover times can be reduced to a minimum.
Additionally the placeALL® machines can be integrated into an assembly inline-system (like our smartLINE®), which can be operated according to the SMEMA standard.
Range of applications
Assembling and dispensing of low and medium volume SMT, up to 10500 components* per hour.
*with second pick & place head
Feeding units
Feeding of components from tape, stick, tape stripe, tray and loose components.
Component capability
Chips 01005 up to Fine Pitch 80×80 mm and pitch 0.3 mm, BGAs, µBGAs, CSPs, QFNs and custom parts like connectors, wired THT-LEDs etc.
Learn more:
-
Technical Data
- 108 slots for 8 or 12 mm single tapeFEEDER
- max. 208 positions for 8 mm tapes
- max. 2 assembling head
- max. 2 dispensing heads
- optional dividable machine frame
- max. assembling area 520 x 370 mm with FEEDER
- platform 1526 x 1450 x 1327 mm with FEEDER
- standalone or inline
