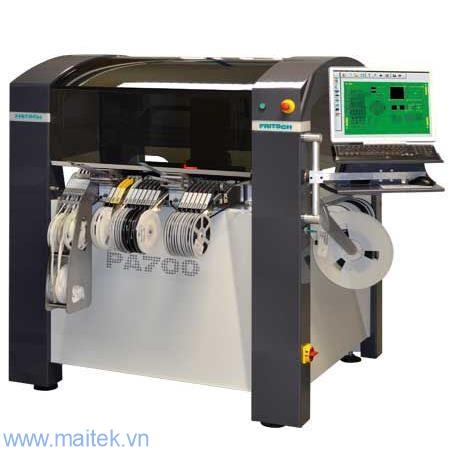

placeALL®700

The placeALL®700 is - based on the most modern technic in axis drive and control and up to four assembling heads - the optimum machine for the flexible and precise SMD production of medium series. It has a modular structure and provides an assembly quantity of up to 14000 components* per hour. Up to 208 possible feeder positions and an intelligent software reduce the changeover times to a minimum. The solid and torsion-free construction ensures an accurate handling of components like Fine-Pitch 0,3 mm, µBGAs and 0201 components. It is applicable as stand-alone machine or built up to a full-automatic line for the SMT production.

The placeALL®700 offers different options for dispensing glue or solder pastes. These can be chosen due to the definition of a job. The available hardware options and software modules like planning, ordering etc. and feeders are the same as placeALL®515/610.

*with 4 assembling heads

Range of applications

Assembling and dispensing of medium volume SMT, up to 14000 components per hour.

Feeding units

Feeding of components from tape, stick, tape stripe, tray and loose components.

Component capability

Chips 0201 up to Fine Pitch 80×80 mm and pitch 0.3 mm, BGAs, µBGAs, CSPs, QFNs and custom parts like connectors, wired THT-LEDs etc.

Technical Data

• 108 Slots for 8 or 12 mm single tapeFEEDER
• max. 208 positions for 8 mm tapes
• max. 4 assembling heads
• max. 1 dispensing head
• max. Assembling area 520 x 370 mm with FEEDER
• platform 1526 x 1450 x 1327 mm with FEEDER
• standalone or inline
