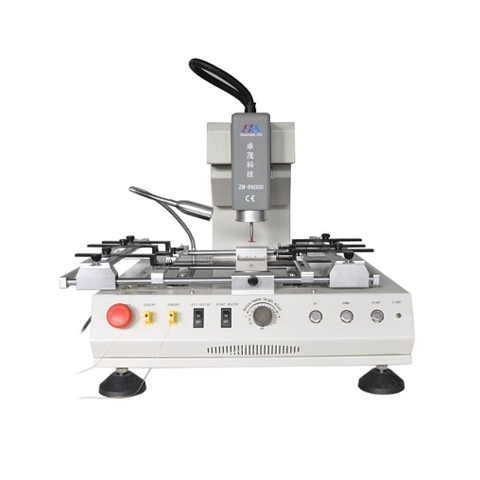

Máy hàn chip set BGA tự động ZM-R6000

Tình trạng: Còn hàng |Thương hiệu: Shenzhen Zhuomao Technology Co., Ltd

IR BGA Rework Station ZM-R6000 operation with computer can save data in the PC
The machine support PC control.
Top hot air heater is controlled by stepped drive, precise and efficient positi

Liên hệ

Ưu đãi

Với các khách hàng đã từng mua hàng tại MAITEK CO.,

Với các khách hàng lần đầu mua hàng tại MAITEK CO.,

Chính sách bán hàng

Hàng chính hãng, bảo hành toàn quốc

Cung cấp đầy đủ chứng nhận CO, CQ

Gọi lại trong 10 phút từ khi nhận liên hệ

Giao hàng toàn quốc nhanh chóng

Hỗ trợ dịch vụ 24/7

Hỗ trợ mua hàng 0906182358

Thông tin chi tiết

The machine support PC control.

Top hot air heater is controlled by stepped drive, precise and efficient position.

3rd infrared heater is composed of carbon fiber Pre-heating system, Offer fast and evenly heating and No light pollution.

1、 Temperature parameters protected by limits of authority, for avoiding error settings.Repair

2、 Ten segments of temperature control process, suitable for all kinds of BGA Rework Station.

3、 Unlimited storage of the temperature profile, just need press one key to use the profile.R

4、 Three K-type sensors available can realize the high precise temperature testing of each point of PCB or BGA, and PC can generate report of curves analysis automatically.

5、 Desoldering and soldering automatically, No need the manual adjustment

6、 BGA rework station ZM-R6000 Hot air flow can be adjustable to meet the demand of any chips

7、 USB Connection driver-free, PC control

8、 The bottom hot air lifting control available in the front panel, BGA machine is convenient to adjust at any time.

1	Power supply	AC 220V 50/60 Hz
2	Total power	Max 4000W
3	Top hot air heater power	800W
4	Bottom hot air heater power	800 W
5	IR preheating power	2400 W
6	Hot air heating temp	400°C(Max)
7	Bottom preheating size	400mm×300mm
8	Max available PCB size	400mm×380mm
9	Available chip size	2×2mm--60×60mm
10	Dimensions	L520×W520×H550
11	Communication	USB Connection, PC Control
12	Test temperature port	3pcs
13	Net weight	Around25kg
14	Color	White
