Máy kiểm tra X ray X6600

Mã sản phẩm: X6600
Liên hệ

Chính sách

Giao hàng toàn quốc

Bảo hành 12 tháng theo tiêu chuẩn nhà sản xuất

Cam kết

Hàng mới 100%, chính hãng sản xuất.

Cung cấp đầy đủ chứng từ, hóa đơn, CO, CQ theo yêu cầu

Giao hàng miễn phí toàn quốc với đơn hàng >10 triệu

Hỗ trợ tư vấn, kỹ thuật 24/7

Chi tiết sản phẩm

Application

Surface mount device

Electronic component

Plastic Products

PCBA solder joint detection (BGA, CSP, POP, QFN and other components)



Standard Configuration



Name

QTY(Pcs)

Remark

90KV-5um close X Tube

1

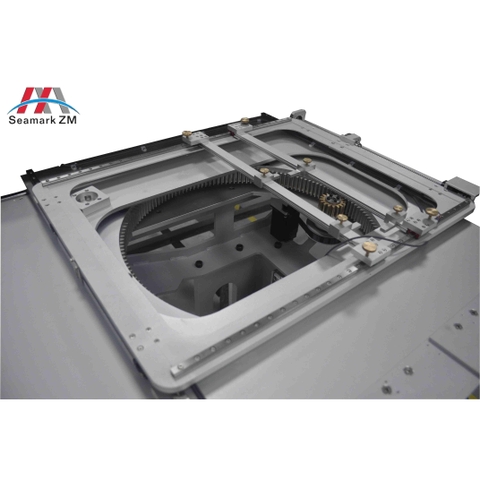

Object Stage

1

Size:640*540MM

Flat Panel Detector

1

Full digital HD

Image processor CPU

1

Fully functional

Liquid crystal display

1

24"





Object Stage Control
1. by the spacebar to adjust stage speed: slow, constant and fast speed
2. Keyboard control X, Y, Z three-axis motion and inclined angle
3. The user can control the stage speed and angle programmatically

4.Large navigation window, easy to locate and identify defective products
5.Click on the mouse to controlled stage

6.Visual screen with floating button

7.through mouse control stage in the Visual screen



Full Automatic BGA Testing Procedures
1. A simple mouse click programming without the need for operator intervention on the component can detects each BGA automatically.
2. Automatic BGA test, accurately check the bridge, Welding, cold welding and void ratio of BGA.
3. Automatic BGA test repeatable test results in order to process control
4. The test results will be displayed on the screen and can be output  to Excel to facilitate review and archiving

NC Programming
1.A simple mouse clicks operation write test procedures
2.The stage can be X, Y director positioning; X-ray tube and detector Z positioning.
3.Software setting voltage and current
4.Image settings: brightness, contrast, auto gain and exposure
5.The user can set the program switch pause time

6.Anti-collision system can meet the maximum tilt and observe objects

7.Automatic analysis of BGA diameter, void ratio, area and roundness



1

X-RAY launch tube

Tube type

Closed X-ray tube

2

X-RAY launch tube

Maximum tube voltage

90kV(90kV,100kV,110kV,120kV optional)

3

X-RAY launch tube

Maximum tube current

0.12mA

4

X-RAY launch tube

Focal size

5 um

5

X-RAY launch tube

Magnification

Geometric magnification: 150 X

System magnification: 1000X

6

Detector

Image speed

20 fps

7

Detector

Resolution

1124*1000

8

Detector

Slope angle

Stage 60°Rotation

9

Cabinet Specifications

Stage size

640mm*540mm

10

Cabinet Specifications

Dimension

1360mm*1685mm *1630mm

11

Cabinet Specifications

Net weight

900kg

12

Cabinet Specifications

Input voltage

AC 110-220V(+10%)(international standard power supply)

13

X-ray leakage amount



≤1 u Sv/h

14

operating system



Windows 7

15

Total power



1.5Kw



Typical X-Ray Applications

1> 2D imaging

2> Color image



3>Circuit Board Inspection.Circuit board testing automated testing of BGA welding area, bubbles and air (Open), short circuits, offset, round, Tin lost the ball.



Bridging, standard BGA bridge (cause: solder paste too much solution: check the press machine)



Cold Solder, Standard BGA Cold Welding (Possible Cause: No Melting Temperature Solution: Check Reflow )



Check the solder paste, BGA open (Possible reasons: solder printing problems, solder missing, poor solderability. Solution: Check the press)



4>Semi-Conductor,Internal wire bonding inspecetion



5>Inspection ofinternal part of a capacitor.



6> Lithium battery detection.Measuring the distance between the cathode and cathode of the lithium battery



7>Detection of electric heating tube

Check the quality of the resistance wire inside the heating tube



8>  Detection of automobile tubing

Detection the cracks inside the tubing, cracks, damage
