Shenzhen Zhuomao Technology Co., Ltd

Máy quét keo tự động ZM-300ED

Mã sản phẩm: ZM-300ED
Liên hệ

Chính sách

Giao hàng toàn quốc

Bảo hành 12 tháng theo tiêu chuẩn nhà sản xuất

Cam kết

Hàng mới 100%, chính hãng sản xuất.

Cung cấp đầy đủ chứng từ, hóa đơn, CO, CQ theo yêu cầu

Giao hàng miễn phí toàn quốc với đơn hàng >10 triệu

Hỗ trợ tư vấn, kỹ thuật 24/7

Chi tiết sản phẩm

Features:

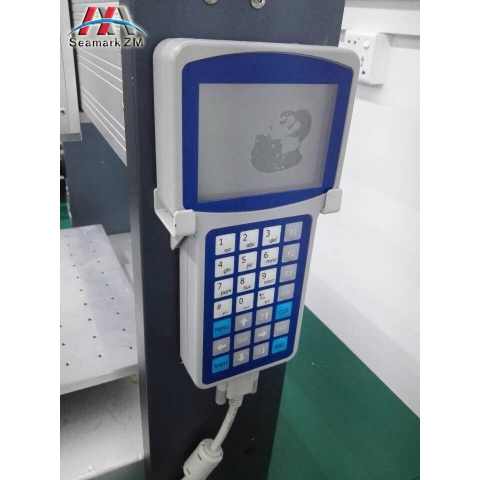

1、Operation with handheld LCD panel teach box, which is easy to program and learn.

2、Functions of drawing points, lines, surfaces, arc, circle and consecutive interpolation of irregular curves, is to realize any 3D non planar trajectory path.

3、Excellent teaching function, Supporting: array, graphical browsing three dimensional elliptic, common graphical library inserting, group editing and so on..

4、  MINISD file storage with high speed and2Gcapacity can store 999 dispensing process documents.

5、The size of glue, speed of glue spread, dispensing time, and time of halting dispensing can be set by parameters.

6、 With special dispensing controller, glue outflow is quite stable without leaking and dripping.

7、 The function of automatic gel prevention can effectively prevent glue curing from jamming needle head.

8、Powerful PC compatibility with the Logoshop software, It can import mainstream design software, such as cave, Auto CAD, Coral Draw etc.,  to generate a variety of file formats. Such as NC, .AI, DXF, .JPG, .BMP, scanner etc..

9、It is applied to fluid dispensing, such as, UV glue, AB glue, COB(black glue), white glue, EMI conductive glue, silicon, epoxy resin, instant glue, silver glue, red glue, paste, thermal grease, welding control paste, transparent paint, screw fixative and so on.



Application industry

1, The electronics industry

Encapsulation mobile phones key point glue, battery, laptop battery encapsulation, computer speaker/receiver, coil dispensing, PCB dependend sealant, IC sealant, horn outside marks glue, sealant, PDA LCD sealant, IC packaging, IC bonding, casing of adhesive, optics processing, circuit component and the substrate adhesive, printed circuit board glue



2, lighting industry



Led fluorescent powder dispensing led drive power supply heat conduction potting, hard light, soft article lamp potting, the ball bubble lamp, floodlight, such as sealing, led street lamps adhesive seal Wash the wall lamp, project-light lamp, lawn lamp, outdoor lamp potting, led lamp holder potting, led shoot the chimney and lamp cup adhesive seal.



3, the car industry



Lamp encapsulation, electric vehicle controller encapsulation, filters, oil filter, diesel filter, air filter), body and roof reinforcement plate coating, brake shoe, clutch and transmission belt potting, Windows sealed, plastic board, radiator tanks glue, glue filling auto sensor, automotive electronics and automotive electrical, instrumentation potting protection, mechanical parts such as mechanical seal coating.



4, Industrial electrical

Capacitors,  transformers, relays, buttons, other adhesive sealing, motor coil coating,  and electric glue cupboard door sealing side.



5,Solar photovoltaic (pv)

Photovoltaic inverter heat conduction potting, potting solar battery box, solar component potting.



6,Construction engineering

Heat insulation aluminum, steel, aluminum honeycomb panel, building plank, fire doors, security doors, coating.

Hardware/home appliances/commodity/etc



Configurations:

Title

Unit

QTY

Remark

Motor

kit

3

Micro stepping motor

High precision dispensing valve

pc

1

Optional

Movement controller

kit

1

Second automatic

Automatic dispensing software

kit

1

Second independent R&D

 Precise dispensing controller

kit

1

Optional
