Trạm hàn BGA Puhui T-870A

Mã sản phẩm: Chưa rõ

8.500.000₫

Số lượng

Chính sách

Giao hàng toàn quốc

Bảo hành 12 tháng theo tiêu chuẩn nhà sản xuất

Thêm vào giỏ Mua ngay

Cam kết

Hàng mới 100%, chính hãng sản xuất.

Cung cấp đầy đủ chứng từ, hóa đơn, CO, CQ theo yêu cầu

Giao hàng miễn phí toàn quốc với đơn hàng >10 triệu

Hỗ trợ tư vấn, kỹ thuật 24/7

Chi tiết sản phẩm

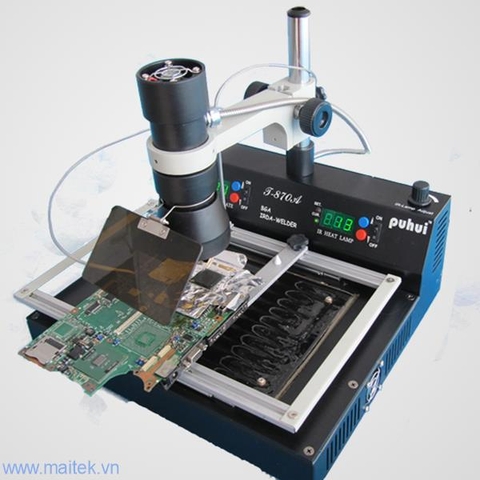

T-870A DGC 2IN1 DIGITAL INFRARED SYSTEM

BGA/IRDA/IFR/SMD/SMT WELDER

ULTRA REWORK REFLOW SOLDERING STATION

USES: PERFECT FOR DESKTOP BOARDS - GAME CONSOLES - ALL KIND CHIPS

Check this Video Tutorial 1 about this Station

Features:

★. (1) Use of infrared welding technology which is developed independently.

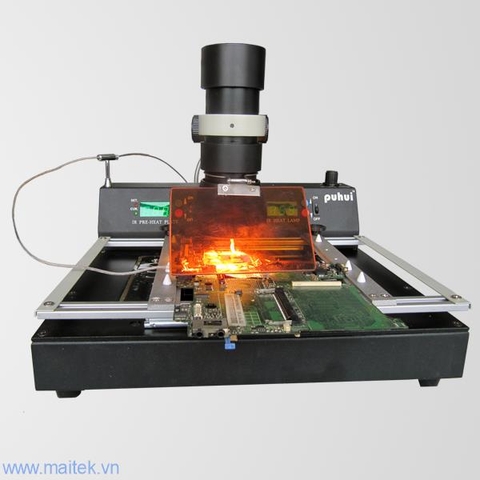

★. (2) Use of an infrared heat lamp. Heat is easy to pierce and distribute evenly. which overcomes disadvantage (burn out elements) of traditional welding machines.

★. (3) Easy operation. You just need one-day training and you can operate it skillfully.

★. (4) No need for unsolder tools. This machine can unsolder all computers between 5-50mm. ( Remember use Insulation tape around small chips under 40mm)

★. (5) This machine has 800W hot-melt system. Its preheating area is 240×180mm

★. (6) Infrared heating without heated air flowing. No impact on circumjacent small elements. It is suitable for all of the elements,especially Micro BGA components.

★. (7) The T-870A is suitable for a variety of computers, notebooks and the rework or repair computer architecture.

Technical Parameters

Work floor size	360X240mm
Rated voltage and frequency	AC220-230v 60/50Hz
Complete machine power	1000W
Infra-red lamp body power	150W
Preheating chassis power	800W
Infra-red lamp body heating size	Ø70mm(50×50mm)
Preheating chassis preheating size	240×180mm
Infra-red lamp body temperature range	200 -350
Preheating chassis temperature range	60 -200

List of content

Welding table main body	1
Infra-red lamp body	1
Temperature sensor	1
Board support of the circuit	1
Power cord	1
User's manual (Compact disc)	1

Description of the main parts:

(1) Welding table main body

(2) Front Panel

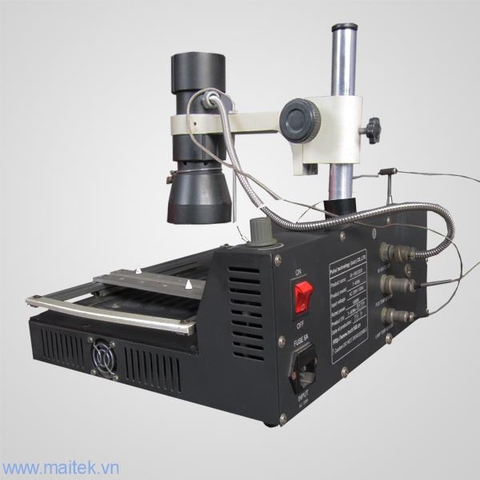

(3) Back Panel

(4) Focusing support and lamp body

(5) Circuit board support

The Puhui T-870A soldering/rework station from Puhui Technologies, an entry level desoldering/soldering rework station for surface or hole mount components. With T-870A, you get a temperature controlled rework welder station with all the enhancements including IRDA preheating surface, Infrared centered or dissipated preheating, and Soldering Iron. All controllers are fully digital.

FOR BGA, use the IRDA Ceramic preheating plate and your Infrared light gun for the Mini BGA chips or chips secured by hooks in the middle of the chips, for turbo car chips or controlling speed chips is special to mount, dismount and make controlling boards.

This rework station is ESD-Safe and it is made of metal and coated with a static-dissipative paint and allows for Soldering and desoldering BGA, Mini BGA, QFP, SOP, PLCC or SOJ.
