System Summary

Footprint

1080(W)×1180(D)×1730(H)mm

Machine Weight

1050 kg

Power Supply

AC 110~220V, 50/60Hz

Plywood Packing Size

1500(W)×1300(D)×1950(H)mm

Packing Weight

1160 kg

Power Consumption

1.0 kW

X-Ray Tube

Tube Type

Sealed

Max. Power

8W

Voltage

0~90kV (Adjustable)

Focus Spot Size

5μm

Imaging System

Detector

Flat Panel Detector (option 4’’ i.i. Detector)

Pixel Size

85μm

Effective Detection Area

130*130mm

Frame Rates

20fps

Pixel Matrix

1536*1536

System Magnification

600X

Software

Auto-measuring

BGA Soldering Voids Auto-measuring and Support Data/Graphic Output

Multiple Measuring Tools

Support Measuring Distance, Angle, Diameter, Polygon, PTH filling rate, etc.

CNC Mode

CNC Programmable Inspection, Easy Operation and User Friendly

Real-time Display

Real-time Displaying the Working Data of Voltage, Current, Angle, Date, etc

Navigation

Laser Locator for Precise Location

Motion Control System

Movement Control

Joystick, Keypad & Mouse

Max. Loading Area/Weight

510*420mm / 10kg

Max. Inspection Area

435*385mm

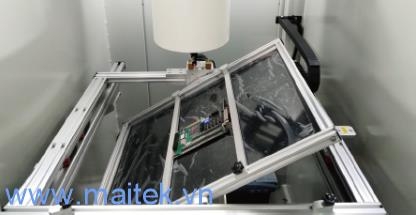

Oblique Views

Max. ±60°

Manipulator

5-axis with X / Y / Z1 / Z2 / T

Industrial PC

Monitor

22’’ FHD LCD Display

System OS

Windows 10 64bit

Hard disk

1TB

RAM

8GB

CPU model

Intel i7 Processor

Other Features

Energy Saving

X-Ray Auto-off when it's out of work over than 5 minutes

Safety Operation

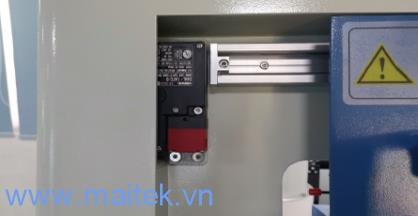

Electromagnetic Interlock and warning Light

Portable Design

Mounted with Wheels on Machine Bottom

X-Ray Safety

<1μSv/h (Meets All International Standards)
