Bàn gia nhiệt hồng ngoại Puhui T-8280

Mã sản phẩm: Chưa rõ

3.300.000₫

Số lượng

Chính sách

Giao hàng toàn quốc

Bảo hành 12 tháng theo tiêu chuẩn nhà sản xuất

Thêm vào giỏ Mua ngay

Cam kết

Hàng mới 100%, chính hãng sản xuất.

Cung cấp đầy đủ chứng từ, hóa đơn, CO, CQ theo yêu cầu

Giao hàng miễn phí toàn quốc với đơn hàng >10 triệu

Hỗ trợ tư vấn, kỹ thuật 24/7

Chi tiết sản phẩm

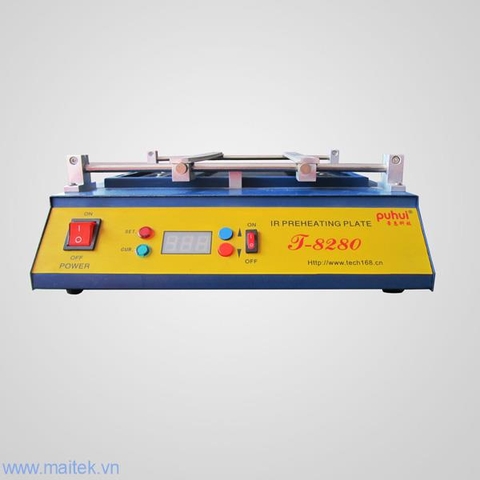

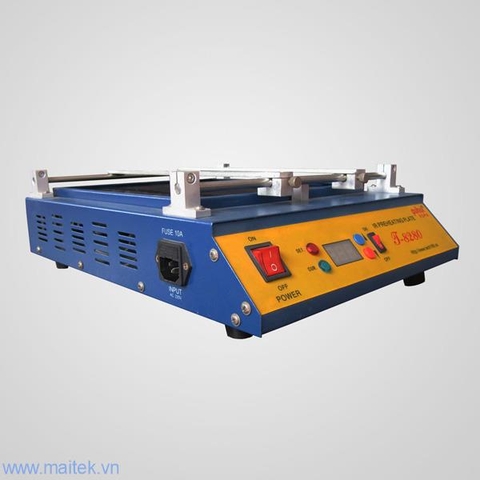

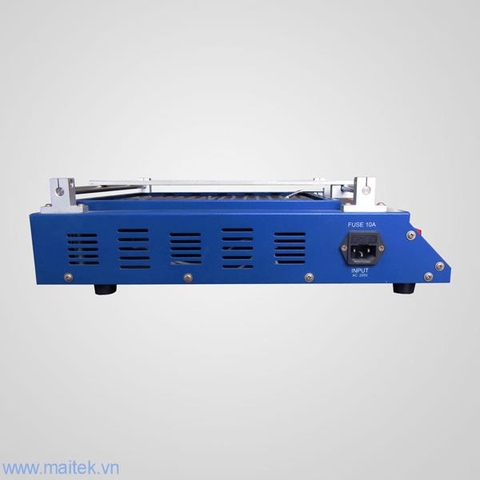

IR-PREHEATING PLATE T-8280

STAND ALONE ( CAN BE USED WITH ANY TOP HEATER - HOT AIR OR INFRARED )

Features:

★. (1) This machine selects the infrared component to give off heat which independent exploration, adopts advanced PID intelligent temperature, controls temperature precisely.

★. (2) T-8280 can achieve to heat PCB board and component which contains lead or not，especially for the BGA and SMD parts.

★. (3) Use infrared heat, easy to cut through, heat proportion, don’t have sirocco flow. Don’t shift the small components on the PCB board，ensure the welding quality.

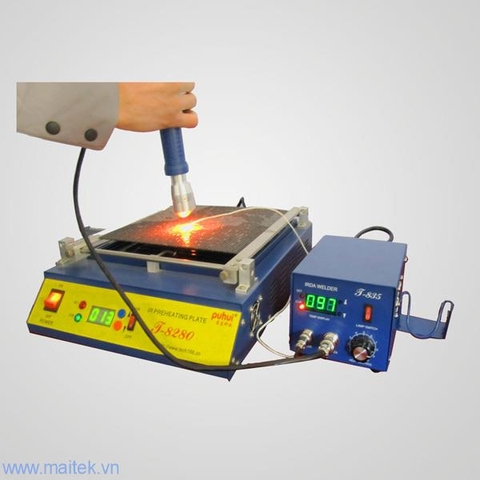

★. (4) This machine has 600W heating system, widely to 280x270mm.Can use together with the handhold infrared welder T-835.

★. (5) Easily operate, you can operate it through easy training.

Technical Parameters

Work bench size	410x316mm
Rated voltage and frequency	AC220-230v/AC110V 60/50Hz
Complete machine power	1600W
Preheating plate power	1500W
Preheating plate size	280x270mm
Preheating plate temperature adjustable	0-450℃

Main Components

Preheating plate main body	1
Temperature sensor	1
PCB board holder	1
Power line	1
User manual (compact disc)	1
