Neoden Technology Corp.LTD

Băng tải J08

Mã sản phẩm: NeoDen J08
Liên hệ

Chính sách

Giao hàng toàn quốc

Bảo hành 12 tháng theo tiêu chuẩn nhà sản xuất

Cam kết

Hàng mới 100%, chính hãng sản xuất.

Cung cấp đầy đủ chứng từ, hóa đơn, CO, CQ theo yêu cầu

Giao hàng miễn phí toàn quốc với đơn hàng >10 triệu

Hỗ trợ tư vấn, kỹ thuật 24/7

Chi tiết sản phẩm

Product Details

Application:

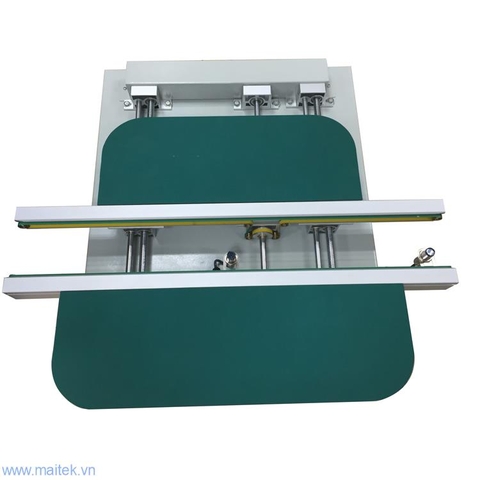

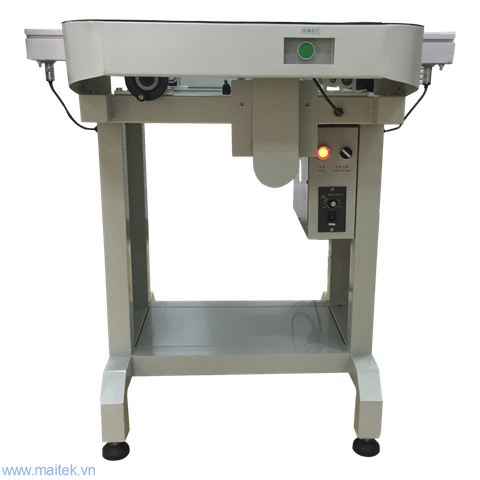

The External PCB conveyor( J-08) is Used for linking PCB equipments together, Visual Inspection stage in the Quality analysis process of any Electronic product development process, or even can use in the Manual PCB assembling or PCB buffering Functions

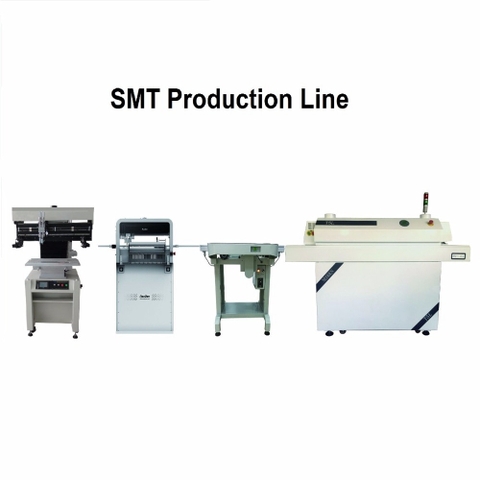

It could help operator transfer pcb from pick and place machine to oven automatically.

And operator can press pause to stop the transportation for PCB placement checking before soldering.

Features:

1.precise adjustment of width

2.smooth running, PCB won`t be stuck.

3.speed adjustable

Parameter



Power supply

Single Phase 220V 50/60HZ 100W

Conveyor  Length

80 cm

Conveying Belt

ESD belt

Conveying speed

0.5 to 400mm/min



Specification



Packing Size (cm)

87*72*24

PCB available width (mm)

30-300

PCB available length (mm)

50-320

G.W. (kg)

49



Package: Wooden case

Our products are sold to worldwide.

We support DHL/TNT/UPS/FEDEX/EMS or customer appoint

Our main payment is 100% T/T in advance before shipping,we will inform you the shipping details after we shipped the goods.

Warranty

The machine has a warranty period of 1year from the time of purchase and lifelong service support as well as a long-term factory price supply. We provide online Q/A and troubleshooting support and technical advice service.
