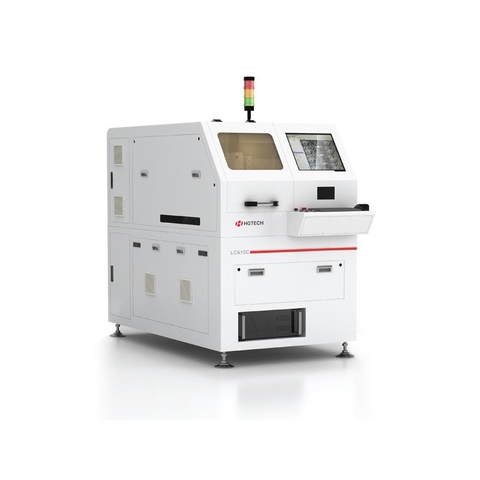

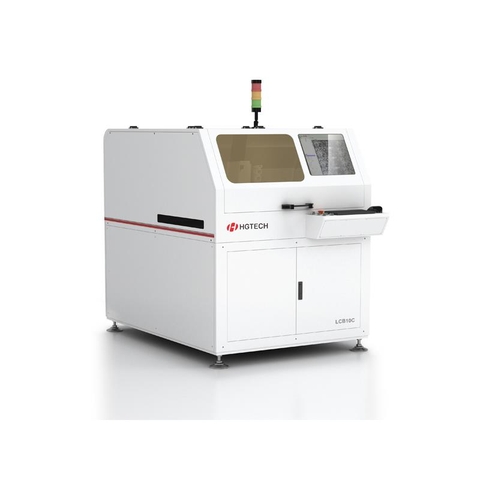

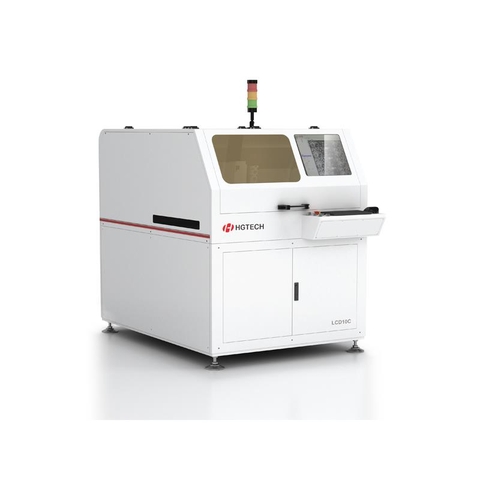

PCB Laser Marking Machine

PCB Laser Marking Machine from HGLASER is designed for bar codes marking, 2D codes and characters, graphics and other information on any kinds of printed circuit board. Integrated with high-performance CO2 / Fiber laser source, import high-pixel CCD camera and micron-level mobile module, PCB Laser Marking Series is competent to pre-marking automatic positioning and post-marking feedback reporting.

PCB Laser Marking Machine can record PCB information by marking serial number and barcode for quality control of electronic product.

PCB Laser Marking Machine

		LCA10/30C-S3	LCA10/30C-S5	LCB10/30C-S5	LCB10/30C-D5
	laser source	CO2/Fiber	CO2/Fiber	CO2/Fiber	CO2/Fiber
Laser	laser wave length	10600nm/1064nm	10600nm/1064nm	10600nm/1064nm	10600nm/1064nm
Laser	Output Power	30±0.5W	10±0.5W	10±0.5W	30±0.5W
Processability	processing area	300mm*300mm	500mm×500mm	500mm×500mm	500mm×500mm
	Repositioning resolution	±0.1mm	±0.1mm	±0.1mm	±0.1mm
	Min. Line Width	<0.15mm	<0.1mm	<0.1mm	<0.15mm
	Min. Character Height	<0.3mm	<0.2mm	<0.2mm	<0.3mm
Configuration	Working Table	Turn-over mechanics	X-Y linear module	X-Y linear module	X-Y linear module
	Positioning System	paraxial CCD camera	paraxial CCD camera	paraxial CCD camera	paraxial CCD camera
	Control System	IPC	IPC	IPC	IPC
	auxiliary control system	Mitsubishi PLC	Mitsubishi PLC	Mitsubishi PLC	Mitsubishi PLC
	External auxiliary device	Negative pressure suction dust-exhaust system	Negative pressure suction dust-exhaust system	Negative pressure suction dust-exhaust system	Negative pressure suction dust-exhaust system
Operating Conditions	voltage	220V	220V	380V	380V
	frequency	50KHz	50KHz	50KHz	50KHz
	Capacity	3KVA	2.5KVA	6KVA	5KVA
	phase	2	2	3	3
	operating temperature	15-30℃	15-30℃	15-30℃	15-30℃
	operating humidity	＜50％	＜50％	＜50％	＜50％
	Equipment Size	700mm×1300mm×1700mm	1500mm×1740mm×1900mm	1700mm×1400mm×1500mm	2300mm×1900mm×1600mm
