Đế gia nhiệt HOTPLATE 04

Mã sản phẩm: Chưa rõ
Liên hệ

Chính sách

Giao hàng toàn quốc

Bảo hành 12 tháng theo tiêu chuẩn nhà sản xuất

Cam kết

Hàng mới 100%, chính hãng sản xuất.

Cung cấp đầy đủ chứng từ, hóa đơn, CO, CQ theo yêu cầu

Giao hàng miễn phí toàn quốc với đơn hàng >10 triệu

Hỗ trợ tư vấn, kỹ thuật 24/7

Chi tiết sản phẩm

HOTPLATE 04

HOTPLATE 04 is a flat and powerful under heater. Fast temperature ramp-up rates of up to 2°C/s allow efficient work on heavy electrical systems with flat bottom surface. The heating power of 700 W is sufficient for heating up heavy, metallic substrates to high temperatures. This allows for rework and cleaning within LED applications to be carried out optimally with the manual soldering iron. The high temperature homogeneity over the hot plate area prevents unwanted local hot spots and ensures safe operation. The intuitive menu navigation allows for the under-heating system to be set to a consistent temperature.The innovative heat management provides highest temperature repeatability and maximum stability. Furthermore, the under-heating system can control devices (e.g. for removal by suction) or configure them in such a way that they become activated by external devices (SPS or foot switches), for which there are electrical interfaces.

Product variants in the shop

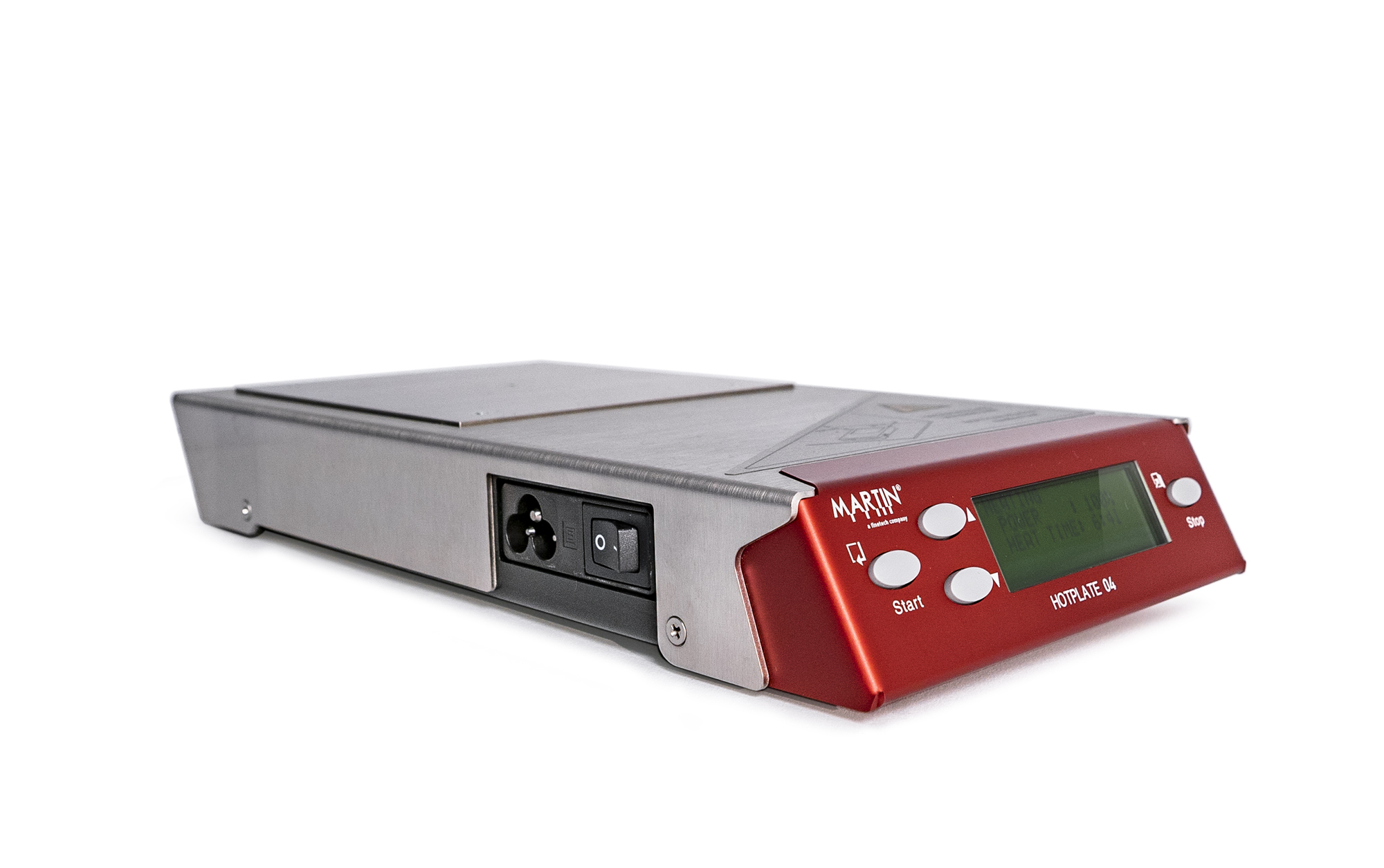

Hotplate-04-perspective03

HB00.0041 HOTPLATE 04 - 700 W, 230 V

x 1 auf Anfrage

Hotplate-04-perspective03

HB00.0042 HOTPLATE 04 - 700 W, 115 V

x 1 auf Anfrage

Content

  • Under heater HP04
  • Manual

Technical details

Power consumption:

720 VA



Power under-heating system:

700 W

Resistive heater

Size under-heating system:

115 x 125 mm2



Temperature range:

50 °C – 300 °C

1°C steps

Temperature homogeneity:

+-5°C @ 300°C




Mains:

1 Phase, 85 – 250 VAC, 50 - 60 Hz



Cooling:

Electrically, 2 x fans



Dimensions:

150 x 300 x40 mm3



Weight:

800 g



Downloads

Device flyer 0.6 MB  Download

modules & attachments

Martin-1240-Hot Air Temperature Meter HTM 06

HT00.0001 Hot Air Temperature Meter HTM 06

x 1 auf Anfrage

Martin-4302-Flux Creme lead free 18g

HT00.0119 Flux Creme lead-free 18g

x 1 auf Anfrage

Martin-4302-Flux Creme lead free 100g

HT00.0117 Flux Creme lead free 100g

x 1 auf Anfrage

Martin-4304-Flux Pen lead free

HT00.0009 Flux Pen lead-free

x 1 auf Anfrage

Martin-4311-SMD Adhesive

VD90.1009 SMD Adhesive 5ccm

x 1 auf Anfrage
