Hệ thống bơm keo thông minh Martin SMART DISPENSE 06 DPH

Mã sản phẩm: Chưa rõ
Liên hệ

Chính sách

Giao hàng toàn quốc

Bảo hành 12 tháng theo tiêu chuẩn nhà sản xuất

Cam kết

Hàng mới 100%, chính hãng sản xuất.

Cung cấp đầy đủ chứng từ, hóa đơn, CO, CQ theo yêu cầu

Giao hàng miễn phí toàn quốc với đơn hàng >10 triệu

Hỗ trợ tư vấn, kỹ thuật 24/7

Chi tiết sản phẩm

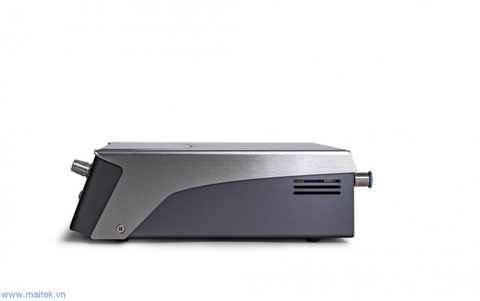

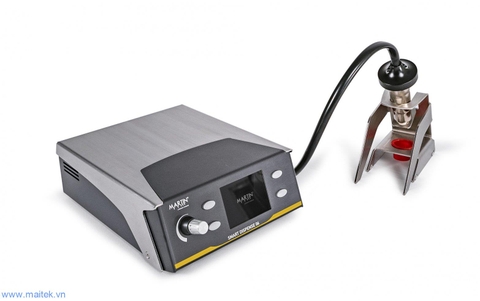

SMART DISPENSE 06 DPH

The SMART DISPENSE 06 is a professional dispensing device for manual tasks where high precision and repeat accuracy are essential.These dispensers also allow heating the dispensing nozzle. A temperature sensor inside the dispensing pen measures the cartridge temperature. Temperature insulated dispensing pens are available for common cartridge sizes in order to prevent the material from heating up during the dispensing application. When highly viscous materials are used, the viscosity setting can be adjusted in the dispensing pen via an optionally integrated nozzle heater. Furthermore, 1K material can be processed reliably, whether in liquid or paste form. For materials with a low viscosity, the formation of drops on the dispensing needle is prevented through a manual retract vacuum.

Product variants in the shop

Martin-SmartDispense06 set DP

SD06.0202 SMART DISPENSE 06 Set DPH 5

x 1 auf Anfrage

Martin-SmartDispense06 set DP

SD06.0203 SMART DISPENSE 06 Set DPH 10

x 1 auf Anfrage

Content

  • Control unit SMART DISPENSE 06
  • Dispensing pen (size of choice) with integrated temperature sensor, nozzle heater and connecting cable (1.5m)
  • Stand for dispensing pen, foot switch, needle set (27pcs)
  • Pneumatic hose (d=6mm, l=5m)
  • Power supply 90–230 V AC -> 24V DC
  • USB cable
  • Short instruction

Technical details

Cartridges to use: 3, 5, 10, 30 ccm
Viscosity Range: 0.1-10⁵ mPas
Nozzle heater: Max. 90°C

Dot dispense settings: Time range: 0,01 s -2 s (±0,0005s)
  Pressure range:

0,2 bar – 4,5 bar

  Repeatability:

5 % (Pressure level)

  Smallest dispensing volume:

2nl


Liniendosieren: Time range:

0,1 s - 999 s

  Pressure level:

0,2 - 3,5 bar


Communication: USB 2 (Typ B)
Weight: 1,5 kg max
Size: 192 x 152 x 60 mm³

Options

Retract vacuum: Manual

Downloads

Device flyer 0.8 MB  Download

modules & attachments

martin-image-placeholder

SD06.0050 Vacuum module SD06

x 1 auf Anfrage

Martin-2801-Dispensing pen

PD80.1011 Dispensing pen 3ccm

x 1 auf Anfrage

Martin-2801-Dispensing pen

PD80.1012 Dispensing pen 5ccm

x 1 auf Anfrage

Martin-2801-Dispensing pen

PD80.1013 Dispensing pen10ccm

x 1 auf Anfrage

Martin-2801-Dispensing pen

PD80.1014 Dispensing pen 30ccm

x 1 auf Anfrage
