FLYING PROBE TESTERS -

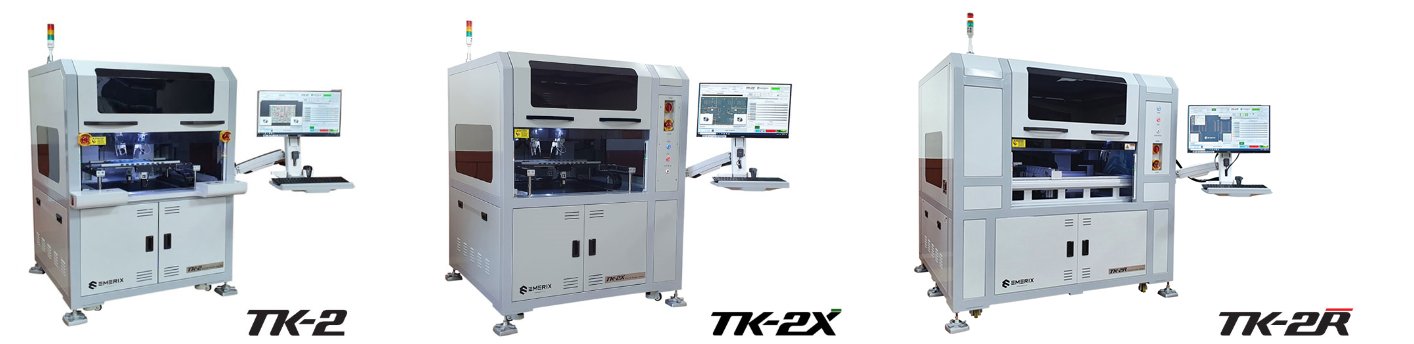

TK Series Flying Probe Testers
COMPARE MODELS
|
|
TK-2 |
TK-2X |
TK-2R |
|
UUT Probing |
Single Side |
Single Side |
Single Side |
|
Probe Flying Heads |
Dual |
Dual |
Dual |
|
Footprint (L x W x H) |
1200x1100x1700mm |
1350x1350x1730mm |
1600x1500x1750mm |
|
Board Thickness (mm) |
4.5T |
8.0T |
8.0T |
|
Max. Board Size |
380x240mm |
440x470mm |
670x670mm |
CORE TECHNOLOGY AND ADVANCED MECHANICS
| Dual Head Flying Probe Tester |
| New Design of X-Y-Z with High Speed Controllers |
| Fast, Accuracy and Precision |
| Mechinaical Stability for Long Time |
| Fixtureless and New Developed of Board Clamping Mechanism |
| No Compressor Required |
| Quick-Soft Touch Technology |
| Automated Calibration, Teaching and Debugging |
| Barcode Reading 1D and 2D |
| Optimaized Probe Routing |
| Easy Operation of Software |
| Faulty Location Alert Indication |
| All-In-One Test Equipment Provides Core Testing Solutions for all Component Units |
HIGHLIGHTS
| Automated Target Board Image DWG |
| Partial Area Test & Plan |
| Group Test |
| Probing Speed Controls |
| Full Test Data Stored in CSV format for Off-Line Analysis |
| Auto Laser Height Sensor |
| Build In Self-Test |
| User Friendly GUI |
| No Need for Expert Technician to Operate |
| Easy Installation of Plug and Play |
| Full Safety Guard for the Operator |
| High Test Coverage |
| The Most Affordable Price in Flying Probe Tester Market |
