Hệ thống sửa chữa bo mạch Martin EXPERT 04.6 IXH

Mã sản phẩm: Chưa rõ
Liên hệ

Chính sách

Giao hàng toàn quốc

Bảo hành 12 tháng theo tiêu chuẩn nhà sản xuất

Cam kết

Hàng mới 100%, chính hãng sản xuất.

Cung cấp đầy đủ chứng từ, hóa đơn, CO, CQ theo yêu cầu

Giao hàng miễn phí toàn quốc với đơn hàng >10 triệu

Hỗ trợ tư vấn, kỹ thuật 24/7

Chính sách bảo hành tiêu chuẩn và gia hạn bảo hành theo yêu cầu.

Chi tiết sản phẩm

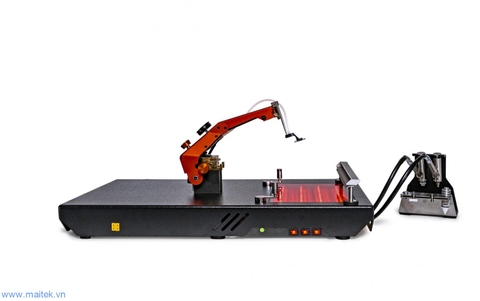

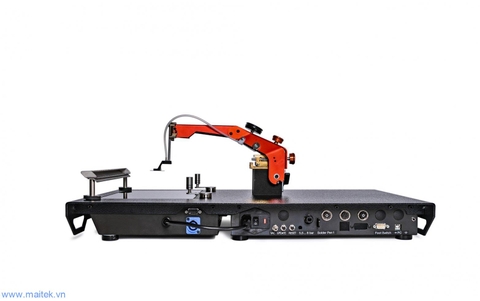

EXPERT 04.6 IXH

The EXPERT 04.6 IXH Rework station provides the ideal support for manual rework tasks. Its compact design provides all functions necessary for the reworking process, from desoldering, placing and soldering in components as well as removing old solder. Aligning and placing components can be done reliably, and MARTIN’s tried-and-tested heating technology guarantees the optimal soldering results. The Rework stations are controlled by EASYSOLDER 07 software, through which a clear and structured overview is provided of all profiles and configurations within the repair process.An infrared under-heating system is integrated into the workstation to provide the ideal conditions for the respective areas of application. And the precise and efficient hot-air top heater complements the overall heating concept. Furthermore, the Auto-Profiler included within the software automatically aligns the top- and under-heating system to your desired process parameters.

Product variants in the shop

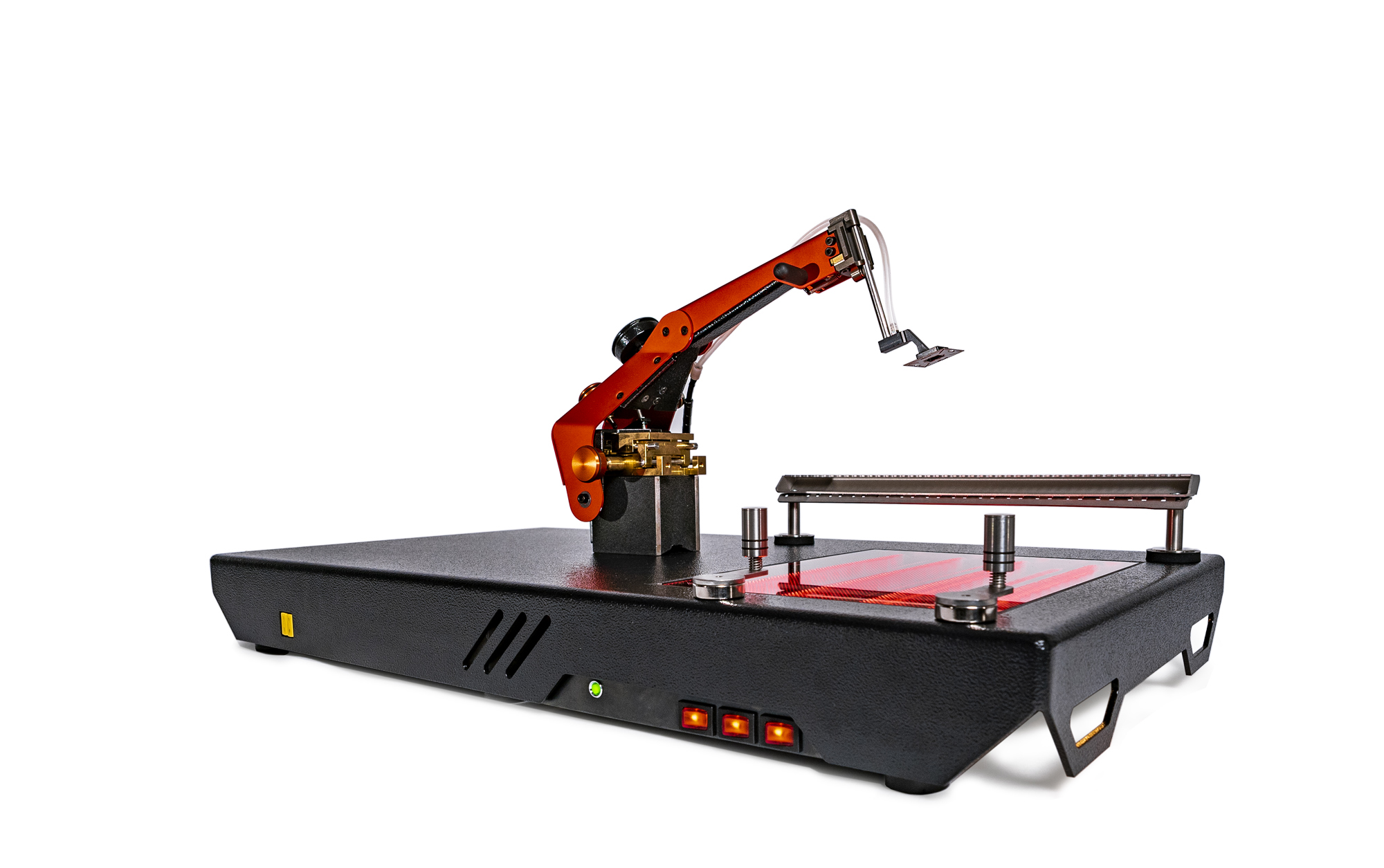

Martin-Expert4.06 persp01

HA00.4087 EXPERT 04.6 IXH

x 1 auf Anfrage

Content

  • Two pens with magazine for soldering, residual solder removal and placing
  • Set of placement nozzles for SHP arm (3 pcs)
  • Two solder nozzles 4 and 7 mm, BGA soldering tool 27x27 mm²
  • Two thermocouple sensors (Type K)
  • Two PCB magnet holder 40.5 mm (standard)
  • PCB magnet holder rail 40.5 mm
  • Rework ABC and manual
  • Intuitive software EASYSOLDER 07 with touch integration

Technical details

Power consumption:

2,500 VA



Power solder pen:

300 W, 35 l/min



Power under-heating system:

500-2000 W

4 x IR-lamps

Max. PCB size:

200 x 260 mm2




Mains:

1Phase, 230VAC, fused 16A



Pressurized air:

5-8 bar, 100 l/min

clean, dry air

Dimensions:

660 x 360 mm2



Size underheating system:

185 x 245mm²



Downloads

Device flyer 0.9 MB  Download

modules & attachments

Martin-1230-Tape feeder 8mm

SF42.0301 Tape feeder 8mm

x 1 auf Anfrage

martin-image-placeholder

SF44.0501 APP Tool Pedestal

x 1 auf Anfrage

Martin-1403-APP Tool Printer, Pedestal, Squeegee

SF44.0502 APP Tool Printer

x 1 auf Anfrage

Martin-1403-APP Tool Basic Dipp

SF44.0503 APP Tool Basic Dipp

x 1 auf Anfrage

Martin-1403-APP Tool µSMD Pocket, Pedestal

SF44.0504 APP Tool µSMD Pocket

x 1 auf Anfrage
