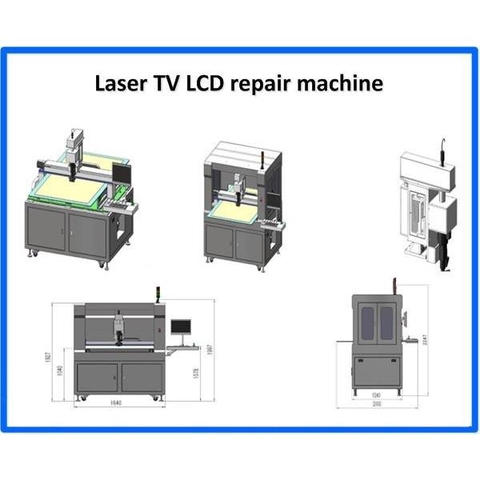

Hệ thống sửa chữa TV LCD ZM-L80

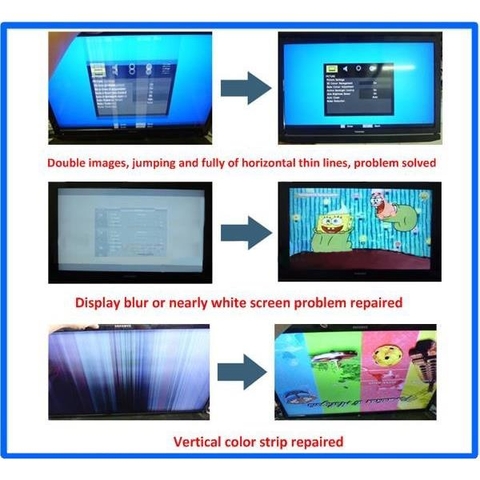

1.Point，line (length 50um)，block （50um*50um）To repair the mist of polarizing film containing the LCD panel
2.Image photographed, archive and upload
Chính sách bán hàng
Thông tin chi tiết
1.Point，line (length 50um)，block （50um*50um）To repair the mist of polarizing film containing the LCD panel
2.Image photographed, archive and upload
3.Dual display electronic brake light red and red box
4.Light gate size and the parameters of the lens ratio and laser power storage and use
5.No fuse protection circuit breaker protection
|
1 |
Working environment temperature |
20℃~30℃±5℃ |
|
2 |
Work environment relative humidity |
65 + / - 5% RH |
|
3 |
Laser types |
Nd-YAG LASER |
|
4 |
Wave length |
1064/532 nm double wavelength (532 nm for adjust the optical wavelength) |
|
5 |
Pulse |
Q-Switch 5n /seconds |
|
6 |
Output power |
800uJ/Pulse(100 times AVG) |
|
7 |
Vibration frequency |
1 ~ 10 Hz/seconds |
|
8 |
Objective switching system |
Mitutoyo 4 hole/electric switch mode (linear) |
|
9 |
Precision optical lens group |
5x (observed), 10x, 20x ( special for LCD repair ) |
|
10 |
Output |
21.0uJ |
|
11 |
Operating Mode |
Electronic control |
|
12 |
Adjust range |
10μm |
|
13 |
Light Mode |
Long/square is adjustable |
|
14 |
Working range |
905mm*1535mm*50mm (XYZ axis) |
|
15 |
X, Y effective stroke |
907mm*1538mm |
|
16 |
Z axis range |
51mm |
|
17 |
Computer system |
Racks of computer, image acquisition card, Graphics Card
|
|
18 |
LCD monitor |
The 15 " Monitor |
|
19 |
Image Capture |
SXT 403 DC12V |
|
20 |
Magnification |
400、800、1600 multiple |
|
21 |
Light source |
Adjustable , coaxial light sources , light spot and LED backlight module |
|
22 |
Input power |
AC power 220V , 50~60Hz，25A |
|
23 |
Air pressure
|
0.4 mpa |
|
24 |
Warranty |
1 year ( not include the consumable parts ) |
