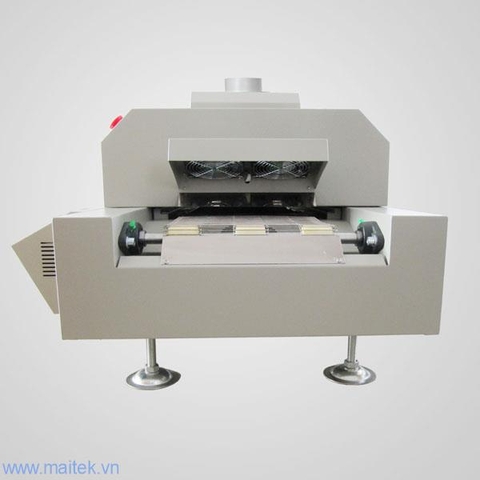

Lò hàn băng tải Puhui T-960

Mã sản phẩm: T-960
40.000.000₫
Số lượng

1


Chính sách

Giao hàng toàn quốc

Bảo hành 12 tháng theo tiêu chuẩn nhà sản xuất

Thêm vào giỏ Mua ngay

Cam kết

Hàng mới 100%, chính hãng sản xuất.

Cung cấp đầy đủ chứng từ, hóa đơn, CO, CQ theo yêu cầu

Giao hàng miễn phí toàn quốc với đơn hàng >10 triệu

Hỗ trợ tư vấn, kỹ thuật 24/7

Chi tiết sản phẩm

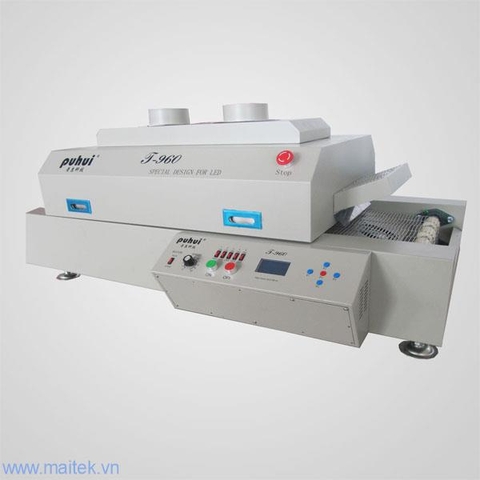

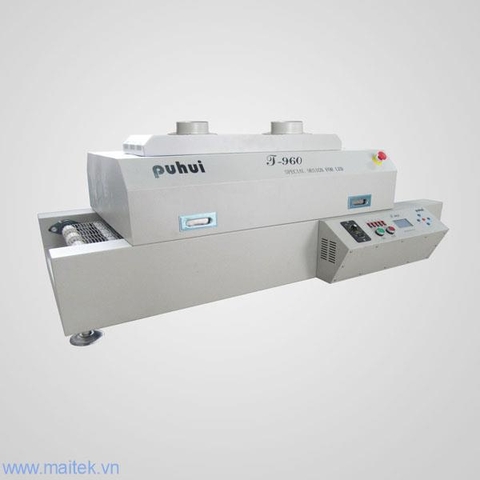

T-960 LED NEW LIGHT SOURCE REFLOW OVEN



Product Features:

★. (1) This machine selects the intelligent level sirocco and rapid infrared heating technology controlling, equipped with special design wind wheel, speed stability and uniform temperature, suit for uninterrupted soldering the LED and BGA components.

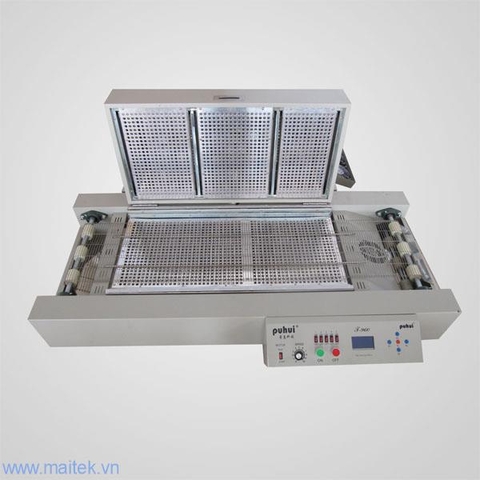

★. (2) This machine is equipped with the crawler-type and five temperature area heating systems, and each temperature area uses independent PID controlling and up-down heating type, can make the inside temperature more accurate and well-proportioned, just take about 15 minutes can let it heat up to the working temperature from the room temperature.

★. (3) Intelligent temperature wave heating type, oversized capacity wave selection, has eight temperature waves can satisfy various welding technological requirements.

★. (4) Use programmable technology, preset the temperature wave memory storage function, can complete the whole welding process automatically according to your presetting wave.

★. (5) Adopt the thermocouple temperature measurement and add the compensation circuit, make the temperature measurement more accurate, the wave more perfect.

★. (6) Use PID intelligent temperature control technology; make the temperature control more accurately. Adopt the imported large current solid-state relay non-contact output can effectively avoid the IC or circuit board damage due to the rapid or uninterrupted warming up, make the whole welding process more scientific safety.

★. (7) Transmission system adopt imported frequency conversion motor, PID closed-loop speed, equip with all the import 1:150 turbine speed reducer, smooth operation, speed adjustable range 0-1600mm/min.

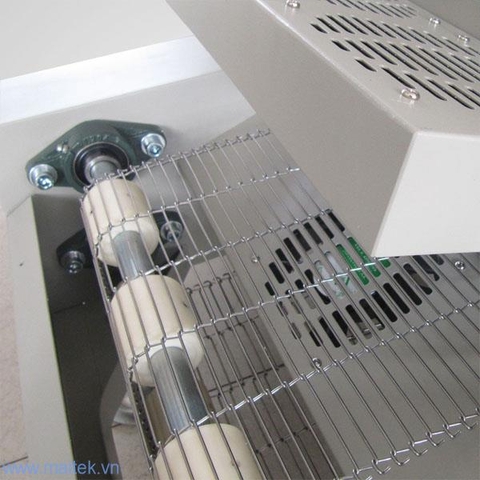

★. (8) Adopt independent wheel structure and special stainless steel strut, durable wear-resisting runs smoothly, speed precision can reach + 10mm/min.

★. (9) Independent cooling zone, to ensure the PCB board of low temperature when the required.

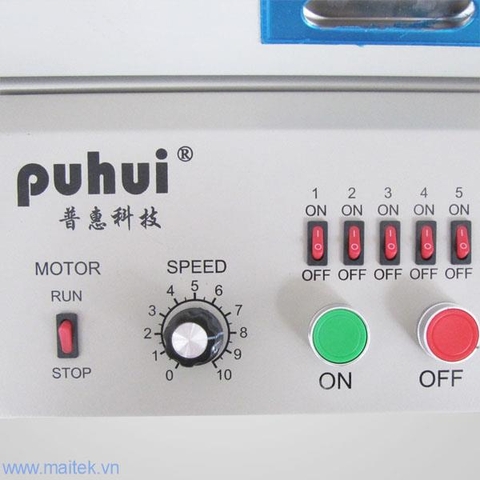

★. (10) Friendly human-machine operation interface, perfect LCD display, no need to connect with the PC, can watch the whole repairing process very clearly.

★. (11) Ergonomic design, practical and easily operated. Good build quality but at the same time light weight and a small footprint allows the T-960 to be easily bench positioned, transported or stored.

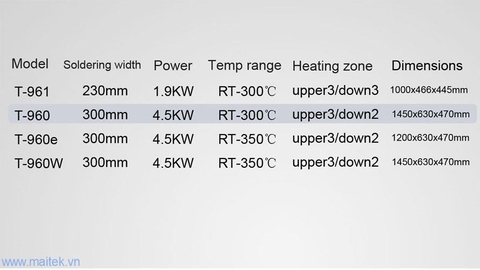

Technical Parameters:

● The heating zone quantity: upper3/down2

● The length of the heating zone: 960mm

● The heating type: intelligent level sirocco and rapid infrared heating

● The cooling zone: quantity 1

● Maximum width of PCB board: 300MM

● The operation direction: left→right

● Delivery Options: Net transmission + chain transmission

● The speed of conveyer belt: 0-1600mm/min

● The power supply: Three phase 5 line  380V  50/60Hz

● Peak Power: 4.5KW

● Heating up time: Around 15mins

● Temperature control range: Room temperature~300℃

● Temperature control mode: PID closed-loop control

●Temperature control accuracy: ±3℃

● PCB temperature distribution deviation: ±2℃

● Overall Dimensions: 1450×630×470

● Machine Weight: 90KG



Main parts

■ Complete machine 1

■ Power line 1

■ User manual(Compact disc) 1
