T-962 DGC INFRARED IC HEATER
180×235mm Area with Digital Control
REFLOW WAVE OVEN

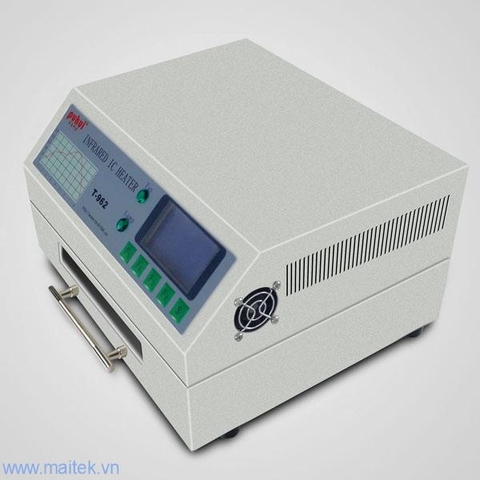

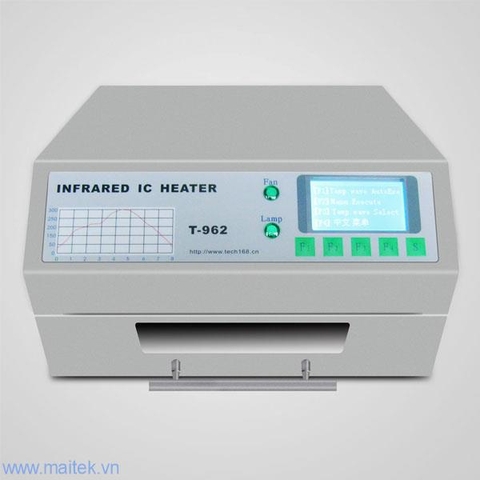

The INFRARED IC HEATER T962 is a micro processor controlled reflow-oven. It can be used for effectively soldering various SMD and BGA components. The whole soldering process can be completed automatically and it is very easy to use. This machine uses a powerful infrared emission and circulation of the hot air flow, so the temperature is being kept very accurate and evenly distributed.

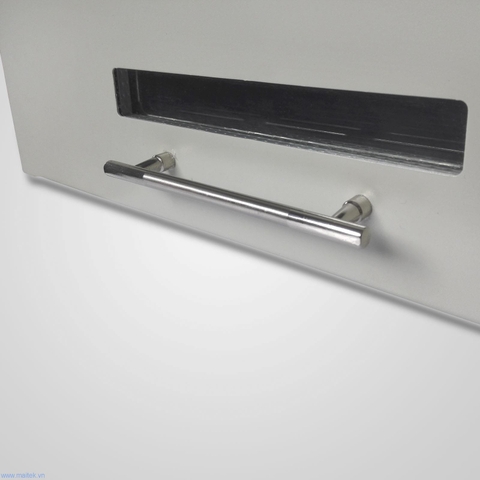

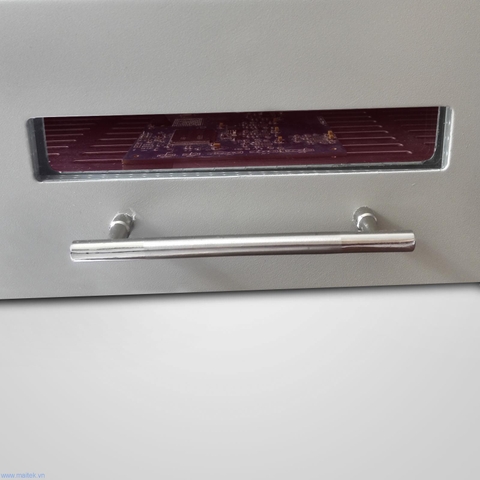

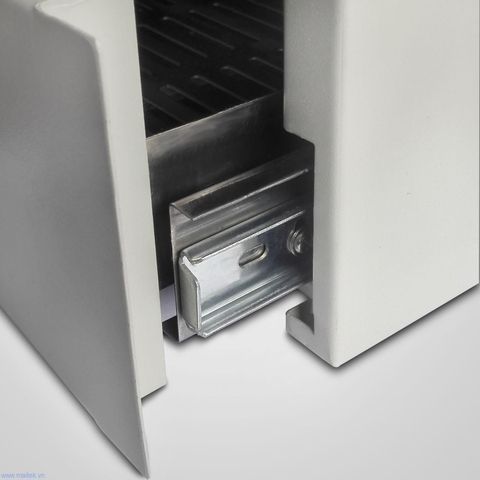

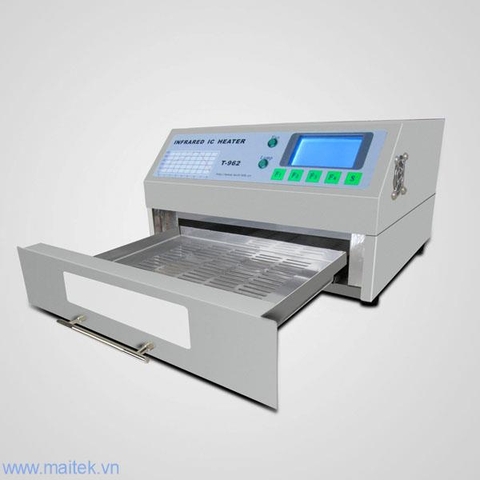

A windowed drawer is designed to hold the work-piece, and allows safe soldering techniques and the manipulation of SMDBGA and other small electronic parts mounted on a PCB assembly. The T962 may be used to automatically rework solder to correct bad solder joints, remove / replace bad components and complete small engineering models or prototypes.
★. (1) A large infrared soldering area
Effetive soldering area: 180×235mm;this increases the usage range of this machine drastically and makes it an economical investment.
★. (2) Choice of different soldering cycles
Parameters of eight soldering cycles are pre defined and the entire soldering process can completed automatically from Preheat, Soak and Reflow through to cool down.
★. (3) Special heat up and temperature equalization with all designs
Uses up to 800 Watts of energy efficient Infrared heating and air circulation to re-flow solder.
★. (4) Ergonomic design ,practical and easily operated
Good build quality but at the same time light weight and a small footprint allows the T962 to be easily bench positioned transported or stored.
★. (5) Large number of available funtions
The T962 can solder most boss-eyed or double-face PCB boards small parts, for example CHIP,SOP,PLCC,QFP,BGA etc.It is the ideal rework solution from single runs to on-demand small batch production.

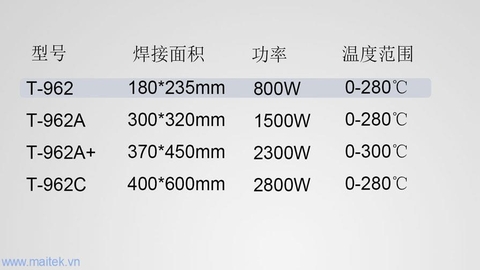

★. (6) Technical Specifications
● Maximum soldering area: 180×235mm
● Size: 31×29×17cm
● Packing Size: 36×23×36cm
● Rated Power: 800W
● Processing Time: 1~8min
● Power Supply: AC220V/52HZ
● Net Weight: 6.2kg
● Gross Weight: 7.5kg
