Lò hàn Puhui T-961

Mã sản phẩm: T-961
41.000.000₫
Số lượng

1


Chính sách

Giao hàng toàn quốc

Bảo hành 12 tháng theo tiêu chuẩn nhà sản xuất

Thêm vào giỏ Mua ngay

Cam kết

Hàng mới 100%, chính hãng sản xuất.

Cung cấp đầy đủ chứng từ, hóa đơn, CO, CQ theo yêu cầu

Giao hàng miễn phí toàn quốc với đơn hàng >10 triệu

Hỗ trợ tư vấn, kỹ thuật 24/7

Chi tiết sản phẩm

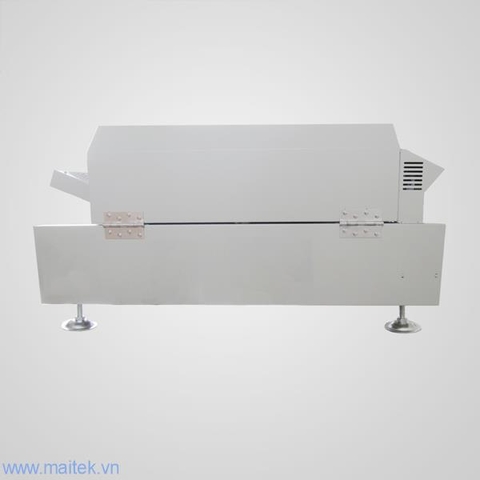

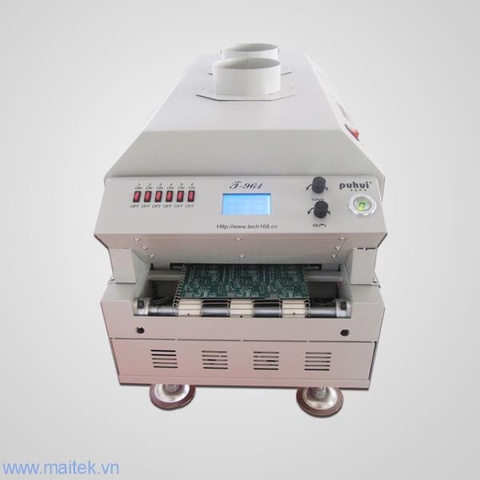

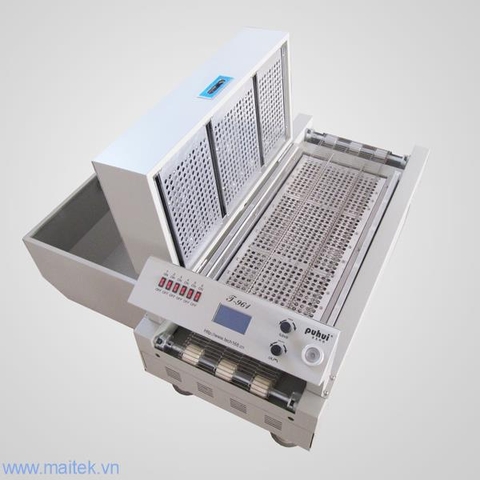

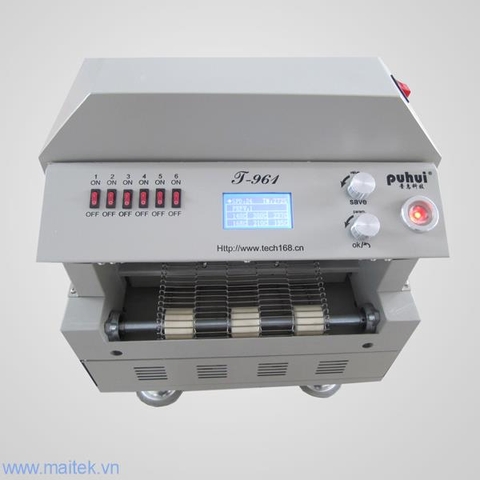

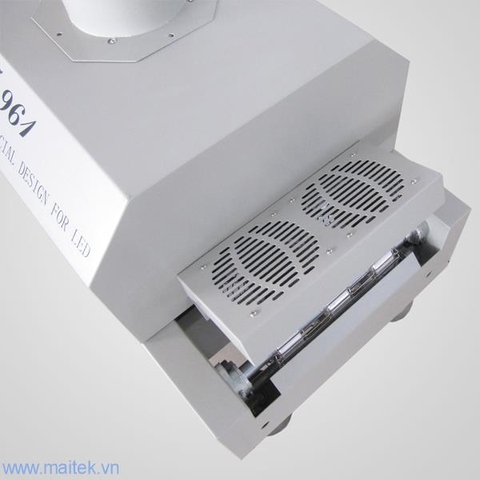

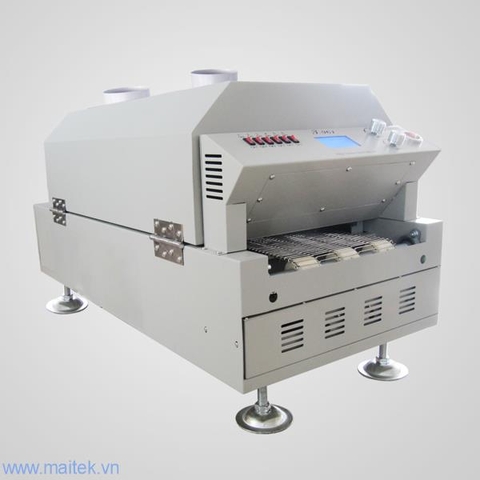

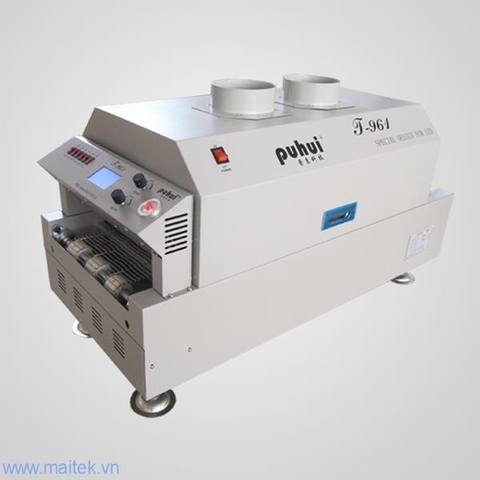

Hottest! T961 Mini SMT Reflow Oven

230*730mm 6 Zones 3.5KW Soldering Machine

Special desgin for LED





Technical Paramater for T961:

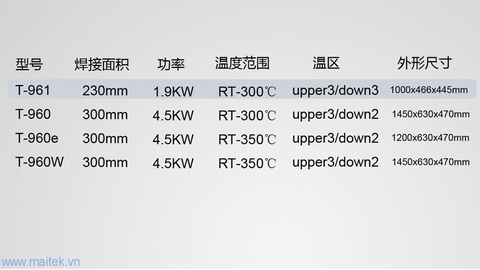

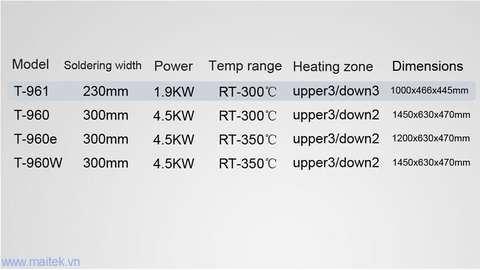

Model

T-961

The heating zone quantity

upper3/down3

The length of the heating zone

730mm

The heating type

intelligent level sirocco and rapid infrared heating

The cooling zone quantity

1

Maximum width of PCB board

230mm

The operation direction

left→right

Delivery options

Net transmission&chain transmission

The speed of conveyer belt

0-290mm/min

The power supply

220V  50/60Hz

Peak power

3.5KW

Heating up time

Around 7mins

Temperature control range

Room temperature-300

Temperature control mode

PID closed-loop control

Temperature control accuracy

±1

PCB temperature distribution deviation

±2

Overall dimensions

1000×466×445mm

Machine weight

70KG





Description:

1. This machine selects the intelligent level sirocco and rapid infrared heating technology controlling, equipped with special design wind wheel, speed stability and uniform temperature, suit for uninterrupted soldering the LED and BGA components.

2. This machine is equipped with the crawler-type and six temperature area heating systems, and each temperature area uses independent PID controlling and up-down heating type, can make the inside temperature more accurate and well-proportioned, just take about 7 minutes can let it heat up to the working temperature from the room temperature.

3. Intelligent temperature wave heating type, oversized capacity wave selection, have eight temperature waves can  satisfy various welding technological requirements.
4. Use programmable technology, preset the temperature wave memory storage function, can complete the whole welding process automatically according to your presetting wave.
5. Adopt the thermocouple temperature measurement and add the compensation circuit, make the temperature  measurement more accurate, the wave more perfect.6. Use PID intelligent temperature control technology; make the temperature control more accurately.    Adopt the imported large current solidstate relay noncontact output can effectively avoid the IC or circuit board damage due to the rapid or uninterrupted warming up, make the whole welding process more scientific safety.
7. Transmission system adopt imported frequency conversion motor, PID closedloop speed, smooth operation,  speed adjustable range 0-290mm/min.8. Adopt independent wheel structure and special stainless steel strut, durable wearresisting runs smoothly, speed  precision can reach ±10mm/min.9. Independent cooling zone, to ensure the PCB board of low temperature when the required.10. Friendly human-machine operation interface, perfect LCD display, no need to connect with the PC, can watch the whole repairing process very clearly.
11. Ergonomic design, practical and easily operated. Good build quality but at the same time light weight and a small footprint allows the T-960 to be easily bench positioned, transported or stored.


Foundation for wave set:



1. The reflow soldering theory and the temperature wave

When the PCB board goes into heat up area (dry area), the solvent and gas in the solder paste will evaporate. At the same time, the flux can wet the pad and the component tip and foot. The solder paste melts, caves in and covers the pad, leading to the pad and component pins insulate the oxygen. PCB board goes into heat preservation area. PCB board and components get full preheating. In case of damaging the PCB and components when it goes into the welding area and the temperature heats up quickly. When PCB board goes into the welding area, the temperature heats up and the solder paste melts. When PCB board goes in to cooling area, the liquid solder paste the soldering points solidify. The reflow process is finished.

The temperature is the key to welding quality. The actual and the setting temperature warming slope and the peak temperature should be accordant. Before the temperature reaches 160°, please control the heat up speed in about  1°/S. If heat up too quickly, the PCB board and the components will be damaged, and the PCB board may be out  of shape. On the other side, the flux volatilizes too fast. And it is easy to make soldering tin ball. Set the peak temperature 20°-40°higher than the solder paste melting point. Set the reflow time 10S~60S. If the peak temperature is low or the reflow time is short, it will affect the welding quality, and serious is causing the solder paste does not melt. If the peak temperature is high or the reflow time is long, the metal power will be oxidized and affect the welding quality and serious is causing the component and PCB board damaged.
2. The set of the temperature wave

Set the wave according to the solder paste and the above foundation. Different solder paste, choose and set different waves. In addition, the temperature wave has related to the PCB, the density and size of components. Generally lead free welding temperature should be higher 40° than melting point.
