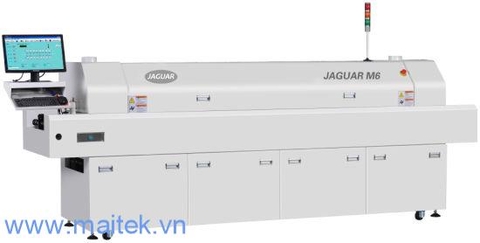

Lò hàn reflow Jaguar M6

Lò hàn reflow Jaguar M6
Tình trạng: Còn hàng |Thương hiệu: Jaguar
Loại: Lò hàn
Nội dung đang cập nhật...
7.200
Số lượng:
Ưu đãi Ưu đãi
Với các khách hàng đã từng mua hàng tại MAITEK CO.,
Với các khách hàng lần đầu mua hàng tại MAITEK CO.,
Chính sách bán hàng
Hàng chính hãng, bảo hành toàn quốc
Hàng chính hãng, bảo hành toàn quốc
Cung cấp đầy đủ chứng nhận CO, CQ
Cung cấp đầy đủ chứng nhận CO, CQ
Gọi lại trong 10 phút từ khi nhận liên hệ
Gọi lại trong 10 phút từ khi nhận liên hệ
Giao hàng toàn quốc nhanh chóng
Giao hàng toàn quốc nhanh chóng
Hỗ trợ dịch vụ 24/7
Hỗ trợ dịch vụ 24/7
Hỗ trợ mua hàng
Hỗ trợ mua hàng 0906182358

Thông tin chi tiết

Lò hàn reflow Jaguar M6

Tech-Specifications:

No.1 The unique advanced long life heating system

1.The heating system adopt the Swedish nickel heater with efficiency and energy-saving. The peak wave length of the radiation power is 4UM with curved surface reflector to the rising temperature speed, improve the thermal efficiency. And the special forced-air circulation system make PCB and the component heated uniform and eliminate the "shadow effect" completely .

2.Using special high temperature resistant protection system in heating preservation system and special iron in furnace .

3.Using imported Taiwan SanYue long axis of high temperature fan motor and W shaped heat pipe, Model design, no noise, shockless and easy for maintenance .

4.Whole oven are porous aluminum transfer the hot air to guarantee the hot air evenly to the PCB .the whole top oven fixtures can open completely so that easy to clean the oven inside .

No.2 Smooth and reliable transmission system

1.The transmission system use STK adjustable speed motor imported from Taiwan matched with the 1:150 turbine reducer can running smooth ,speed range can be arrived at 0-1500mm/min.

2. Independent wheel structure support and match stainless belt to make the running smoothly and the speed precision is up to ±20 mm/min .

3.Special stainless belt: durable and wear-resistant, not easy to deform and long life.

No.3 Stable and reliable electrical control system

1.It adopts imported thermostat control which owns fuzzy control and PID intelligent precision control system.It can fast response the changes in external heat and ensure more temperature balanced by PID intelligent operation and automatic control heating .

2. Using thermocouple imported from Taiwan by each temperature zone, it can fast and sensitive induct the changes in each temperature zone, transfer and control timely, compensate the temperature balance in each zone .

3 .Special SSR solid state relay matched with dedicated radiator improve the heat efficiency greatly and prolong the lifetime effectively. No contact output and fuzzy control function by thermostat, can monitoring the changes of outside temperature and calorific value, controlling the heating device by minimum pulse, ensuring the high precision of the temperature control & the uniform temperature in internal and the length ,direction, temperature distribution, all of these meet IPC standards .

4. Power is abundant, heat up fast, it’s only need 20 minutes from room temperature to constant temperature.

5 .Failure diagnosis and sound light alarm.

6.Delay shutdown protection function, uniform cooling after the shutdown:prevent component deformation.



Specification:

Model

JAGUAR M6





Heating System

Number of heating zones

UP 6/BOTTOM6

Number of cooling zones

1

Length of heating zones

2500MM

Heating mode

hot air

Cooling Mode

Force air











Conveyor System

Max. Width of PCB

350mm

Mesh belt width

400mm

Transmission Direction

L→R(or R→L)

Transmission Net Height

880±20mm

Transmission type

Mesh and chain

Range of rail width

0-300mm

Conveyor speed

0-1500mm/min

Auto/manual Lubrication

standard

Fixed rail side

Front rail fixed(option: rear rail fixed)

Components high

Top and bottom 25mm

















Control system

Power supply

5 line 3 phase 380V 50/60Hz

Total power

28kw

Starting power

28kw

Normal power consumption

4KW

Warming time

About 20 mins

Temp. setting range

Room temperature-300℃

Temp. control method

PLC&PC control & SSR driving

Temp. control precision

±1℃

Temp. deviation on PCB

±2℃

Data storage

Process Data and status storage(80GB)

Nozzle plate

Aluminum Alloy Plate

Abnormal Alarm

Abnormal temp. (extra-high/extra-low temp.)

Board dropped alarm

Tower light:Yellow-warming, Green-normal, Red-abnormal



General

Dimension(L*W*H)

3600×1000×1490mm

Weight

700KG

Color

Computer gray
