Neoden Technology Corp.LTD

Lò hàn SMT NeoDen IN6

Mã sản phẩm: Chưa rõ
Liên hệ

Chính sách

Giao hàng toàn quốc

Bảo hành 12 tháng theo tiêu chuẩn nhà sản xuất

Cam kết

Hàng mới 100%, chính hãng sản xuất.

Cung cấp đầy đủ chứng từ, hóa đơn, CO, CQ theo yêu cầu

Giao hàng miễn phí toàn quốc với đơn hàng >10 triệu

Hỗ trợ tư vấn, kỹ thuật 24/7

Chi tiết sản phẩm

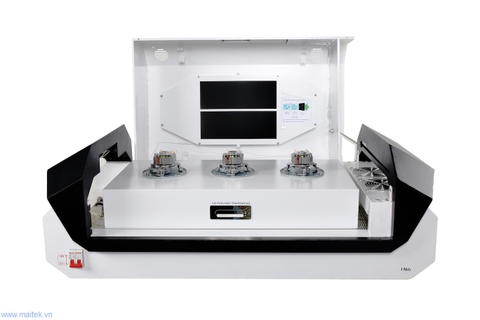

NeoDen IN6 conveyor reflow oven

NeoDen IN6, a desktop reflow oven, using new technology of dynamic warming-up control system to ensure stable temperature. With a no tubular heater, the whole heating chamber is uniformly heated, and built with all-aluminium alloy material.

IN6 has built-in soldering smoke filtering system, which do not need traditional smoke tube any more.

IN6 solders PCB in full convection way which could make sure the components heated evenly and it supports most normal components, LED and kinds of IC.

Features:

  • Full convection, excellent soldering performance.
  • 6 zones design, light and compact.
  • Smart control with high sensitivity temperature sensor, the temperature can be stabilized within +0.2℃.
  • Original high-performance aluminum alloy heating plate instead of heating pipe, both energy-saving and high-efficient, and transverse temperature difference is less than 2℃.
  • Original built-in soldering smoke filtering system, elegant appearance and eco-friendly.
  • Heat insulation protection design, thecasing temperature can be controlled within 40℃.
  • Household power supply, convenient and practical.
  • ESD tray, easy to collect PCB after reflowing, convenient for R&D and prototype.
  • Several working files can be stored, freely switch between Celsius and Fahrenheit, flexible and easy to understand.
  • Japan NSK hot-air motor bearings and Swiss heating wire, durable and stable.
  • Reinforced heavy-duty carton package, light-weight and environment-friendly.
  • PCB soldering temperature curve can be displayed based on real-time measurement
  • Approved by TUV CE, authoritative and reliable.

Specification:

Name


Reflow Oven IN6

Power
110/220VAC 1-phase
Peak Power
2000W
Heating Zones
Upper3/down3
Cooling zone
1
Heating type
Nichrome wire and aluminum alloy heating
Conveyor speed
15 - 60 cm/min (6 – 23 inch/min)
Standard Max Height
30mm
Operation direction
left→right
Temperature
Room temperature~300℃
Temperature control accuracy
±0.5℃
PCB temperature distribution deviation
±1℃
Soldering width
260 mm (10 inch)
Length process chamber
680 mm (26.8 inch)
Heat-up time
approx. 15 min.
Dimensions
1020 x 507 x 350 mm
Packing size
1120x620x551mm
Net weight
49 kg
Gross weight
57 kg
