System Summary

Footprint

2595(W)×1392(D)×1992(H)mm

Machine Weight

1900 kg (X-Ray) /   700kg (Conveyor)

Power Supply

AC 110~220V, 50/60Hz

Plywood Packing Size

180(W)×170(D)×190(H)cm   (X-Ray) 150(W)×105(D)×120(H)cm (Conveyor)

Packing Weight

2000kg (X-Ray) / 800kg   (Conveyor)

Power Consumption

3.5 kW

X-Ray Tube

Tube Type

Sealed

Max. Power

8W

Voltage

0~90kV (Adjustable)

Focus Spot Size

5μm

Imaging System

Detector

Flat Panel Detector   (FPD)

Pixel Size

85μm

Effective Detection   Area

130*130mm

Frame Rates

20fps

Pixel Matrix

1536*1536

System Magnification

200X

Software

Auto-measuring

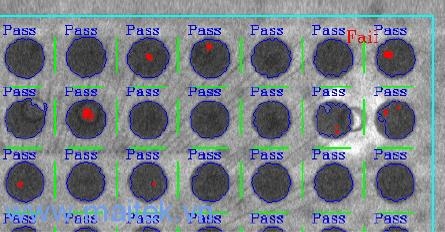

Auto Inspection and   Analysing for Ok & NG Components

CNC Mode

CNC Programmable   Inspection, Easy Operation and User Friendly

Rework

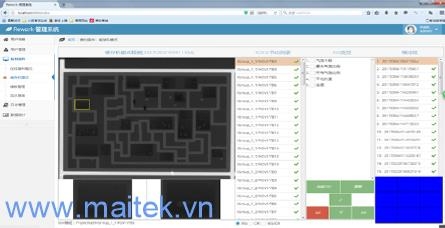

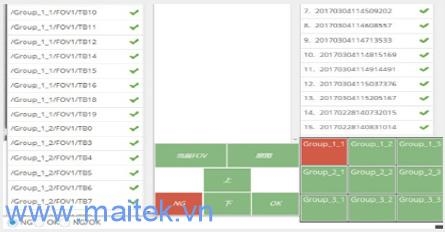

Support Rework   Database Management System

Data Connection

Support MES/ERP/SPC   System

Navigation

Convenient Target   Point Positioning System

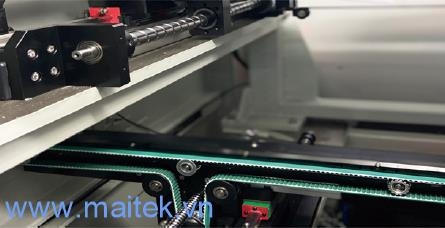

Motion Control System

Movement Control

Joystick, Keypad,   Mouse & Touch Panel (PLC)

Adjustable Tunnel   width

80~350mm

Max. Inspection Sample

400*350mm / 10kg

Min . Inspection   Sample

100*80mm

Manipulator

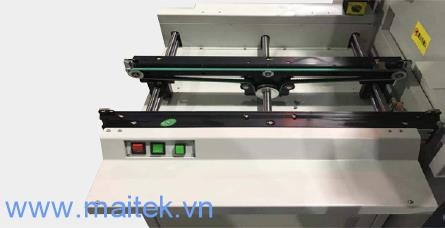

Auto Inline System

Industrial PC

Monitor

22’’ FHD LCD Display

System OS

Windows 10 64bit

Hard disk

1TB

RAM

8GB

CPU model

Intel i7 Processor

Other Features

Energy Saving

X-Ray Auto-off when   it's out of work over than 5 minutes

Safety Operation

Electromagnetic Interlock,   Warning Light

Authority Management

Password Magnagement

X-Ray Safety

<1μSv/h (Meets All   International Standards)
