Máy ăn mòn mạch in Twin-Jet

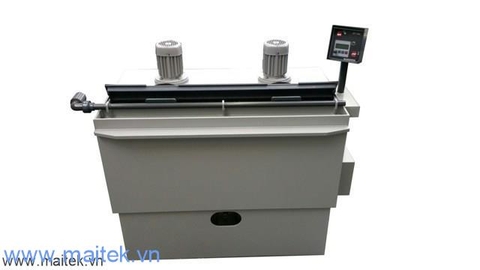

Bungard builds Twin-Jet with maximum etching format of 350 x 980 mm. This machine unites the proven Jet-components with an XXL etching format. In comparison to conveyorized etching machines the Bungard Twin-Jet convinces with a small space requirement, higher spray pressure and a fantastic price. What's more, on customer request the machine is also equipped with a fume extraction device at the opening lid.

Features:

• Maintenance free system with self-cleaning nozzles
• High spray pressure by two 0,37 KW motors
• Etching speed of 35µm Cu within 65 seconds (warm Fe-3-Cl)
• Line resolution better than 0.1 mm
• Strong 1000 W heater with thermostat and over-heat fuse
• Big lid for easy loading, with built-in security switch
• Maximum board size: 350 x 980 mm
• Carrier for fixation of small PCBs with handle outside of machine
• Easy and clean handling without etchant contact
• Over flow wash tank in the front for rinsing etched boards
• 3 cog valves (etching tank, rinse overflow, rinse inlet)
• Digital timer (0-99 minutes) with count-down, auto reset and beeper
• Sturdy construction fully made of PVC and titanium
• Suitable for all common etchants
• Also well suited for spray developing of dry film resist

Technical data:

• Dimensions W x D x H): 1100mm x 700mm x 1300mm
• Working level: 900 mm
• Power supply: 230 V~, 50 Hz, 2000VA
• Tank capacity: 50l
• Weight: 90kg
