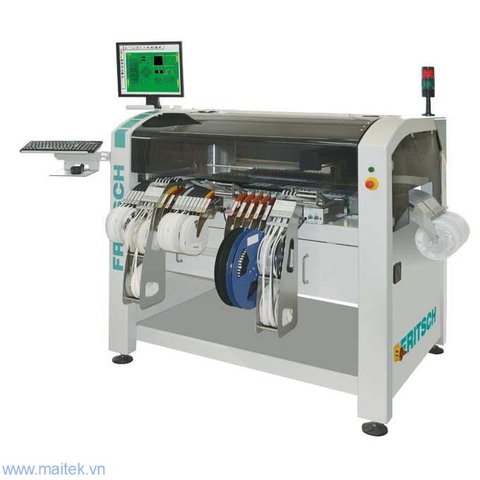

placeALL®610L

The placeALL®610L is built modular and has a larger placement area than the placeALL®610. The wide range of handled components from 0201 chips up to FP parts with 0.3 mm pitch and BGAs allows the flexible assembly of even complex projects.
With 284 feeder positions and a intelligent software, changeover times can be reduced to a minimum.
Additionally, the whole placement area can be used to assemble large circuit boards (up to 1020×450 mm).

Range of applications

Assembling and dispensing of low and medium volume SMT up to 10500 components* per hour.

*with second pick & place head

Feeding units

Feeding of components from tape, stick, tape stripe, tray and loose components.

Component capability

Chips 0201 up to Fine Pitch 80×80 mm and pitch 0.3 mm, BGAs, µBGAs, CSPs, QFNs and custom parts like connectors, wired THT-LEDs etc.

Technical Data

• 144 Slots for 8 or 12 mm single tapeFEEDER
• max. 248 positions for 8 mm tapes
• max. 2 assembling heads
• max. 2 dispensing heads
• optional dividable machine frame
• max. assembling area 920 x 370 mm with FEEDER
• platform 1918 x 1455 x 1327 mm with FEEDER
• standalone or inline
