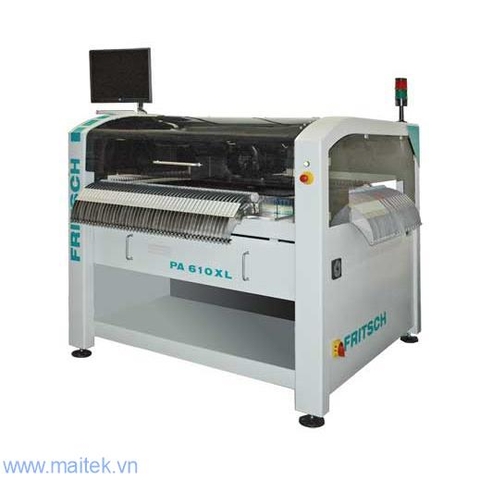

placeALL®610XL

The placeALL®610XL offers the largest space of the Serie 610.

Its dimensions of up to 1020 x 770 mm also enable the assembly of largest projects. Apart from the mere PC board surface there is enough space for numerous trays. Up to 346 different feeding positions can be provided. The available depth also allows the integration of an inline-system in the front area of the machine as well as lateral feeding units. Even in case of an inline function, there are still 262 feeding positions available as well as space for several trays.

Range of applications

Assembling and dispensing of low and medium volume SMT up to 10500 components* per hour.

*with second pick & place head

Feeding units

Feeding of components from tape, stick, tape stripe, tray and loose components.

Component capability

Chips 0201 up to Fine Pitch 80×80 mm and pitch 0.3 mm, BGAs, µBGAs, CSPs, QFNs and custom parts like connectors, wired THT-LEDs etc.

Technical Data

• 176 Slots for 8 or 12 mm single tapeFEEDER
• max. 346 positions for 8 mm tapes
• max. 2 asssembling heads
• max. 2 dispensing heads
• max. Assembling area 920 x 690 mm with FEEDER
• platform 1918 x 1770 x 1327 mm with FEEDER
• standalone or inline
