Máy gắp đặt linh kiện SM482 Plus

Mã sản phẩm: Chưa rõ

Liên hệ

Chính sách

Giao hàng toàn quốc

Bảo hành 12 tháng theo tiêu chuẩn nhà sản xuất

Cam kết

Hàng mới 100%, chính hãng sản xuất.

Cung cấp đầy đủ chứng từ, hóa đơn, CO, CQ theo yêu cầu

Giao hàng miễn phí toàn quốc với đơn hàng >10 triệu

Hỗ trợ tư vấn, kỹ thuật 24/7

Chính sách bảo hành tiêu chuẩn và gia hạn bảo hành theo yêu cầu.

Chi tiết sản phẩm

SM482
Multi-Functional Placer

▶ Speed : 30,000CPH (Optimum)
▶ Structure : 1 Gantry x 6 Spindles/Head
▶ Parts : 0402(01005")~ㅁ55mm(H15mm)
▶ Accuracy : ±40㎛@±3σ/Chip
±30㎛@±3σ/QFP
▶ PCB Size : L460xW400(Standard)
L1,200xW510(Option)

No	Class	Date	Title	Download

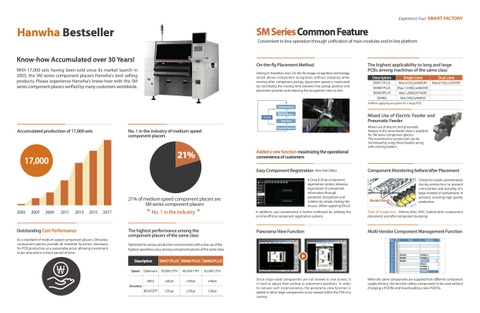

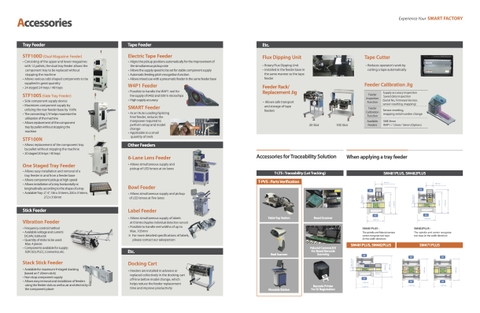

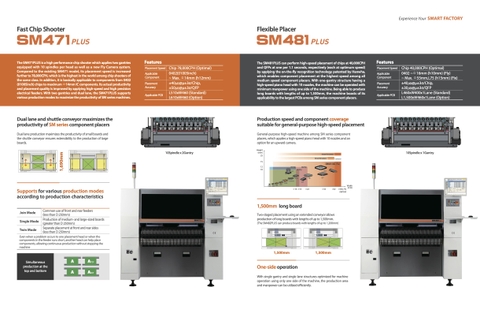

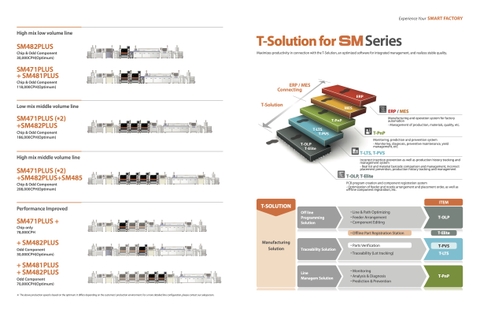

1	Catalogue	2019-05-14	SM Series_EN.pdf
