Fiber laser marking M/C2



Fiber laser marking machine is a marker for metals.
It is a carver for marking on metallic and plastic materials using cutting-edge fiber laser device from IPG Germany for easy and fast marking.

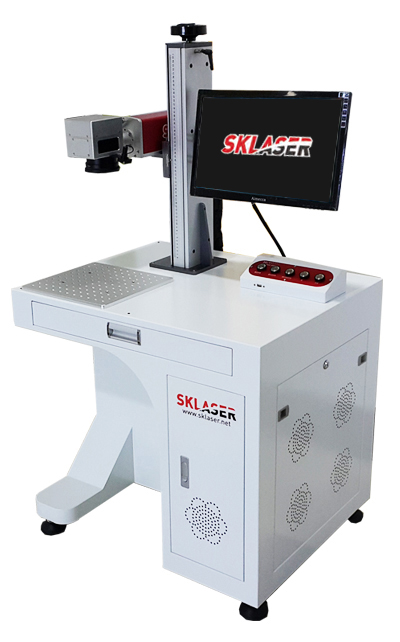

SKL-FM20WII

• Semi-permanent lifespan (100,000 hours)
• Uses laser from IPG Germany.
• Various options available
• Free A/S for 2 years
• User-friendly design
• Provides tutorial videos, manual and official WIN7.
• Compatible with various formats (AI,PLT,DXF,JPG,etc.)









Technical Data

Item Measurement
Laser wavelength 1064nm
Repetition frequency 20~200KHz
Light beam quality  <2
Marking range  170 × 170mm
Marking depth  ≤0.4mm
Marking speed  ≤ 2500ms/s
Min. line width 0.01mm
Min. character size  0.15mm
Precision ±0.002
Power supply  200V 60Hz
Power consumption 500W
Weight 70kg
OS win98, win2000, win XP, win7, win8
Cooling Air cooling
Control interface  Standard USB
File format Compatible with all typefaces and various image formats such as PLT, DXF, AI, etc.
Laser type Pulse or continuous
Max. stroke 0~700

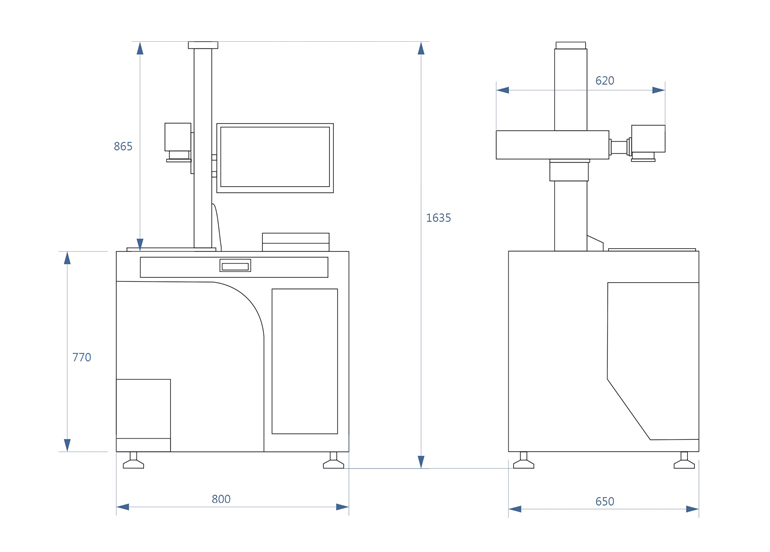

Dimensions




Applications

Mobile phones, key pads, car electrical units, plastic molds, electronic parts, medical equipments, jewelry, coated and painted products, cars, IC, silicon wafer, electronic devices, telecommunication, computers, watches, glasses, art works, decorations, etc.

▶ Suitable materials
Metals, plastics, etc.


Pot lid   Pot handle   Nut   Beauty care tool

Ring   Small label    Spoon   Stainless black marking

Car part   Watt-hour meter   Cosmetics container   Cosmetics case



Optionals:



3-inch index (jewelry)   3-inch index   4-inch index

Slide   Fly marking system   Camera marking system

X,Y jig   Dust collector   SPI laser of UK, JPT laser of China
