Máy Laser cắt PCB dẻo

Mã sản phẩm: FPC Laser Cutting Machine
Liên hệ

Chính sách

Giao hàng toàn quốc

Bảo hành 12 tháng theo tiêu chuẩn nhà sản xuất

Cam kết

Hàng mới 100%, chính hãng sản xuất.

Cung cấp đầy đủ chứng từ, hóa đơn, CO, CQ theo yêu cầu

Giao hàng miễn phí toàn quốc với đơn hàng >10 triệu

Hỗ trợ tư vấn, kỹ thuật 24/7

Chi tiết sản phẩm

FPC Laser Cutting Machine

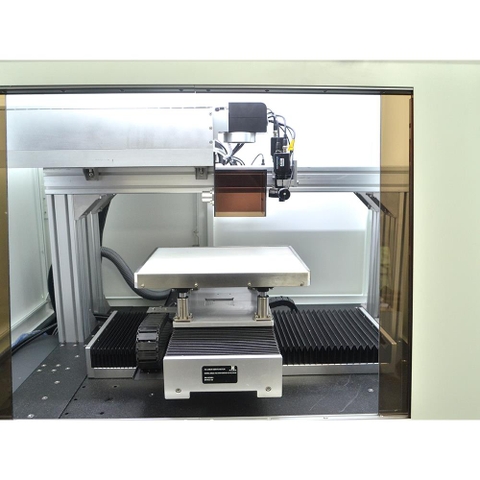

Adopted with high-performance UV laser cold light source, high-precision CCD image positioning technology and self-developed visual laser control software, the Flexible PCB laser cutting machine from HGLASER perfectly implements contour cutting, drilling and marking of FPC and PCB, and precision processing of composite membrane.

FPC Flexible PCB Laser Cutting Machine

Adopted with high-performance UV laser cold light source, high-precision CCD image positioning technology and self-developed visual laser control software, the FPC flexible PCB laser cutting machine of HGLASER perfectly implements contour cutting, drilling of FPC and PCB, and precision processing of composite membrane.



● Without models, one-step forming, save a lot of costs;
● Precision two-dimensional worktable and full closed-loop CNC system ensure the high precision of micron dimension;
● Position sensor and CCD image positioning technology;
● Automatic positioning and focusing system produce high efficiency.



FPC Laser Cutting Machines are used for processing of FPC, PCB, rigid-flex board, FR4 and cover film ,etc.

FPC Flexible PCB Laser Cutting Machine



Laser Laser Source 355 nm UV
Power 10 W
Coaxial Video Positioning B/W CCD
Scan Range 60×60 mm
Focused Spot Diameter <20 um (UV Laser)
Auto Focus System Z axis auto focus
Focus Control Precision 0.01 mm
Main structure configuration X-Y Working Platform Ac servo motor
Base High-precision granite platform
Travel Range 300×400 (Optional size range)
Platform Motion Resolution 0.5 um
Overall Control System IPC
Assisted Control System Mitsubishi PLC
CCD Lighting Source 620 nm red light LED
External Auxiliary Device Negative pressure air blower, dusting system
Processing Characteristics Processing Size Range 360×460 mm
Min Linear Width 20 um
Stitching Accuracy ±5 um
Scanning Head Correction Accuracy ±5 um
X-Y Table Correction Accuracy ±4 um
CCD Matching Accuracy 7 μm
Processing Accuracy ±4 micrometers
Processing Thickness <1 mm
Environmental Conditions Power Supply AC 220V±10%,50HZ,1P,3KVA
Fixture Customize to the needs
Document Format DXF, GBR, etc.
Environment Temperature 15-30°(constant temperature for high precision)
Environment Humidity <50%
Weight 1500KG
Mainframe Size 1350mm(W) ×1050mm(D) ×1950(H)
