Neoden Technology Corp.LTD

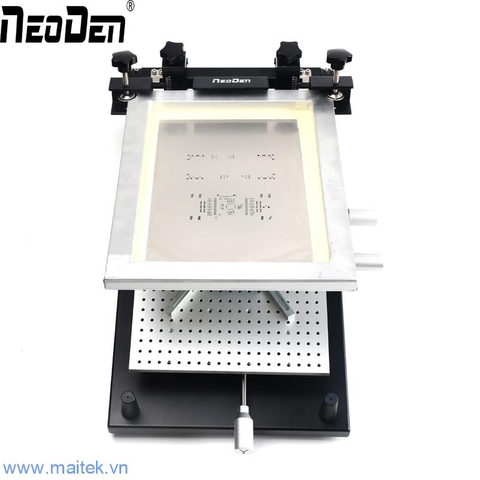

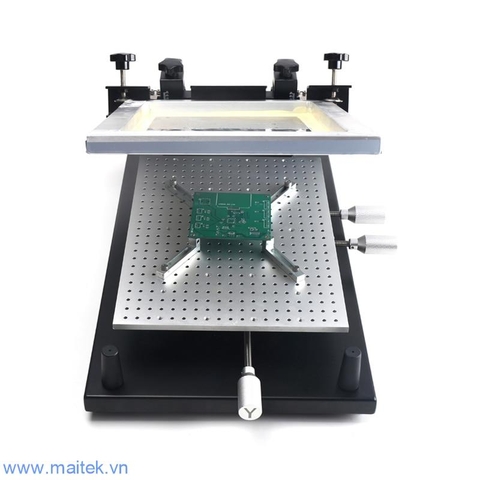

Máy quét kem hàn NeoDen FP2636 (stencil có khung)

Mã sản phẩm: Chưa rõ

599₫

Số lượng

Chính sách

Giao hàng toàn quốc

Bảo hành 12 tháng theo tiêu chuẩn nhà sản xuất

Thêm vào giỏ Mua ngay

Cam kết

Hàng mới 100%, chính hãng sản xuất.

Cung cấp đầy đủ chứng từ, hóa đơn, CO, CQ theo yêu cầu

Giao hàng miễn phí toàn quốc với đơn hàng >10 triệu

Hỗ trợ tư vấn, kỹ thuật 24/7

Chính sách bảo hành tiêu chuẩn và gia hạn bảo hành theo yêu cầu.

Chi tiết sản phẩm

Thông số kỹ thuật

Model	FP2636(Hỗ trợ stencil có khung)
PCB Size/PCB	260*360mm
Max Frame Size	500*400mm
Screen Stencil Size	260*360mm
Printing Speed	Labor control
PCB Thickness	0.5-10mm
Platform height	190mm
Repeatability	±0.01mm
Max Rotation Angle	±15 Degree
Positioning Mode	Outside/Reference Hole
Fine Adjustment Range	X/Y/Z Axis(All ±15mm)
Positioning Pin Size	1mm/1.5mm/2.0mm/2.5mm/3mm
Packing Size	660×470×245mm
N.W.	11KG
G.W.	13KG
