Bungard Elektronik GmbH & Co.KG

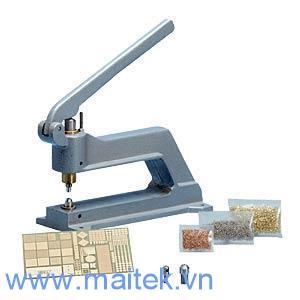

Máy tán đinh bo mạch 2 lớp Favorit

Mã sản phẩm: Favorit

Liên hệ

Chính sách

Giao hàng toàn quốc

Bảo hành 12 tháng theo tiêu chuẩn nhà sản xuất

Cam kết

Hàng mới 100%, chính hãng sản xuất.

Cung cấp đầy đủ chứng từ, hóa đơn, CO, CQ theo yêu cầu

Giao hàng miễn phí toàn quốc với đơn hàng >10 triệu

Hỗ trợ tư vấn, kỹ thuật 24/7

Chi tiết sản phẩm

Máy tán đinh Favorit

Một thiết bị vận hành bằng tay, dễ dàng cho việc xuyên lỗ cơ khí. Mỗi công cụ sẽ phù hợp cho từng đường kính của rivet. Liên kết tối ưu, thậm chí không cần hàn. Favorit cho ra kết quả cao với chi phí thấp.

Bungard Favorit

Riveting

New: để xắp xếp và định vị PCB đa lớp trước khi ép, chúng tôi đưa ra loại rivet đặc biệt đường kính ngoài 3.0mm và phù hợp với Favorit.

Đặc điểm:

Điều chỉnh độ sâu.
Kích thước bo tối đa: 400 mm

Bộ tiêu chuẩn:

Bộ thiết bị tiêu chuẩn bao gồm, thiết bị ép và công cụ
Bao gồm 1 x 1000 rivets
1 bộ công cụ
Xin hãy yêu cầu chi tiết đường kính trong mong muốn.

Lựa chọn:

Các loại tool và rivet khác nhau luôn có sẵn .
Các loại tool khác nhau được sử dụng với nhiểu loại đường kính. eters.

Đường kính trong Rivet /mm:	0,4	0,6	0,8	1,0	1,2	1,5
Đường kính khoan /mm:	0,6	0,8	1,0	1,5	1,7	2,0

Thông số kỹ thuật:

Rộng x Cao x Sâu : approx. 9,5 x 21 x 30 cm
Độ sâu họng: 200 mm
Trọng lượng: approx. 4 kg

Thay tool và điều chỉnh.
