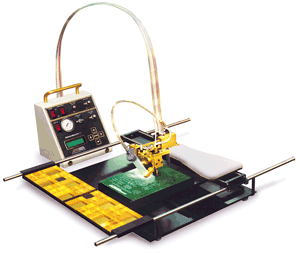

Component placement is accomplished by the operator moving the manual pick & place head over the component, picking up the component with vacuum pick up tool, moving to the component placement position, aligning the component and placing the component on the board.
|Max board size||14" x 14" (356mm x 356mm)|
|Smallest component capability||0201 component|
|Largest component size||1.378" (35mm) square body|
|Max placement rate||400 components per hour|
|Overall dimensions||27.5" x 30" x 9" (700mm x 762mm x 230mm)|
|Dispenser Option||4-Mode programmable dispenser|
|Annual Duty Cycle||TBD|
