Puhuit

Trạm hàn BGA Puhui T-862++

Mã sản phẩm: Chưa rõ

7.500.000₫

Số lượng

Chính sách

Giao hàng toàn quốc

Bảo hành 12 tháng theo tiêu chuẩn nhà sản xuất

Thêm vào giỏ Mua ngay

Cam kết

Hàng mới 100%, chính hãng sản xuất.

Cung cấp đầy đủ chứng từ, hóa đơn, CO, CQ theo yêu cầu

Giao hàng miễn phí toàn quốc với đơn hàng >10 triệu

Hỗ trợ tư vấn, kỹ thuật 24/7

Chi tiết sản phẩm

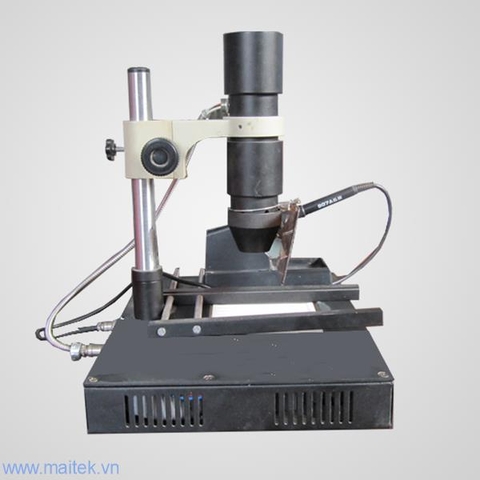

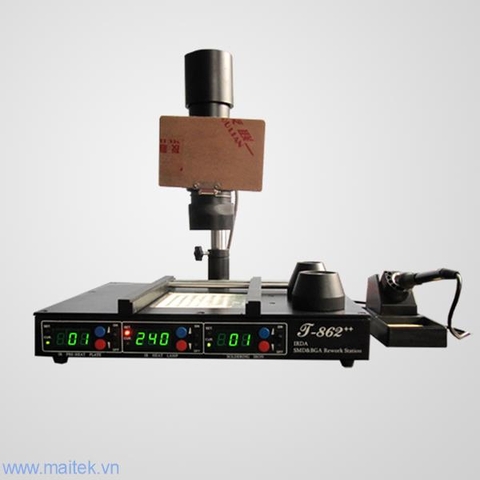

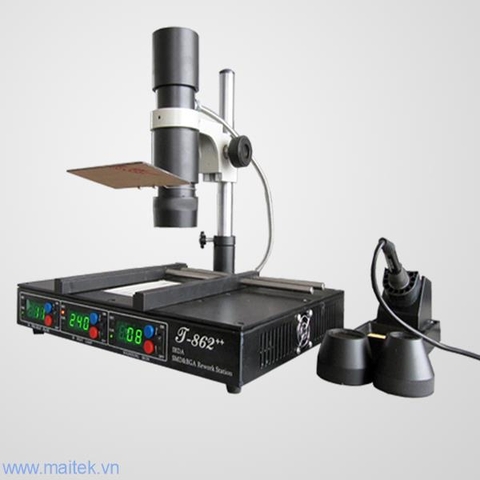

T-862++ DGC 3IN1 DIGITAL INFRARED SYSTEM

BGA/IRDA/IFR/SMD/SMT WELDER

ADVANCED REWORK REFLOW SOLDERING STATION

USES: LAPTOP BOARDS - VIDEO COMPONENTS - 3D CHIPS - 20 TO 35 MM

Check this Video about this Station

Features

★. (1) Use of infrared welding technology which is developed independently.

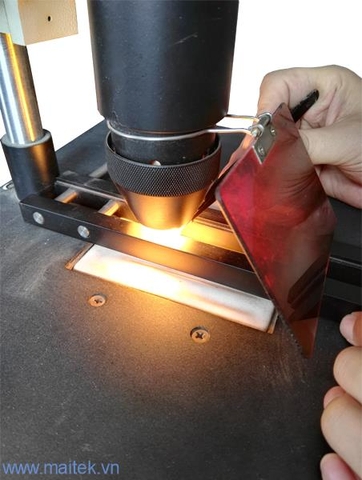

★. (2) Use of an infrared heat lamp. Heat is easy to pierce and distribute evenly,which overcome disadvantage (burn out elements) of traditional welding machines.

★. (3) Easy operation. You just need one-day training and you can operate it skillfully.

★. (4) No need for unsolder tools. IRDA Welder T-862++ can unsolder all the elements between 18-34mm.

★. (5) This machine has 800W hot-melt system.Its preheating area is 120×120mm.

★. (6) Infrared heating without heated air flowing. No impact on circumjacent small elements.It is suitable for all of the elements,especially Micro BGA elements.

Technical Parameters

Working voltage	AC220V 50Hz
Output power	800W
Temperature	100ºC - 350ºC

List of content

Welder base	1
Guide rod	1
Locating ring	1
Lamp assy	1
Circuit Board(PCB) support	1
Power Cable	1

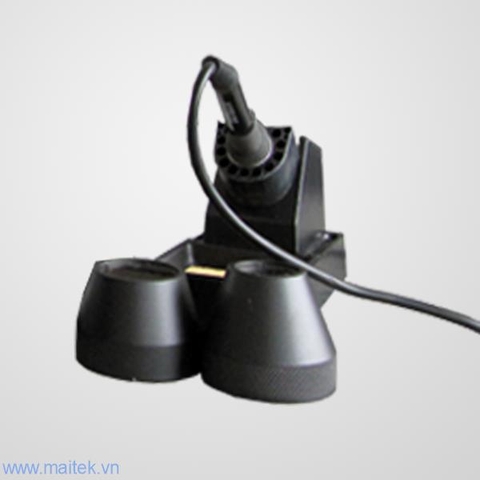

Soldering iron	1
Soldering iron support	1
User manual	1

Description of the main parts

(1) Main Body

(2) Front Panel

(3) Back Panel

(4) Focusing Support

IT DOES CHIPS UNTIL 34mm, TOPS 37mm WITHOUT LENSES. THE PLATE IS 120 * 120mm the equipment is SOLDERING IRON, IRDA HEATING PLATE AND INFRARED BEAM ONLY. IS MIDDLE CLASS PRICE, BUT WILL HAVE LENSES ON THE BOTTOM OF THE BEAM. HAS 2 LENSES TO GRADUATE TEMPERATURES. THIS MACHINE DOES YOUR HEATING SOLDERING, LAPTOPS, MEDIUM BOARDS AND ALL THE MINI ONES.
